Specifications
Brand Name :
XINYUN
Model Number :
XY-TQ-B
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
48000USD-130000USD
Payment Terms :
T/T
Supply Ability :
500 sets per year
Delivery Time :
60 days
Packaging Details :
Standard export wooden pallet
Embossing_Type :
steel to steel
Production_Speed :
200-230 m/min
Paper_Width :
1000-3000mm
Unwinding_Diameter :
1200-1500mm
Rewinding_Diameter :
80-300mm
Unwinding_Type :
pneumatic jumbo roll stand
Product_Name :
kitchen towel
Paper_Thickness :
20-30 gsm
Machine_Type :
fully automatic
Product_Type :
paper processing machine
Rewinding_Type :
air shaft
Condition :
New
Description

XY-TQ-B Good quality glue lamination small toilet paper roll making machine kitchen towel rewinding machine

Professional Kitchen Roll Machine – Trusted by South American Suppliers

Compact Kitchen Towel Rewinding Machine – Perfect for Small-Scale Producers

Outline
This high-performance machine features a core feeding unit capable of processing materials both with and without cores. The production flow begins with jumbo rolls undergoing full or edge embossing, followed by perforation, end-cutting, and tail gluing to form finished logs. These logs are then ready for integration with downstream cutting and packaging machines to produce market-ready products.

Operated via PLC-controlled touchscreen, the system delivers fully automated processing for ease of operation and reduced labor costs. Custom configurations are available to meet specific client requirements.

Key Advantages:

  1. Dual-mode core processing (with/without core)
  2. Integrated embossing (full/edge), perforation, and gluing
  3. Seamless compatibility with cutting/packaging equipment
  4. User-friendly PLC + touchscreen automation
  5. Customizable designs
The production process is: Unreeling — Embossing — Perforating— Lamination— Rewinding— Tail-gluing— Edge trimming---Automatic core loading.
Glue Lamination Small Toilet Paper Roll Making Machine Kitchen Towel Rewinding Machine

Glue Lamination Small Toilet Paper Roll Making Machine Kitchen Towel Rewinding Machine

Functions and Features --- Wall Type Automatic Rewinding Machine
1. Automatic core feeding system, automatic log pusher after rewinding, then rewinding the new log again.
2. Automatic edge-trimming, core feeding, glue spraying and sealing synchronously in one time. Leaving 10-18mm tail, easy to rewind again, so reducing shortcut waste and save the cost.
3. Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set and parametric fault shows on touch screen.
4. Adopts 4 pieces high Precision spiral knives, low noise, clear perforation, adopt gearbox to have bigger range.
5. Three horizontal type back stands, pneumatic loading system, with wide driving flat belts; each jumbo roll can be adjusted independently.
6. Embossing Unit: adopt point to point embossing rollers, making the two layers match well, the paper is soft and has clear patterns
7. Adopt jogging switches for wearing the paper, easy and safe to operate.

Glue Lamination Small Toilet Paper Roll Making Machine Kitchen Towel Rewinding Machine

Product Parameters

Technical data:

Jumbo roll max width
1850mm (Other size can be specified)
Jumbo roll diameter
Φ1200mm
Jumbo roll inner core diameter
3inches(76.2mm)
Finish product diameter
Φ70-φ280mm
Finish product Inner core diameter
φ38-φ76mm
Perforation distance
120-150mm
Production speed
180-230m/min
Parameter set
HMI, Touch Screen
Pneumatic system
3HP Air Compressor, Minimum Pressure: 5kg/cm 2Pa(Provide by user)
Unwinding transmission
Variable stepless speed regulation
Rewinding Unit
With core or coreless


Glue Lamination Small Toilet Paper Roll Making Machine Kitchen Towel Rewinding Machine
Two independent jumbo roll stands
Glue Lamination Small Toilet Paper Roll Making Machine Kitchen Towel Rewinding Machine
Glue Lamination Small Toilet Paper Roll Making Machine Kitchen Towel Rewinding Machine
Steel To Rubber Embossing Device
Glue Lamination Small Toilet Paper Roll Making Machine Kitchen Towel Rewinding Machine

Glue Lamination Device

This device is optional, and it often used in kitchen towel and maxi roll. To make paper with higher water absorption.
Glue Lamination Small Toilet Paper Roll Making Machine Kitchen Towel Rewinding Machine

Accumulator for glue laminated paper

It is for glue lamination continue running, and guarantee all paper with glue.
Glue Lamination Small Toilet Paper Roll Making Machine Kitchen Towel Rewinding Machine
Glue Lamination Small Toilet Paper Roll Making Machine Kitchen Towel Rewinding Machine
Color Printing Device
Glue Lamination Small Toilet Paper Roll Making Machine Kitchen Towel Rewinding Machine
Glue Lamination Small Toilet Paper Roll Making Machine Kitchen Towel Rewinding Machine

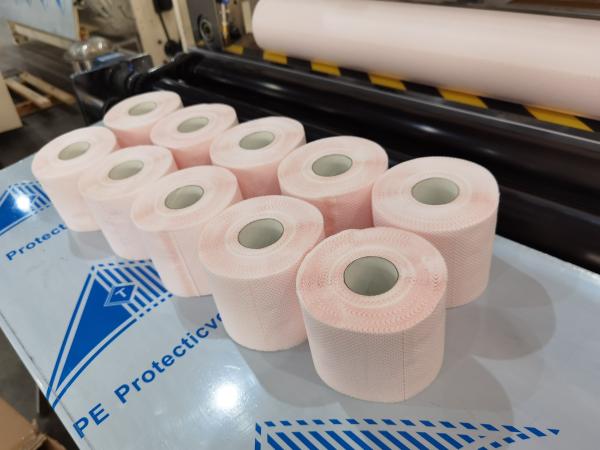

Finished product


Automatic Glue Lamination Maxi Roll Kitchen Towel Machine Production Line

There are four machines in this production line.
1) XY-TQ-B Full automatic toilet paper making machine
High speed:230 meters/minute Capacity for one day: about 2 Tons(about 20,000 rolls/8 hours)
2) XY-AI-500 Automatic maxi roll band saw cutting machine
Capacity: 15-30 rolls/min Cutting diameter:150-280mm
3) XY-TN-269 Automatic maxi roll shrink packing machine Capacity: 10-20 bags/min
4) Optional: XY-SD-B Automatic Paper Roll Core Making Machine
Capacity: 10-20 m/min
Glue Lamination Small Toilet Paper Roll Making Machine Kitchen Towel Rewinding Machine
Glue Lamination Small Toilet Paper Roll Making Machine Kitchen Towel Rewinding Machine
Glue Lamination Small Toilet Paper Roll Making Machine Kitchen Towel Rewinding Machine
Glue Lamination Small Toilet Paper Roll Making Machine Kitchen Towel Rewinding Machine


Glue Lamination Small Toilet Paper Roll Making Machine Kitchen Towel Rewinding Machine
Glue Lamination Small Toilet Paper Roll Making Machine Kitchen Towel Rewinding Machine
Glue Lamination Small Toilet Paper Roll Making Machine Kitchen Towel Rewinding Machine
Glue Lamination Small Toilet Paper Roll Making Machine Kitchen Towel Rewinding Machine
Glue Lamination Small Toilet Paper Roll Making Machine Kitchen Towel Rewinding Machine
Q: Are you trading company or manufacturer
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 60-90 days if the goods are not in stock, it is according to
quantity.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
