Specifications
Brand Name :
XINYUN
Model Number :
XY-TQ-A-H
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
60000-100000 usd
Payment Terms :
T/T
Supply Ability :
500 sets per year
Delivery Time :
60-70 days
Packaging Details :
Standard export wooden pallet
Speed :
200-230m/min
Jumbo roll width :
1350-3000mm
jumbo roll diameter :
1200mm
finished product diameter :
150-300mm
finished product :
maxi roll
color :
white
Power :
depends on model
Control System :
PLC control system
Automatic Grade :
Fully Automatic
Size :
Adjustable
Description

Fully automatic large roll fluffy kitchen towel paper maxi roll making machine production line with heat shrink wrapping machine

  1. Automatic Toilet Paper Roll Making Machine – High Efficiency for South American Manufacturers"‌
  2. ‌"Industrial Toilet Paper Production Line – Perfect for South American Tissue Businesses"

Fully Automatic Large Roll Fluffy Kitchen Towel Paper Maxi Roll Making Machine Production Line With Heat Shrink Wrapping Machine

Technical performance characteristic:
This production line consists of :
1. XY-TQ-B toilet paper and maxi roll rewinding machine
2. XY-AI-500 Full automatic maxi roll band saw cutting machine
3. XY-TN-269 Automatic maxi roll heat shrinking packing machine
From jumbo roll paper into the finished rollers, the whole line work smoothly and run stable, saving the labor cost and reducing the labor strength. It’s best choice for the producing maxi roll products.
Fully Automatic Large Roll Fluffy Kitchen Towel Paper Maxi Roll Making Machine Production Line With Heat Shrink Wrapping Machine

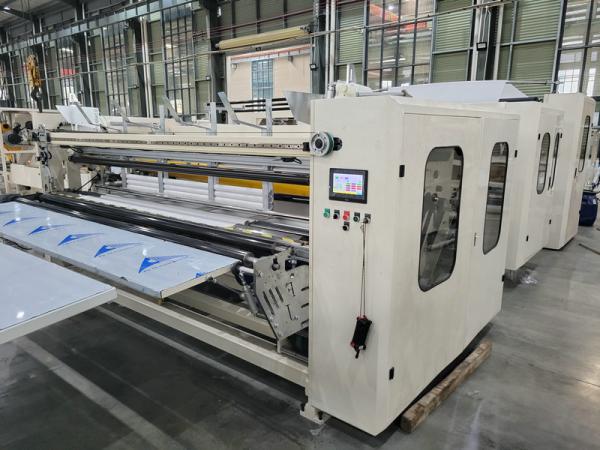

1. XY-TQ-B toilet paper and maxi roll rewinding machine

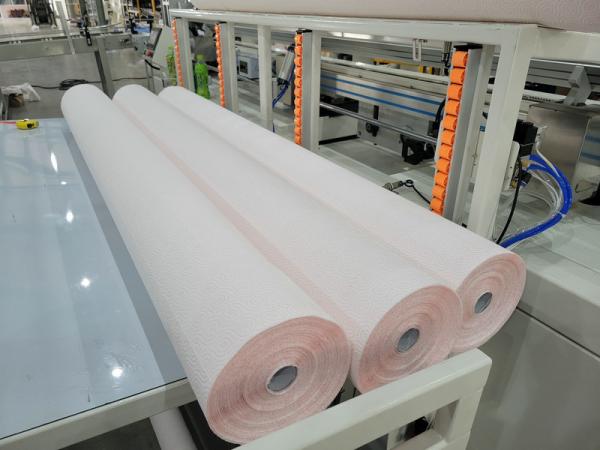

Nice design dot to dot lamination embossing kitchen towel paper rewinding machine have core feeding unit,can do both with and without core.Raw material from jumbo roll after full embossing or edge embossing, then perforation, end cutting and spray the tail glue become a log.Then it can working with cutting machine and packing machine to become the finished products. The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to operate, lower the man cost. And Our machine can special-made according to clients’ requirements.

The production process is: Unreeling — Embossing — Perforating— Lamination— Rewinding— Tail-gluing— Edge trimming---Automatic core loading.
Fully Automatic Large Roll Fluffy Kitchen Towel Paper Maxi Roll Making Machine Production Line With Heat Shrink Wrapping Machine

Fully Automatic Large Roll Fluffy Kitchen Towel Paper Maxi Roll Making Machine Production Line With Heat Shrink Wrapping Machine

Functions and Features --- Wall Type Automatic Rewinding Machine
1. Automatic core feeding system, automatic log pusher after rewinding, then rewinding the new log again.
2. Automatic edge-trimming, core feeding, glue spraying and sealing synchronously in one time. Leaving 10-18mm tail, easy to rewind again, so reducing shortcut waste and save the cost.
3. Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set and parametric fault shows on touch screen.
4. Adopts 4 pieces high Precision spiral knives, low noise, clear perforation, adopt gearbox to have bigger range.
5. Three horizontal type back stands, pneumatic loading system, with wide driving flat belts; each jumbo roll can be adjusted independently.
6. Embossing Unit: adopt point to point embossing rollers, making the two layers match well, the paper is soft and has clear patterns
7. Adopt jogging switches for wearing the paper, easy and safe to operate.



Product Parameters


Machine Model
XY-TQ-B
Jumbo Roll Max Width
2800mm (Other size can be specified)
Jumbo Roll Diameter
Φ1200mm(Other size can be specified)
Jumbo Roll Inner Diameter
3inches(76.2mm) (Other size can be specified)
Perforation Distance
4 anvil Blades(115mm)(Other size can be specified)
Finished Product Diameter
Φ90~φ280mm
Finished Product Core Diameter
φ38~φ76mm
Production Speed
200~230m/min
Program Controller
PLC( INVT )
Unwind Stands
2 Stands(Need to be specified)
Pneumatic System
3HP Air Compressor, Minimum Pressure: 5kg/cm 2Pa(Provide by user)
Main Power
14KW 380V 50HZ
Dimension
7000*4000*1900(L*W*H)
Weight
About 7T
Edge-Line Embossing
Steel to steel (Pneumatic Control)
Full Embossment
Steel to rubber.

Fully Automatic Large Roll Fluffy Kitchen Towel Paper Maxi Roll Making Machine Production Line With Heat Shrink Wrapping Machine

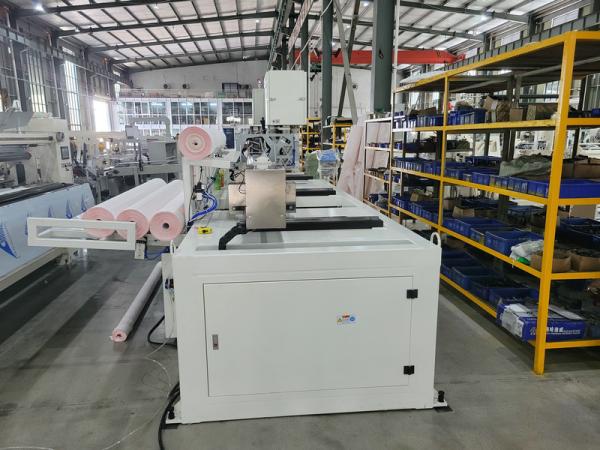

2. XY-AI-500 Full automatic maxi roll band saw cutting machine

Cutting speed
15-20cuts/minute
Cutting channel
single channel
Cutting blade
band saw blade(18,000--20,000 rolls/blade)
Cutting blade size
6390*90*1.2MM
Log length
≦2200mm or ≦2850mm
Tolerance
±2mm
Cutting length
≦300mm
Cutting diameter
150-300mm(Adjustable)
Thickness of paper core
≦3 mm
Power supply
15KW 3 phase 4line 380V 50HZ
Machine weight
2700KG
Overall size of machine
6546×2651×2635mm


Fully Automatic Large Roll Fluffy Kitchen Towel Paper Maxi Roll Making Machine Production Line With Heat Shrink Wrapping Machine

3. XY-TN-269 Automatic maxi roll heat shrinking packing machine
Model
4525L cutting and sealing machine
4525 temperature shrink machine
Power source
220V 50Hz/60Hz
380V 50/60Hz
Rated Power
1.55KW
12 KW
Sealing Size
 L800*W400*H200MM
450*220*120mm
Packing speed
20-40 Packs /min
0-10m/min
Packaging Size
L450 x W400 x H120 MM
450*220*120mm
Machine size
L1500×W750×H1360mm
L1600×W700×H1300mm
Weight
300KG
150KG

maxi roll machine,maxi paper towel machine,maxi roll production line,large roll machine,large roll production line

Fully Automatic Large Roll Fluffy Kitchen Towel Paper Maxi Roll Making Machine Production Line With Heat Shrink Wrapping Machine
Fully Automatic Large Roll Fluffy Kitchen Towel Paper Maxi Roll Making Machine Production Line With Heat Shrink Wrapping Machine
Fully Automatic Large Roll Fluffy Kitchen Towel Paper Maxi Roll Making Machine Production Line With Heat Shrink Wrapping Machine
Fully Automatic Large Roll Fluffy Kitchen Towel Paper Maxi Roll Making Machine Production Line With Heat Shrink Wrapping Machine
Fully Automatic Large Roll Fluffy Kitchen Towel Paper Maxi Roll Making Machine Production Line With Heat Shrink Wrapping Machine
Fully Automatic Large Roll Fluffy Kitchen Towel Paper Maxi Roll Making Machine Production Line With Heat Shrink Wrapping Machine
Q: Are you trading company or manufacturer
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 60-90 days if the goods are not in stock, it is according to
quantity.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
