Specifications
Brand Name :
Fujian Xinyun Machinery Development Co.,Ltd
Model Number :
XY-gu-388
Certification :
CE
Place of Origin :
China
MOQ :
1/set
Price :
USD 39,000-43,500/set
Supply Ability :
150/set/year
Delivery Time :
60 work days
Packaging Details :
Spraying antirust oil on machine surface and cover PE film,then packed by seaworthy Export Packing Wooden Pallet, ensure that the goods will safely arrive at the erection or construction site without any damage.
Description

Automatic Box Packing Machine,Tissue paper making machine

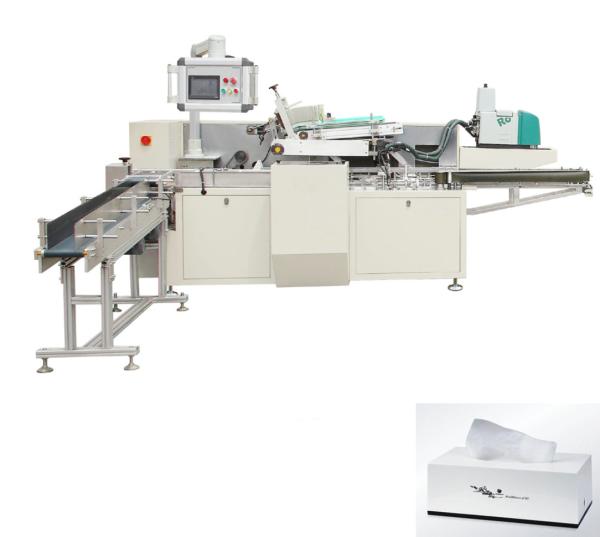

XY-GU-388 Automatic Box Packing Machine

Outline

This is new product which improved on the basis of demostic and overseas advanced technology ,it is the high-tech integration of machine combine with electricity, gas, light .Our product is widely use for facial tissue,napkin tissue packing.And it can automatic open the box,pack the tissue,print the batch number and sealing the box.The machine can connect with facial tissue machine and napkin machine as production line.

Video link : https://youtu.be/bs2hkRFA_Y8

Function and Features

1. Adopt automatic feeding, open box, insert box, coding and sealing, Reasonable compact structure, easy operation.

2. Adopt Servo motor, touch screen and PLC programmable control system, Interface display make it simple and clear, high degree of automation, humanized.

3. Using photoelectric automatic tracking system, only packing when it sense the paper, which can save packing material.

4. Wide packing range, easy to adjust, can change different size easily.

5. Change size no need to change mould, only need to adjust some buttons, PLC will show packing speed and counting.

6. If paper not in the right position, machine will automatically stop, and machine has main drive motor overload protection device, which make it safe working.

7. Upside open safety cover is optional for client, which easy operate and looks nice.

8. Low cost, use imported glue machine, 0.25mm-0.36mm, spray the glue needed.

9. Hot melt glue machine is optional for client if client use hot melt glue or mechanical brush glue sealing.

380V Automatic Tissue Paper Making Machine With PLC Controlled

Technical Parameters

Model XY-GU-388
Speed 30-80 Boxes/min
Packing Size Range Customizable
Packing Paper Requirement 250-450g/m3
Power 1.5KW
Voltage Three phase four wire 380 V, 50 Hz
Noise ≤80dB
Air Pressure 0.5-0.8 Mpa
Air Consumption 120-160L/min
Overall Dimension 3500*1300*1800 mm
Weight 1500Kg

380V Automatic Tissue Paper Making Machine With PLC Controlled380V Automatic Tissue Paper Making Machine With PLC Controlled
