Specifications
Product Type :
Paper Core Machine
processing type :
WINDING MACHINE
Place of Origin :
Zhejiang, China
Brand Name :
CHUANGFENG
voltage :
380V/3Phase/50HZ(can be customized)
power(w) :
18.5KW
dimension(l*w*h) :
4600*1950*1900MM
warranty :
1 Year
production capacity :
25meter/min
machinery test report :
Provided
video outgoing-inspection :
Provided
core components :
PLC, motor
Weight (KG) :
70000
Brands of Components :
Can Be Customized
Description
Product Description

High Output CE Certified Paper Tube Core Winding Machine with PLC Control SystemCFJG-50 Small size tube & core making machine is suitable for Toilet Paper Cores;Preservative Film Cores and other paper tubes & cores.

-- PLC controlled Automatic Paper Core Making Machine adopts Computerized Control System. All the working parameters can be setup on the controlling panel (touch screen type) .

-- Single circular blade inline cutting system with cutting range 500-5000mm.

-- All the brands of components like Motor; Inverter; PLC; Touch Screen can be customized as per your requirement.

Technical Parameters

CFJG-SK-150 Servo Controlled Paper Tube Making Machine

Technical Parameter

Control System

Paper Layer

24 Layers

Motor

18.5kw Wannan

Inner Diameter

50-250mm

PLC

Xinjie

Wall Thickness

1-15mm

Operating Panel

Panel Master

Winding Speed

1-25meters/min

Inverter

Schneider

Winding Nose

Double noses single belt

Servo Motor & Driver

Schneider

Length Fixing

By Encoder

Pneumatic Components

Jingwei

Cutting Way

Servo Synchronous Tracking Cut

Electric Components

CHNT & Schneider

Cutting Length

500-5000mm (speed will be low when cutting length<1000mm)

Bearing

Haerbin

Gluing Way

Double sides

Configuration

Shaft Fixing

by Flange

Gluing System

24 Layers

Speed Control

By Inverter

Paper Reel Stand including Paper Lifting Device

24 Layers Integral Type

Operator

1-2 persons

Working Air Pressure

0.6Mpa

Inner Paper Shelf

1 Set

Power Supply

380V/3Phase/50Hz

Discharging Shelf

1 Set

Measurement & Weight

Mandrel Shaft (mold)

2 Pieces

Measurement

4600*1950*1900mm

Belt

4 Pieces

Working Space

15000*9000mm

Useful Tool

1 Set

Weight

7000kgs

Extra blades

5 Pieces
Pictures

High Output CE Certified Paper Tube Core Winding Machine with PLC Control System

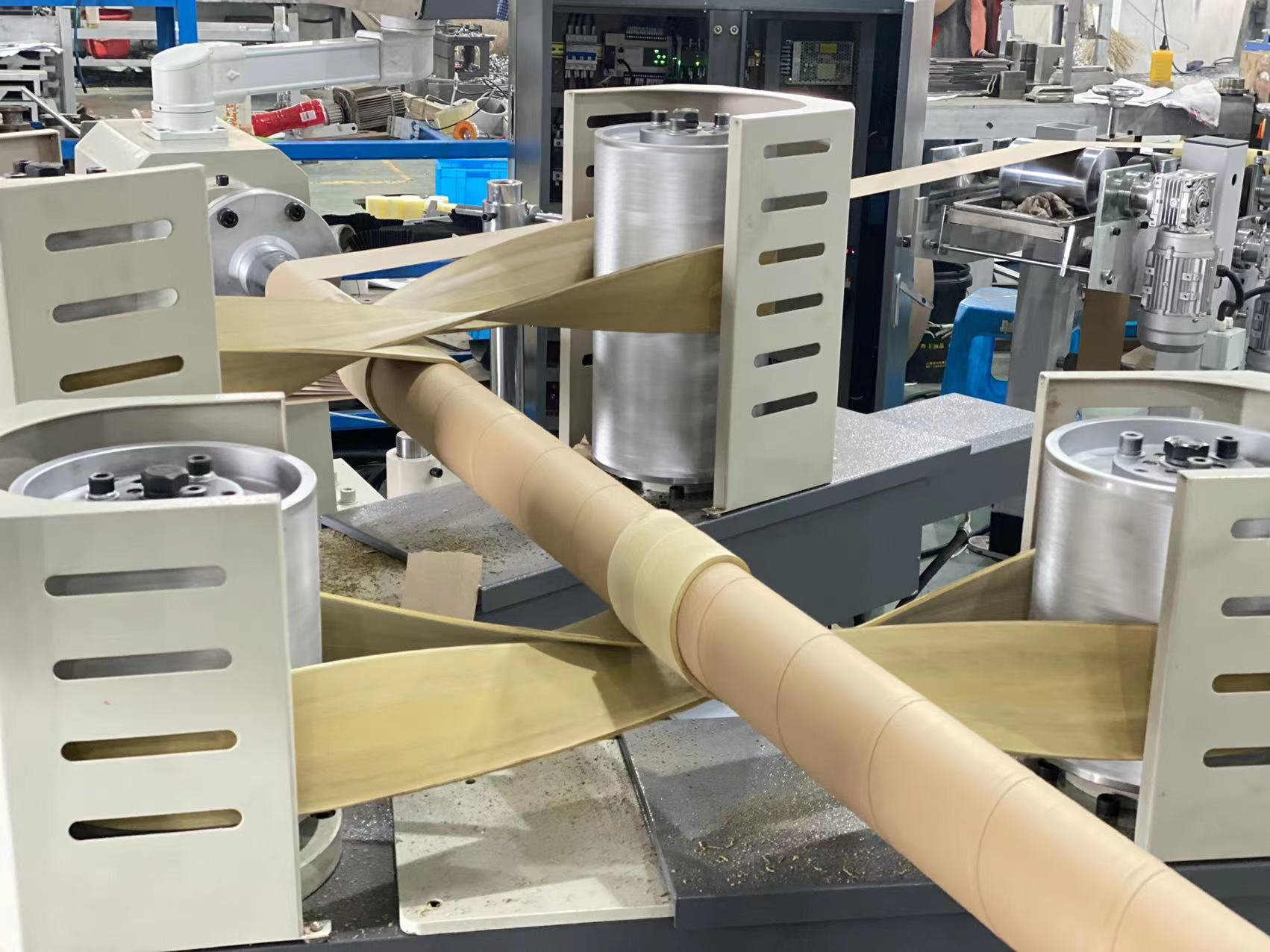

  • Four-heads Double-belts Spiral WindingHigh Output CE Certified Paper Tube Core Winding Machine with PLC Control System

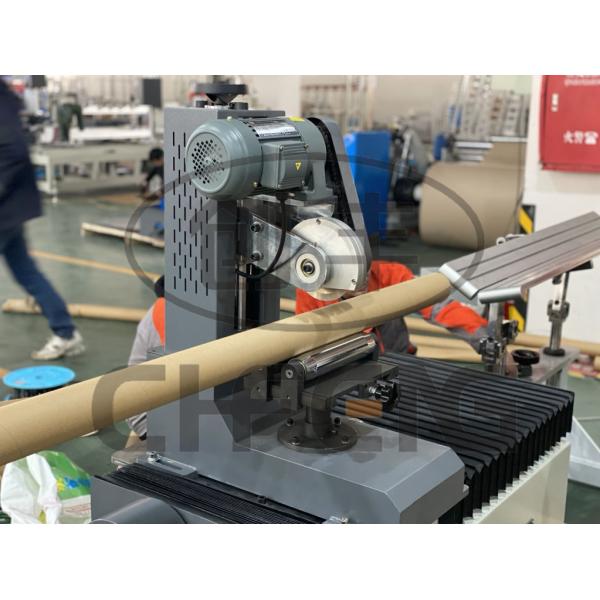

Servo Motor Controlled Cutting System; Tube Lengths no error.

Cutting Length 500-5000mm ((speed will be low when cutting length < 1000mm)

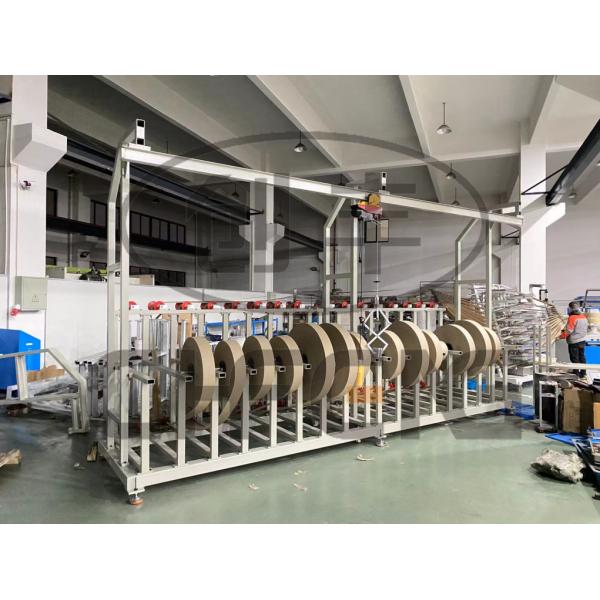

High Output CE Certified Paper Tube Core Winding Machine with PLC Control System Equipped with 24 layers paper reel stand *1set

High Output CE Certified Paper Tube Core Winding Machine with PLC Control System

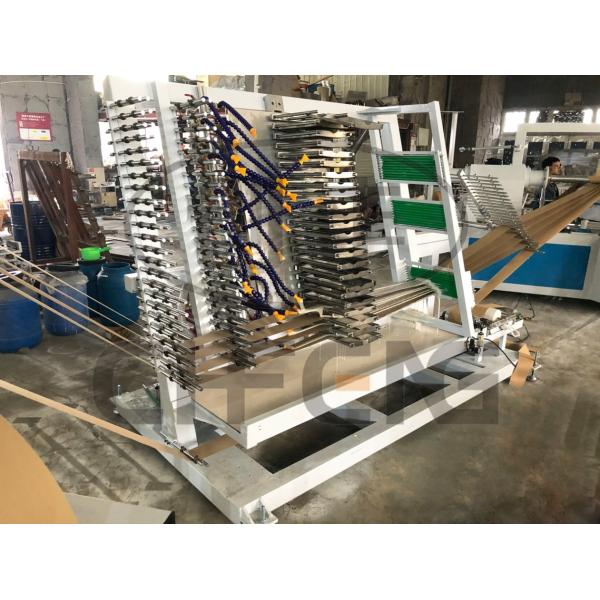

  • 24 layers spraying glue system

High Output CE Certified Paper Tube Core Winding Machine with PLC Control System

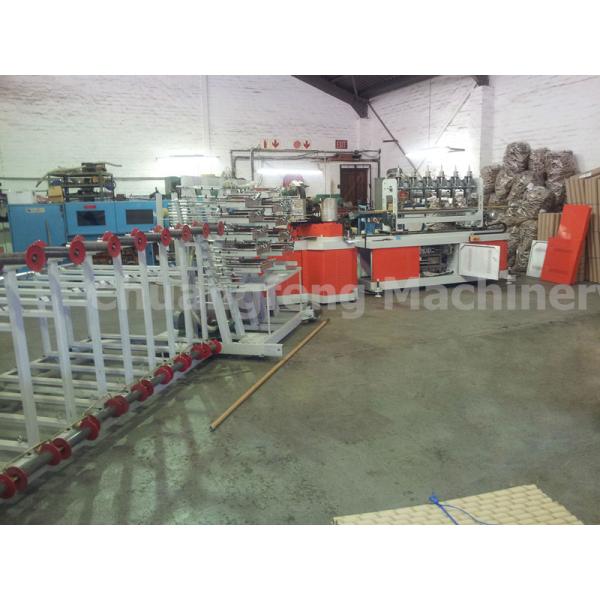

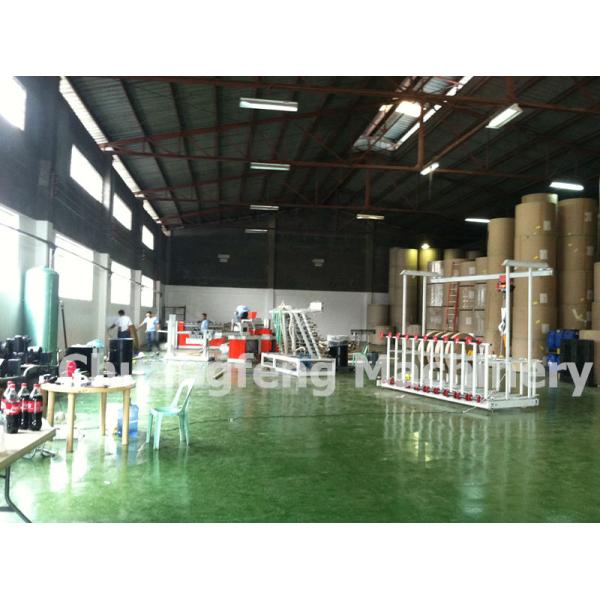

  • Machines in Customers' Workshop

High Output CE Certified Paper Tube Core Winding Machine with PLC Control System High Output CE Certified Paper Tube Core Winding Machine with PLC Control System

Finished Products

High Output CE Certified Paper Tube Core Winding Machine with PLC Control SystemHigh Output CE Certified Paper Tube Core Winding Machine with PLC Control System

company 0801

High Output CE Certified Paper Tube Core Winding Machine with PLC Control SystemHigh Output CE Certified Paper Tube Core Winding Machine with PLC Control SystemHigh Output CE Certified Paper Tube Core Winding Machine with PLC Control SystemHigh Output CE Certified Paper Tube Core Winding Machine with PLC Control SystemHigh Output CE Certified Paper Tube Core Winding Machine with PLC Control System

Q:ARE YOU THE MANUFACTURER OR TRADING COMPANY?

A:WE ARE MANUFACTURER.OUR COMPANY HAS BEEN MAKING PAPER TUBE MACHINES FOR 15+ YEARS AND PAPER STRAW MACHINES FOR 8YEARS

Q:WHAT CAN YOU BUY FROM US?

A:PAPER TUBE MAKING MACHINE,PAPER TUBE CUTTING MACHINE

PAPER SLITTER REWINDING MACHINE,FULL LINE OF PAPER STRAW MACHINES

PAPER TUBE &STRAW PRODUCING RELATED MACHINES

Q:WHAT’S THE LEAD TIME?

A:PAPER STRAW MACHINE:15-30DAYS

PAPER TUBE MACHINES:AROUND 30DAYS DEPENDS ON MACHINE TYPE.

Q:WHAT TERMS OF PAYMENT YOU ACCEPT?

A:IT IS NEGOTIABLE.MOSTLY USE T/T AND SIGHT L/C.

Q:WHAT IS YOUR AFTER -SALES SERVICE?

A:1.WE HAVE EXPERIENCED TECHNICIAN TEAM WHO CAN SUPPORT OVERSEAS

INSTALLATION&TRAINING.

2.WE PROVIDE DETAIL INSTALLATION&OPERATION VIDEOS.

3.VIDEO CALL AND ONLINE SERVICES ALSO AVAILABLE.
