1000pcs/h Semi Automatic Egg Tray Machine / Apple Tray Making Machine Simple Structure Speed Adjustable PLC Controlled
1000pcs/h Semi Automatic Egg Tray Machine / Apple Tray Making Machine Simple Structure Speed Adjustable PLC Controlled
1000pcs/h Semi Automatic Egg Tray Machine / Apple Tray Making Machine Simple Structure Speed Adjustable PLC Controlled
1000pcs/h Semi Automatic Egg Tray Machine / Apple Tray Making Machine Simple Structure Speed Adjustable PLC Controlled
1000pcs/h Semi Automatic Egg Tray Machine / Apple Tray Making Machine Simple Structure Speed Adjustable PLC Controlled
1000pcs/h Semi Automatic Egg Tray Machine / Apple Tray Making Machine Simple Structure Speed Adjustable PLC Controlled
1000pcs/h Semi Automatic Egg Tray Machine / Apple Tray Making Machine Simple Structure Speed Adjustable PLC Controlled
1000pcs/h Semi Automatic Egg Tray Machine / Apple Tray Making Machine Simple Structure Speed Adjustable PLC Controlled
1000pcs/h Semi Automatic Egg Tray Machine / Apple Tray Making Machine Simple Structure Speed Adjustable PLC Controlled
1000pcs/h Semi Automatic Egg Tray Machine / Apple Tray Making Machine Simple Structure Speed Adjustable PLC Controlled
1000pcs/h Semi Automatic Egg Tray Machine / Apple Tray Making Machine Simple Structure Speed Adjustable PLC Controlled
1000pcs/h Semi Automatic Egg Tray Machine / Apple Tray Making Machine Simple Structure Speed Adjustable PLC Controlled
Specifications
Brand Name :
Wanyou
Model Number :
WY-D
Place of Origin :
Jinan, Shandong, China
MOQ :
1 set
Price :
9000usd
Payment Terms :
Western Union,,T/T
Supply Ability :
1set/month
Delivery Time :
45 working days or as customer
Packaging Details :
in container
Name :
small pulp molding egg tray machine
Raw material :
Waste paper/Carton
Egg tray mold quantity :
1*3 molds or 3 molds
Water consumption :
225kg/h
Waste paper consumption :
75kg/h
Voltage :
380/220V
Machine type :
Reciprocating type or turn over or flip over type
Description

1000pcs/h Semi Automatic Egg Tray Machine / Apple Tray Making Machine Simple Structure Speed Adjustable PLC Controlled


This specific semi-automatic production line does not include a drying system. After the pulp-making and automatic forming processes, the wet products need to be moved to another location for drying by workers, and then they can be dried naturally under the sun.

The above mentioned production line are suitable for all kinds of paper pulp molded product.

Parameters of small pulp egg tray machine:


1. Egg tray mould quantity 3pcs
2. Raw material Waste paper
3. Output for egg tray 1000pcs/hour
4. Net weight per piece (gram) 70g-75g
5. The volume of waste paper consumed 75kg / hour
6. The volume of water consumed 225kg/h
7. Operators number 3-4workers
8. Area of workshop More than 240M²
9. Capacity of power 40KW


The production line is mainly combined by THREE PARTS:


1. Pulping system

(meaning: Use waste paper and water as raw material and pulp up) ;


1000pcs/h Semi Automatic Egg Tray Machine / Apple Tray Making Machine Simple Structure Speed Adjustable PLC Controlled

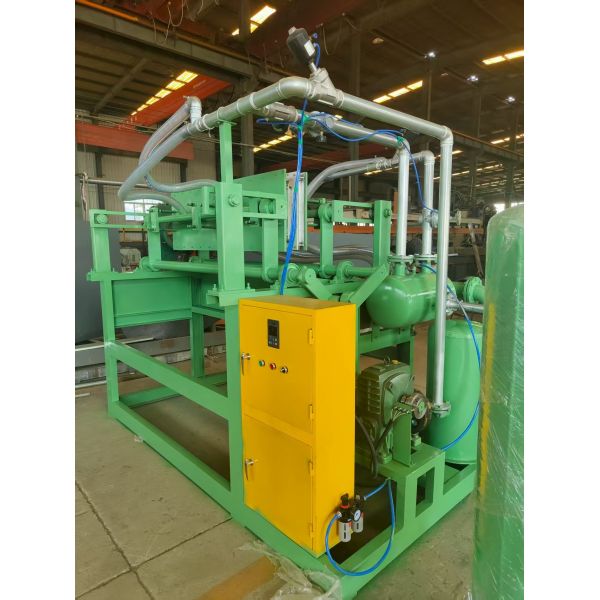

2. Egg Tray Machine Forming system

(meaning: The pulped material being delivered to Egg tray moulds, and forming to the Egg tray plate shape)



1000pcs/h Semi Automatic Egg Tray Machine / Apple Tray Making Machine Simple Structure Speed Adjustable PLC Controlled

1000pcs/h Semi Automatic Egg Tray Machine / Apple Tray Making Machine Simple Structure Speed Adjustable PLC Controlled

1000pcs/h Semi Automatic Egg Tray Machine / Apple Tray Making Machine Simple Structure Speed Adjustable PLC Controlled

1000pcs/h Semi Automatic Egg Tray Machine / Apple Tray Making Machine Simple Structure Speed Adjustable PLC Controlled

3. Egg Tray Machine Drying system

(Meaning : The formed Egg tray plate being delivered to Dryer, and come up to Completed Strong Egg tray plate) .

About the drying,you have 3 methods,by nature,by brick kiln and by metal dryer.

1000pcs/h Semi Automatic Egg Tray Machine / Apple Tray Making Machine Simple Structure Speed Adjustable PLC Controlled


Advantage : 1.capacity 350/700/1000/1300/2000/3000/4000/5000/6000pcs per hour


2.waste paper as raw materials


3.machine including making pulp unit ,moluding unit and dryer unit


4.computer PLC control

Standard configuration of small egg tray machine 1000pcs/h capacity:



 Main parts Quantity

Pulping system


Including :

mill pulp pump

water pump

pulp pump

1M³pulping machines

 1set

Forming system

Including

(1*3 molds )or 3 moulds forming machine

Vacuum pump

Compressor

Washer

Vacuum tank

Air tank

 1set


Delivery


Delivery Time: 35 working days after getting payment

Payment Terms: 40% T/T prepayment in advance, 60% before delivery by T/T.

Warranty time

365 days after the Egg tray machine received.

Time of payment

When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery.
