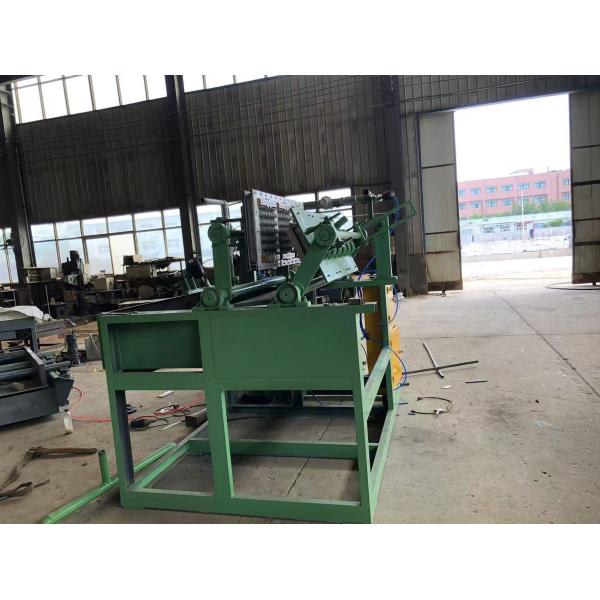

1500pcs/h Small Business Semi Automatic Egg Tray Machine / Apple Tray Making Machine Simple Structure Speed Adjustable Aluminum Molds PLC Controlled
1500pcs/h Small Business Semi Automatic Egg Tray Machine / Apple Tray Making Machine Simple Structure Speed Adjustable Aluminum Molds PLC Controlled
1500pcs/h Small Business Semi Automatic Egg Tray Machine / Apple Tray Making Machine Simple Structure Speed Adjustable Aluminum Molds PLC Controlled
1500pcs/h Small Business Semi Automatic Egg Tray Machine / Apple Tray Making Machine Simple Structure Speed Adjustable Aluminum Molds PLC Controlled
1500pcs/h Small Business Semi Automatic Egg Tray Machine / Apple Tray Making Machine Simple Structure Speed Adjustable Aluminum Molds PLC Controlled
1500pcs/h Small Business Semi Automatic Egg Tray Machine / Apple Tray Making Machine Simple Structure Speed Adjustable Aluminum Molds PLC Controlled
1500pcs/h Small Business Semi Automatic Egg Tray Machine / Apple Tray Making Machine Simple Structure Speed Adjustable Aluminum Molds PLC Controlled
1500pcs/h Small Business Semi Automatic Egg Tray Machine / Apple Tray Making Machine Simple Structure Speed Adjustable Aluminum Molds PLC Controlled
1500pcs/h Small Business Semi Automatic Egg Tray Machine / Apple Tray Making Machine Simple Structure Speed Adjustable Aluminum Molds PLC Controlled
1500pcs/h Small Business Semi Automatic Egg Tray Machine / Apple Tray Making Machine Simple Structure Speed Adjustable Aluminum Molds PLC Controlled
Specifications
Brand Name :
Wanyou
Model Number :
WY-D
Place of Origin :
Jinan, Shandong, China
MOQ :
1 set
Price :
9000usd
Payment Terms :
Western Union,MoneyGram,T/T
Supply Ability :
1set/month
Delivery Time :
45 working days or as customer
Packaging Details :
in container
Name :
small pulp molding egg tray machine
Raw material :
Waste paper/Carton
Egg tray mold quantity :
1*4 molds or 4 molds
Water consumption :
338kg / hour
Waste paper consumption :
113kg / hour
Voltage :
380/50HZ
Machine type :
Reciprocating type or turn over or flip over type
Description

1500pcs/h Small Business Semi Automatic Egg Tray Machine / Apple Tray Making Machine Simple Structure Speed Adjustable Aluminum Molds PLC Controlled


This specific semi-automatic production line does not include a drying system. After the pulp-making and automatic forming processes, the wet products need to be moved to another location for drying by workers, and then they can be dried naturally under the sun.

The above mentioned production line are suitable for all kinds of paper pulp molded product.

Parameters of small pulp egg tray machine:


Technical Parameters

Egg Tray mould quantity

4pcs

Container Required

Raw material

Waste paper

About 40HQ*3

Output for paper tray

1300-1500pcs/hour

Net weight per piece (gram)

Estimated 70-75g

Waste paper consumption

Estimated 113kg / hour

Water consumption

Estimated 338kg / hour

Machine Weight

25 tons around

Natural gas consumption

28-40cbm/h

LPG/Diesel consumption

20-30kg/h

Installed power

90.8kw

Practical usage is 70% of this power

Workshop demand

About 32L*10W*4mH

End tray Size

295*295mm

Remarks:

1.Usually, all installation and debugging work will be done before shipment.

2.We will offer online installation support for buyers.Either by video call or by phone call.

The production line is mainly combined by THREE PARTS:


1. Pulping system

(meaning: Use waste paper and water as raw material and pulp up) ;


1500pcs/h Small Business Semi Automatic Egg Tray Machine / Apple Tray Making Machine Simple Structure Speed Adjustable Aluminum Molds PLC Controlled


2. Egg Tray Machine Forming system

(meaning: The pulped material being delivered to Egg tray moulds, and forming to the Egg tray plate shape)



1500pcs/h Small Business Semi Automatic Egg Tray Machine / Apple Tray Making Machine Simple Structure Speed Adjustable Aluminum Molds PLC Controlled

1500pcs/h Small Business Semi Automatic Egg Tray Machine / Apple Tray Making Machine Simple Structure Speed Adjustable Aluminum Molds PLC Controlled


1500pcs/h Small Business Semi Automatic Egg Tray Machine / Apple Tray Making Machine Simple Structure Speed Adjustable Aluminum Molds PLC Controlled

3. Egg Tray Machine Drying system

(Meaning : The formed Egg tray plate being delivered to Dryer, and come up to Completed Strong Egg tray plate) .

About the drying,you have 3 methods,by nature,by brick kiln and by metal dryer.

1500pcs/h Small Business Semi Automatic Egg Tray Machine / Apple Tray Making Machine Simple Structure Speed Adjustable Aluminum Molds PLC Controlled


Advantage : 1.capacity 350/700/1000/1300/2000/3000/4000/5000/6000pcs per hour


2.waste paper as raw materials


3.machine including making pulp unit ,moluding unit and dryer unit


4.computer PLC control

Standard configuration of small egg tray machine 1000pcs/h capacity:



 Main parts Quantity

Pulping system


Including :

mill pulp pump

water pump

pulp pump

1M³pulping machines

 1set

Forming system

Including

(1*3 molds )or 3 moulds forming machine

Vacuum pump

Compressor

Washer

Vacuum tank

Air tank

 1set


Delivery


Delivery Time: 35 working days after getting payment

Payment Terms: 40% T/T prepayment in advance, 60% before delivery by T/T.

Warranty time

365 days after the Egg tray machine received.

Time of payment

When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery.
