Specifications
Brand Name :
Wanyou
Model Number :
WY-1
Place of Origin :
Jinan, Shandong, China
MOQ :
1 set
Price :
negotiation
Payment Terms :
Western Union,MoneyGram,T/T
Supply Ability :
1 set per month
Delivery Time :
100 working days
Packaging Details :
in container
Voltage :
380V/50hz
Warranty :
1 year
Raw material input :
any kind waste paper, newspapers, books, cardboards, etc.
Automation level :
Semi-automatic / Fully automatic options available
Spare Parts :
one year replaced
Power Consumption :
260 KW per hour actual usage
Collection :
automatic stacking machine
Water Consumption :
2250 kg / h
Frame :
45# steel
Fuel Type :
Natural gas, Diesel oil, Coal
Description
Apple Tray Making Machine With Complete Pulping Forming Drying And Automatic Stacking Systems
Complete production line for manufacturing recycled paper trays including apple trays and egg trays. The system integrates pulping, forming, drying, and automatic stacking processes for efficient paper tray production.
Production Line Sections
1. Pulping System
  • Converts waste paper into pulp using hydrapulper, pump, disk mill (refiner), and mixer

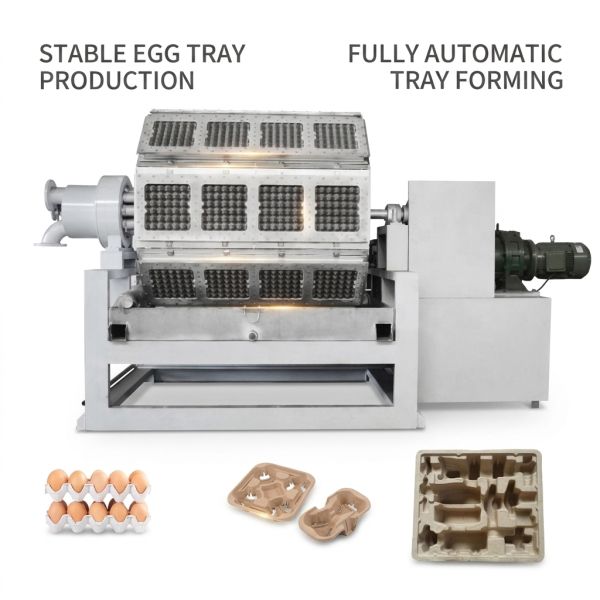

2. Forming System
  • Transforms pulp into wet trays using molding machine, molds, vacuum pumps, air compressor, and electrical controller
Egg Tray Making Machine with 10,000pcs/h Output, Automatic Stacking System and Recycled Paper Input for Efficient Paper Pulp Tray Production Egg Tray Making Machine with 10,000pcs/h Output, Automatic Stacking System and Recycled Paper Input for Efficient Paper Pulp Tray Production
3. Drying System
  • Dries wet trays for immediate use with oven, chains, trays, heating pipes, fans, and boiler
Egg Tray Making Machine with 10,000pcs/h Output, Automatic Stacking System and Recycled Paper Input for Efficient Paper Pulp Tray Production Egg Tray Making Machine with 10,000pcs/h Output, Automatic Stacking System and Recycled Paper Input for Efficient Paper Pulp Tray Production
4. Automatic Stacker
  • Features automatic counting and stacking with preset quantity capability (100pcs or 200pcs per pile)
  • Includes alarm system and simultaneous product stacking for direct packaging
Egg Tray Making Machine with 10,000pcs/h Output, Automatic Stacking System and Recycled Paper Input for Efficient Paper Pulp Tray Production
Technical Parameters
Item Parameter
Design output 10,000pcs/h
Waste paper consumption 750kg/h
Water consumption 2250kg/h
Coal consumption Around 250-300kg/h
Egg tray model 30 hole
Egg tray size 295*295mm
Egg tray weight 70-75g
Workshop requirement Larger than 60mL × 10mW × 5mH
Workers 7-8 persons with dryer
Machine size Around 50mL × 4mW × 3mH
Installed Power 370.9kw
Motor efficiency 70% × 370.9kw = 259.63kw
Payment and Delivery
Trade terms EXW Jinan
Delivery time About 100 working days after receiving deposit
Payment term T/T 40% Deposit + 60% Balance
Time of payment Production begins after deposit payment; balance paid before delivery
Warranty time 1 year after machine receipt
Terms of delivery EXW Jinan, China
Package 7 × 40ft container
Welcome for more information.
WhatsApp & WeChat: +86 15665703348
