Specifications
Brand Name :
WANYOU
Model Number :
WY-1
Place of Origin :
CHINA
MOQ :
1SET
Price :
USD6800/SET
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
1SET PER MONTH
Delivery Time :
35working days
Packaging Details :
in container
Product Name :
Paper Egg Tray Machine
Mold Material :
Plastic, aluminum
Machine Capacity :
1000pcs/h, customized
Egg Tray Size :
295mm*295mm 30eggs
Forming Type :
Vacuum Suction
Warantee :
12 month
Power Supply :
380V/50Hz
End Product :
Egg Tray, Egg Carton, Shoe Tray, Industrial Packaging Tray, Apple Tray
Description

1*3 Molds Simple Paper Egg Tray Machine /Pulp Molding Machine Price Easy Operation Small Business Idea 1000Pcs/h


Product Information

It is semi automatic one without dryer. Also can choose fully automatic type with dryer if have enough budget.

Main sections of the paper egg tray machine:

1. pulping system: including the hydrapulper, water pump, pulp pump, water tank, pulp tank, mixer, etc..to make the wastepaper into paper pulp.


1*3 Molds Simple Paper Egg Tray Machine /Pulp Molding Machine Price Easy Operation Small Business Idea 1000Pcs/h

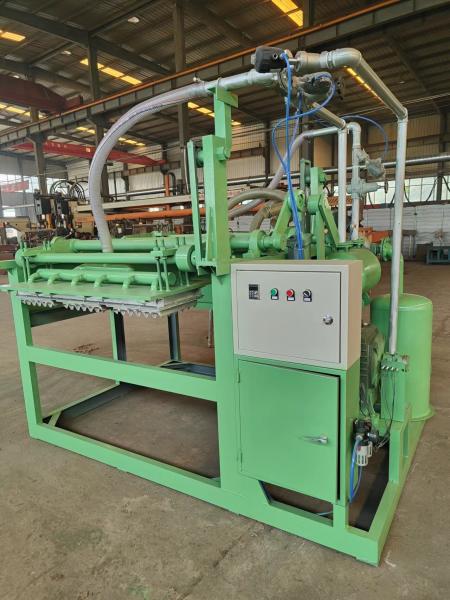

2. forming system: including the molding machine, molds, vacuum pumps, air compressor and electrical controller to make the pulp into wet trays.


1*3 molds paper egg tray machine 1000pcs/h capacity forming part

1*3 Molds Simple Paper Egg Tray Machine /Pulp Molding Machine Price Easy Operation Small Business Idea 1000Pcs/h

1*3 Molds Simple Paper Egg Tray Machine /Pulp Molding Machine Price Easy Operation Small Business Idea 1000Pcs/h

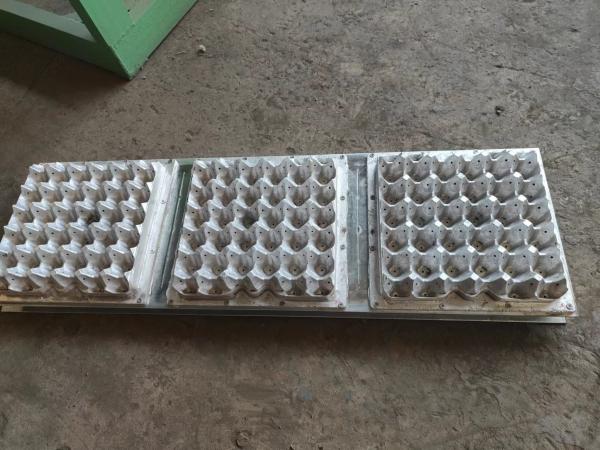

Transferring molds are aluminum material for the egg tray machine

1*3 Molds Simple Paper Egg Tray Machine /Pulp Molding Machine Price Easy Operation Small Business Idea 1000Pcs/h

Other type egg tray machine we made

4 molds paper egg tray machine forming system 1300pcs/h capacity

1*3 Molds Simple Paper Egg Tray Machine /Pulp Molding Machine Price Easy Operation Small Business Idea 1000Pcs/h


Other Various big capacity egg tray machine we can make

Model

Capacity

Forming machine

Drying system

Workshop space

Rated power

WY-1500S

1500-2000pcs/hr

3molds *4faces

Single-Layer Metal

55m*10m*6m

130KW

Rotary type

WY-1500M

1500-2000pcs/hr

3molds *4faces

4 Layers

35m*10m*6m

120KW

Rotary type

Metal

WY-2000S

2000-2500pcs/hr

4molds *4faces

Single-Layer Metal

60m*10m*6m

165KW

Rotary type

WY-2000M

2000-2500pcs/hr

4molds *4faces

4 Layers

40m*10m*6m

145KW

Rotary type

Metal

WY-3000S

3000pcs/hr

3molds *8faces

Single-Layer Metal

65m*15m*6m

209KW

Rotary type

WY-3000M

3000pcs/hr

3molds *8faces

4Layers

50m*15m*6m

189KW

Rotary type

Metal

WY-4000S

4000pcs/hr

4molds *8faces

Single-Layer Metal

75m*15m*6m

239KW

Rotary type

WY-4000M

4000pcs/hr

4molds *8faces

4 Layers

50m*15m*6m

223KW

Rotary type

Metal

WY-5000S

5000pcs/hr

5molds *8faces

Single-Layer Metal

70m*15m*6m

298KW

Rotary type

WY-5000M

5000pcs/hr

5molds *8faces

4 Layers

55m*15m*6m

273KW

Rotary type

Metal

WY-6000S

6000pcs/hr

6molds *8faces

Single-Layer Metal

80m*15m*6m

365KW

Rotary type

WY-6000M

6000pcs/hr

6molds *8faces

4 Layers

55m*15m*6m

326KW

Rotary type

Metal


1000pcs/h capacity 1*3 molds egg tray machine technical data

Technical Parameters

Egg Tray mould quantity

1*3pcs

Machine volume

Raw material

Waste paper

About20GP*1

Output for egg tray

1000pcs/hour

Net weight per piece (gram)

70g-75g

The volume of waste paper consumed

75kg / hour

The volume of water consumed

0.22ton / hour

Machine Weight

2.5tons around

Egg tray Size

295mm*295mm 30eggs

Installed power

30.5kw

Motor working efficiency

70%

Dimensions required to install the machine

More than L6m*W5m*H3m

Remarks:

1.Usually, debugging work will be done before shipment.

2.We will offer online installation support for buyers.Either by video or by phone.

3.Buyer needs to build underground type 1 water and 1 pulp pool with dimensions of 1.5mL*1.5mW*1.5m(deep)


Payment Terms

Delivery Time: 25 working days after getting payment

Payment Terms: 40% T/T prepayment in advance.

60% before delivery by T/T.

Warranty time

1year after the Egg tray machine received.

Terms of delivery

EXW Jinan, China

Time of payment

When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery.


Our Services

(1)Technical consultation ;

(2)Detailed design of customer workshop ;

(3)Installing and testing the whole production line before shipment;

(4)Training engineers and workers;

(5)Supplying spare part for long time;

(6) Online services anytime.
