1*4 Molds 1500pcs/h Paper Egg Tray Machine /Pulp Molding Machine Price Easy Operation Small Business Idea Egg Carton Production Line
1*4 Molds 1500pcs/h Paper Egg Tray Machine /Pulp Molding Machine Price Easy Operation Small Business Idea Egg Carton Production Line
1*4 Molds 1500pcs/h Paper Egg Tray Machine /Pulp Molding Machine Price Easy Operation Small Business Idea Egg Carton Production Line
1*4 Molds 1500pcs/h Paper Egg Tray Machine /Pulp Molding Machine Price Easy Operation Small Business Idea Egg Carton Production Line
1*4 Molds 1500pcs/h Paper Egg Tray Machine /Pulp Molding Machine Price Easy Operation Small Business Idea Egg Carton Production Line
1*4 Molds 1500pcs/h Paper Egg Tray Machine /Pulp Molding Machine Price Easy Operation Small Business Idea Egg Carton Production Line
1*4 Molds 1500pcs/h Paper Egg Tray Machine /Pulp Molding Machine Price Easy Operation Small Business Idea Egg Carton Production Line
1*4 Molds 1500pcs/h Paper Egg Tray Machine /Pulp Molding Machine Price Easy Operation Small Business Idea Egg Carton Production Line
1*4 Molds 1500pcs/h Paper Egg Tray Machine /Pulp Molding Machine Price Easy Operation Small Business Idea Egg Carton Production Line
1*4 Molds 1500pcs/h Paper Egg Tray Machine /Pulp Molding Machine Price Easy Operation Small Business Idea Egg Carton Production Line
1*4 Molds 1500pcs/h Paper Egg Tray Machine /Pulp Molding Machine Price Easy Operation Small Business Idea Egg Carton Production Line
1*4 Molds 1500pcs/h Paper Egg Tray Machine /Pulp Molding Machine Price Easy Operation Small Business Idea Egg Carton Production Line
Specifications
Brand Name :
WANYOU
Model Number :
WY-1
Place of Origin :
CHINA
MOQ :
1SET
Price :
USD6800/SET
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
1SET PER MONTH
Delivery Time :
45working days
Packaging Details :
in container
Product Name :
Paper Egg Tray Machine
Mold Material :
Plastic, aluminum
Machine Capacity :
1500pcs/h, customized
Egg Tray Size :
295mm*295mm 30eggs
Forming Type :
Vacuum Suction
Warantee :
12 month
Power Supply :
380V/50Hz
End Product :
Egg Tray, Egg Carton, Shoe Tray, Industrial Packaging Tray, Apple Tray
Description

1*4 Molds 1500pcs/h Paper Egg Tray Machine /Pulp Molding Machine Price Easy Operation Small Business Idea Egg Carton Production Line


Product Information

It is semi automatic one without dryer. Also can choose fully automatic type with dryer if have enough budget.

Main sections of the paper egg tray machine:

1. pulping system: including the hydrapulper, water pump, pulp pump, water tank, pulp tank, mixer, etc..to make the wastepaper into paper pulp.


1*4 Molds 1500pcs/h Paper Egg Tray Machine /Pulp Molding Machine Price Easy Operation Small Business Idea Egg Carton Production Line

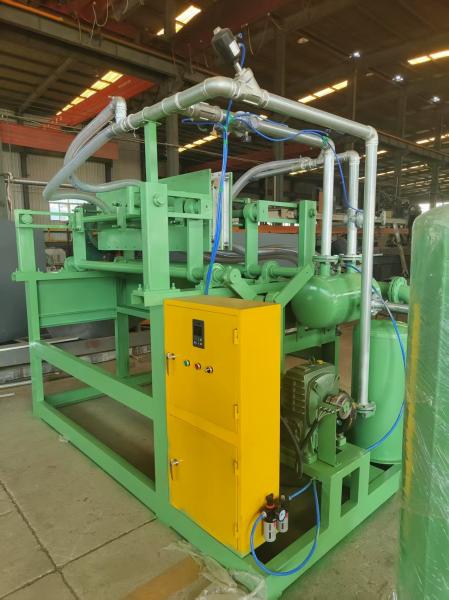

2. forming system: including the molding machine, molds, vacuum pumps, air compressor and electrical controller to make the pulp into wet trays.


1*4 molds paper egg tray machine 1500pcs/h capacity forming part


1*4 Molds 1500pcs/h Paper Egg Tray Machine /Pulp Molding Machine Price Easy Operation Small Business Idea Egg Carton Production Line

1*4 Molds 1500pcs/h Paper Egg Tray Machine /Pulp Molding Machine Price Easy Operation Small Business Idea Egg Carton Production Line

1*4 Molds 1500pcs/h Paper Egg Tray Machine /Pulp Molding Machine Price Easy Operation Small Business Idea Egg Carton Production Line


Transferring molds are aluminum material for the egg tray machine

1*4 Molds 1500pcs/h Paper Egg Tray Machine /Pulp Molding Machine Price Easy Operation Small Business Idea Egg Carton Production Line

Other type egg tray machine we made

4 molds paper egg tray machine forming system 1300pcs/h capacity

1*4 Molds 1500pcs/h Paper Egg Tray Machine /Pulp Molding Machine Price Easy Operation Small Business Idea Egg Carton Production Line


Other Various big capacity egg tray machine we can make

Egg Tray Mold Quantity

12pcs(3pcs*4)

16pcs(4pcs*4)

24pcs(3pcs*8)

32pcs(4pcs*8)

40(5pcs*8)

48(6pcs*8)

Raw material

Waste paper

Waste paper

Waste paper

Waste paper

Waste paper

Waste paper

Egg tray Capacity(pcs/hour)

2000

2500

3000

4000

5000

6000

Net weight per piece (gram)

70-75

70-75

70-75

70-75

70-75

70-75

Waste paper consumption

150kg/ h

150kg/h

188kg/h

225kg / hour

375kg/h

450kg/h

Water Consumption

0.45ton / h

0.6ton/h

0.68ton/h

0.9ton / h

1.1t/h

1.35ton/h

Natural Gas Consumption of Dryer

75cbm/h

90cbm/h

110cbm/h

120cbm/h

150cbm/h

180cbm/h

Boiler model (natural gas fuel Kcal)

800*103

1000*103

1200*103

1500*103

1800*103

2000*103

Worker requirement

5-7workers

5-7workers

8-10workers

8-10workers

10-12

10-12

Power Requirement

Without dryer

70KW

80KW

100KW

100KW

With dryer

100KW

120KW

130KW

150KW

180kw

200kw

Area of workshop

Without dryer

More than
200 M²

More than 200 M²

More than 250 M²

More than 250 M²

With dryer

More than 400M²
Dryer18M

More than 400M²
Dryer20M

More than 520M² dryer30M

More than 520M²
Dryer32M

600m2
Dryer 36m

750m2
Dryer 40m

Container Requirement

Without dryer

40ft*1

40ft*1

40ft*1

40ft*1

With dryer

40ft*4

40ft*4

40ft*5

40ft*5

40ft*6+20ft*1

40ft*7

Remarks:
1. The Capacity calculated base on 30-packed egg tray(size 300x300mm, weight 70g~75g).
2. Workshop size is for reference only and could be adjusted according to actual size of client's plant.
3. The above specification is for reference only, due to continuous technology development, data will be updated from time to time.
4. Pulp Molding Equipment are non-standard equipment, we are able to provide customized solution according to specific requirements from customer.
5. Welcome to contact us anytime, our professional team will provide more effective help and supports for you.


1500pcs/h capacity 1*4 molds egg tray machine technical data

Technical Parameters

Egg Tray mould quantity

1*4pcs

Machine volume

Raw material

Waste paper

About20GP*1

Output for egg tray

1300-1500pcs/hour

Net weight per piece (gram)

70g-75g

The volume of waste paper consumed

110kg / hour

The volume of water consumed

0.3ton / hour

Machine Weight

4 tons around

Egg tray Size

295mm*295mm 30eggs

Installed power

41kw

Motor working efficiency

70%

Dimensions required to install the machine

More than L10m*W5m*H3m

Remarks:

1.Usually, debugging work will be done before shipment.

2. We will offer online installation support for buyers.Either by video or by phone.

3. Buyer needs to build underground type 1 water and 2 pulp pools with dimensions of 1.5mL*1.5mW*1.5m(deep)


Payment Terms

Delivery Time: 45 working days after getting payment

Payment Terms: 40% T/T prepayment in advance.

60% before delivery by T/T.

Warranty time

1year after the Egg tray machine received.

Terms of delivery

EXW Jinan, China

Time of payment

When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery.


Our Services

(1)Technical consultation ;

(2)Detailed design of customer workshop ;

(3)Installing and testing the whole production line before shipment;

(4)Training engineers and workers;

(5)Supplying spare part for long time;

(6) Online services anytime.
