Specifications
Brand Name :
WANYOU
Model Number :
WY-2000S
Place of Origin :
CHINA
MOQ :
1SET
Price :
USD18800/SET
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
1SET PER MONTH
Delivery Time :
90 working days
Packaging Details :
in container
Control System :
PLC
Speed :
High Speed
Mold Material :
Plastic or aluminum
Machine Capacity :
2500-3000pcs/h, customized
Egg Tray Size :
295mm*295mm 30eggs
Forming Type :
Vacuum Suction
Warantee :
12 month
Power Supply :
380V/50Hz
Description

4*4 molds Rotary Professional Nanya Paper Egg Tray Machine / Pulp Molding Equipment / Egg Tray Production Line


Product Information

It is fully automatic type paper egg tray machine with 6 layer metallic dryer.

Main sections of the paper egg tray machine:

1. pulping system: including the hydrapulper, pump, water tank, pulp tank, mixer, etc..to make the wastepaper into paper pulp.


4*4 molds Rotary Professional Nanya Paper Egg Tray Machine / Pulp Molding Equipment / Egg Tray Production Line

2. forming system: including the molding machine, molds, vacuum pumps, air compressor and electrical controller to make the pulp into wet trays.


4*4 molds paper egg tray machine 3000pcs/h capacity forming part

4*4 molds Rotary Professional Nanya Paper Egg Tray Machine / Pulp Molding Equipment / Egg Tray Production Line



transferring molds of paper egg tray/carton production line machine 3000pcs/h capacity

4*4 molds Rotary Professional Nanya Paper Egg Tray Machine / Pulp Molding Equipment / Egg Tray Production Line


3. Drying System

including the oven, chains, trays, heating pipes, fans, boiler, etc..to dry the wet trays so they can be used directly.(This part is not necessary for small capacity demand machine below 1500pcs/h.)

Heat source: natural gas, diesel, liquefied petroleum gas and other combustion liquids and gases.The transmission mode adopts industrial transmission chain to drive the net plate transmission, which runs in the drying line.

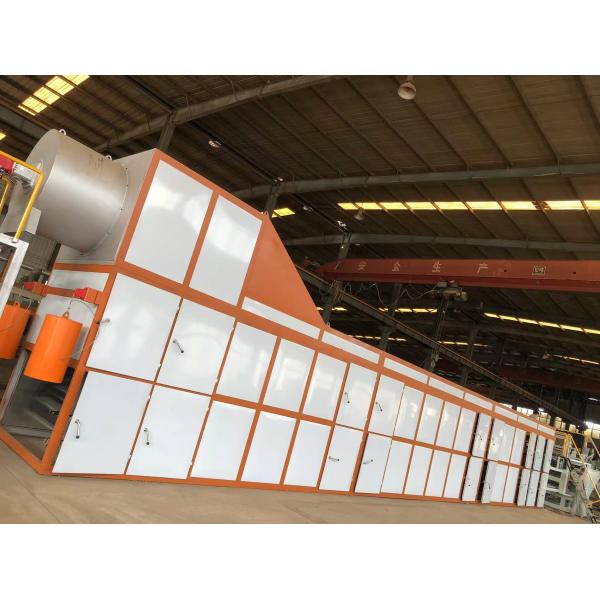

4 and 6 layers metallic dryer oven for paper egg tray machine / egg tray production line

4*4 molds Rotary Professional Nanya Paper Egg Tray Machine / Pulp Molding Equipment / Egg Tray Production Line


Other Various capacity paper egg tray machine/ egg tray production line we can make

Model

Mechanization

Working mode

Capacity(Pcs/h)

ZJM-1800

Semi-auto or Automatic

Rotary

1800

ZJM-2000

Semi- auto or Automatic

Rotary

2000

ZJM-3000

Automatic

Rotary

3000

ZJM-4000

Automatic

Rotary

4000-4500

ZJM-5000

Automatic

Rotary

5000-5500

ZJM-6000

Automatic

Rotary

6000


2500-3000pcs/h capacity 4*4 molds egg tray machine technical data

Egg Tray Mold Quantity

16pcs(4pcs*4 faces)

Raw material

Waste paper

Egg tray Capacity

2500pcs/hour

Net weight per piece (gram)

70g-75g

Waste paper consumption

190kg / hour

Water Consumption

0.6ton / hour

Natural Gas Consumption of Dryer

90cbm/h

Worker requirement

5-7workers

Machine Length

8m-33m

Machine weight

9-32tons

Power Requirement

Without dryer

80KW

With dryer

120KW

Area of workshop

Without dryer

More than 200 M²

With dryer, dryer-24m

More than400M²

Container Requirement

Without dryer

20ft*1

With dryer

40hq*3

Remarks:

1. The egg tray Capacity calculated base on 30-packed egg tray(size 300x300mm, weight 70g~75g).

2. Workshop size is for reference only and could be adjusted according to actual size of client’s plant.


Payment Terms

Delivery Time: 90 working days after getting payment

Payment Terms: 40% T/T prepayment in advance.

60% before delivery by T/T.

Warranty time

1year after the Egg tray machine received.

Terms of delivery

EXW Jinan, China

Time of payment

When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery.
