Specifications
Supply Ability :
1 sets per month
Guarantee :
1year

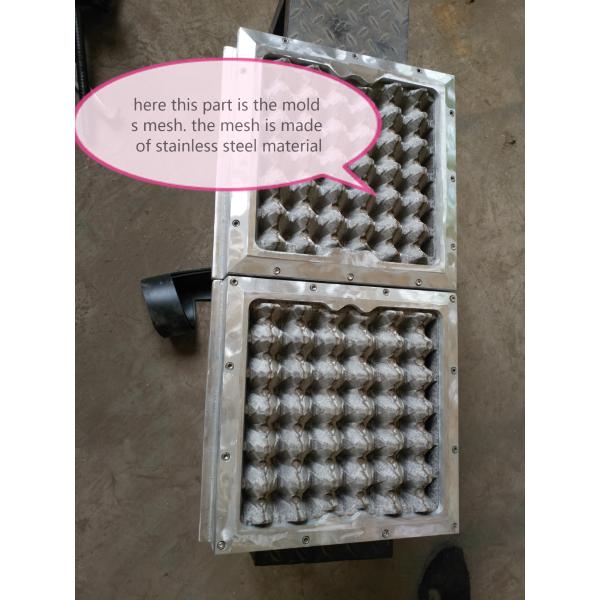

Forming molds :
ABS Engineering Plastic Material / Aluminum Molds
Delivery Time :
30 working days after get deposit payment
Raw Material :
Waste Paper, Waste Cardboard, Carton, Books etc.
Voltage :
380V/50Hz
Egg Tray Weight :
70-75g/pcs
Model Number :
WY-1
Finished products :
Egg Tray Egg Carton'/egg plate/egg box
Machine Weight :
Approximately 2000-3500 kg
Processing Type :
Pulp Molding Machine
Specification :
2.3*1.7*1.6m
Machine Speed :
Adjusted
Price :
Negotiation
Packaging Details :
in container
Product type :
Egg Tray Machine,pulp equipment
Dimensions :
3000 mm x 1500 mm x 1800 mm
Payment Terms :
T/T,L/C,Western Union
Capacity of egg trays :
700-1000pcs/h
Automation :
Fully automatic or semi-automatic
Place of Origin :
Jinan, Shandong, China
MOQ :
1 set
Design Speed :
Customized
Brand Name :
Wanyou
Operating System :
PLC Control
Power :
20-40KW
Description



20-40KW PLC Controlled Paper Egg Tray Making Machine Producing 700 to 1000 Egg Trays per Hour from Recycled Waste Paper Material


Technical parameters of egg tray machine:


1. Egg tray mould quantity 2pcs 3pcs
2. Raw material Waste paper Waste paper
3. Output for egg tray 700pcs/hour 1000pcs/hour
4. Net weight per piece (gram) 70g-75g 70g-75g
5. waste paper consumption 0.053ton / hour 0.1ton / hour
6. water consumption 0.15ton/hour 0.15ton / hour
7. Operators number 3-4workers 4-6workers
8. Area of workshop Without dryer

≥100

M²

 ≥ 120 M²
9. Capacity of power Without dryer 30KW 40KW
10. Machine length Without dryer 8meters 9meters
11. Size of container Without dryer 20ft*1 40ft*1


Machine Introduction of egg tray machine:


This type semi-automic production line is not equipped with drying system, after pulp making process and automatic forming process, the wet prodcuts should be moved to another place for drying by workers, and then prodcut can be dried by sunshine.

the above mentioned production line are suitable for all kinds of paper pulp molded product.


1. Pulping System:


Put the waster paper into the hydrapulper , the paper and water will mix in hydrapulper ,then go to the refiner machine ,refiner machine make the pulp more small and uniform ,then the pulp pump absorb the pulp to the pulp pool .after the second mix in the pulp pool ,the pulp will go to the form machine pulp tank .

20-40Kw PLC Controlled Paper Egg Tray Machine Producing 700 to 1000 Egg Trays per Hour from Recycled Waste Paper Material

2. Forming System :


The vacuum pump will offer the vacuum to make the forming mould absorb the pulp from the pulp tank. One PLC cabinet will control the pulp absorb time ,the finished product will be shaped on the forming mould ,then the transfer mould transfer the products to the drying line ,the air compressor will give the air to blow the products ,then the products will drop down from the mould .Then the products is delivered to the drying line automatically; the water will go back to the water pool recycled.


700pcs/h 2 molds reciprocating forming type egg tray machine

20-40Kw PLC Controlled Paper Egg Tray Machine Producing 700 to 1000 Egg Trays per Hour from Recycled Waste Paper Material


3 molds 1000pcs/h capacity egg tray machine

20-40Kw PLC Controlled Paper Egg Tray Machine Producing 700 to 1000 Egg Trays per Hour from Recycled Waste Paper Material


20-40Kw PLC Controlled Paper Egg Tray Machine Producing 700 to 1000 Egg Trays per Hour from Recycled Waste Paper Material

20-40Kw PLC Controlled Paper Egg Tray Machine Producing 700 to 1000 Egg Trays per Hour from Recycled Waste Paper Material


This production line is suitable for the following products:

Egg tray(30-egg) Egg box/egg carton(6-egg, 10-egg, 12-egg, 6+6-egg, 15-egg, 18-egg and etc)

Fruit tray (for apple,tomato, pear and etc) Cup carrier(4 pack and 2 pack) Seeding tray and bottle trays.

Some medical-care products and fixed shape(the design doesn't change frequently) pulp molding products with large quantity.



Payment and delivery of egg tray machine:


Trade terms FOB Qingdao or EXW Factory
Delivery time About 45 working days after receiving the deposit.
Payment term BY T/T 40%DEPOSIT+60%BALANCE
Time of payment When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery.
Warranty time Two years after the Egg tray machine received.
TERMS OF DELIVERY FOB Qingdao Port, China
Package In container


Welcome to contact us.


Working Process of egg tray machine:


Samples of egg tray machine:

We can do what you want,pls contact us.
