Multifunctional Paper Egg Tray Making Machine , Simple Structure Type Egg Tray Moulding Machine Pulp Molding Machine Production Line
Multifunctional Paper Egg Tray Making Machine , Simple Structure Type Egg Tray Moulding Machine Pulp Molding Machine Production Line
Multifunctional Paper Egg Tray Making Machine , Simple Structure Type Egg Tray Moulding Machine Pulp Molding Machine Production Line
Multifunctional Paper Egg Tray Making Machine , Simple Structure Type Egg Tray Moulding Machine Pulp Molding Machine Production Line
Multifunctional Paper Egg Tray Making Machine , Simple Structure Type Egg Tray Moulding Machine Pulp Molding Machine Production Line
Multifunctional Paper Egg Tray Making Machine , Simple Structure Type Egg Tray Moulding Machine Pulp Molding Machine Production Line
Multifunctional Paper Egg Tray Making Machine , Simple Structure Type Egg Tray Moulding Machine Pulp Molding Machine Production Line
Multifunctional Paper Egg Tray Making Machine , Simple Structure Type Egg Tray Moulding Machine Pulp Molding Machine Production Line
Multifunctional Paper Egg Tray Making Machine , Simple Structure Type Egg Tray Moulding Machine Pulp Molding Machine Production Line
Multifunctional Paper Egg Tray Making Machine , Simple Structure Type Egg Tray Moulding Machine Pulp Molding Machine Production Line
Multifunctional Paper Egg Tray Making Machine , Simple Structure Type Egg Tray Moulding Machine Pulp Molding Machine Production Line
Multifunctional Paper Egg Tray Making Machine , Simple Structure Type Egg Tray Moulding Machine Pulp Molding Machine Production Line
Specifications
Drying fuel :
Natural gas, LPG, coal
Processing Type :
Pulp Molding Machine
Raw Material :
Waste Paper, Books, Cardboard, Paper Cups, Paper tube
Guarantee :
2years
Power :
50kw-150KW
Brand Name :
RUNLIANG
Model Number :
RL- ZJM
Place of Origin :
Jinan, Shandong, China
MOQ :
1 set
Price :
negotiation
Payment Terms :
T/T,L/C,Western Union,
Supply Ability :
1 sets per month
Delivery Time :
60-90 working days after get deposit payment
Packaging Details :
in container
Voltage :
220 V / 380V 50HZ
Description


Multifunctional Paper Egg Tray Making Machine , Simple Structure Type Egg Tray Moulding Machine Pulp Molding Machine Production Line


Multi Functional Paper Egg Tray Making Machine Reciprocating Type Egg Tray Equipment uses waste paper as raw material to produce simple shape and large quantity demand egg trays, apple trays, egg cartons, egg boxes, wine trays, shoe trays, etc..


It mainly includes:

1. Pulping system

2. Forming system

3. Drying system

The drying system can use electricity, diesel, coal, natural gas as energy. Customers must first confirm which kind of energy they will use before our production.


We have variety capacity egg tray machines from 350pcs/h to 6000pcs/h. We are OEM factory, we can manufacture the machine as per your requirement.

All the machine is in computer control, which is also very easy to operate and donnot need high level knowledge requirement for the workers.
Our Paper Egg Tray Machine saves production cost, and saves space. it is quitely used by small medium enterprises.

Multifunctional Paper Egg Tray Making Machine , Simple Structure Type Egg Tray Moulding Machine Pulp Molding Machine Production Line

Multifunctional Paper Egg Tray Making Machine , Simple Structure Type Egg Tray Moulding Machine Pulp Molding Machine Production Line

Multifunctional Paper Egg Tray Making Machine , Simple Structure Type Egg Tray Moulding Machine Pulp Molding Machine Production Line

Multifunctional Paper Egg Tray Making Machine , Simple Structure Type Egg Tray Moulding Machine Pulp Molding Machine Production Line

Quick Detail


Condition: New

Product Type: Egg Tray Machine

Processing Type: Pulp Molding Machine

Place of Origin: Shandong, China (Mainland)

Brand Name: RUNLIANG

Voltage: 220-440V

Power(W): Different Machine Model

Dimension(L*W*H): 2300mm*1950mm*1600mm

Weight: 8 tons-50tons

Certification: CE & ISO

Warranty: 2 years

After-sales Service Provided: Engineers available to service machinery overseas

Capacity: 350pcs/h-2500pcs/h

Color: As customer needs

Frequency: 50Hz-60Hz

Application: egg tray,fruit tray,bottle tray

Workshop required: 150-560㎡

Worker required: 5-6 persons

Fuel: Coal, Natural Gas, Disel, LPG and so on

Automation: Automatic and fully automatic

Keyword: Egg tray machine


This production line is suitable for the following products:

Egg tray(30-egg) Egg box/egg carton(6-egg, 10-egg, 12-egg, 6+6-egg, 15-egg, 18-egg and etc)

Fruit tray (for apple,tomato, pear and etc) Cup carrier(4 pack and 2 pack) Seeding tray and bottle trays.

Some medical-care products and fixed shape(the design doesn't change frequently) pulp molding products with large quantity.


Technical data (2000pcs/h for example)


Technical Parameters of the Egg Tray Machine
pulp system Hydra Pulper 30KW

Effective Power:25KW,material of tank and disc:carbonized steel ,material of screen plate:stainless steel , pulping consistency:3-4%.
Mixer/Crusher 1.5KW/h

Stainless steel shaft and impeller,Mixing diameter:1200mm,match with pulp chest of 2 meters deepth,match with pulp chest of 2 meters deepth.not included support bracket.
Vibration Screen

3kw/h customized

Some type machine donnot need this equipment

Screen area:0.9m2 including protective casing.
forming system 8 faces Rotary forming machine

40pcs forming molds and 5 pcs transfer molds and 5 pcs press molds


 PLC control,stainless steel pulp tank,the surface of platens covered with stainless steel,the products should be transferred to a plate manually.The main electrical elements is brand.
Auto Drain System
Match with Forming System include Air-water Separation Tank,Auto Drain Tank,Support,Check Valve, Electromagnetic Valve, Inductor,etc

Control Cabinet for Forming System


 / Control the forming machine.The main electrical elements is Germany brand.
Drying system 6-layer Drying Line 16kw/h

Effective length 100m, transfer speed adjustable. Fuel : Diesel oil/Nature gas/LPG

Control Cabinet for Drying System


 380v/50hz 440v/60hz

Control the drying system.The main electrical elements is Taiwan brand.
Burner
Riello Brand
Boiler
China Famous Brand


Payment and delivery


Trade terms FOB Qingdao or EXW Factory
Delivery time About 30 working days after receiving the deposit.
Payment term BY T/T 40%DEPOSIT+60%BALANCE
Time of payment When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery.
Warranty time Two years after the Egg tray machine received.
TERMS OF DELIVERY FOB Qingdao Port, China

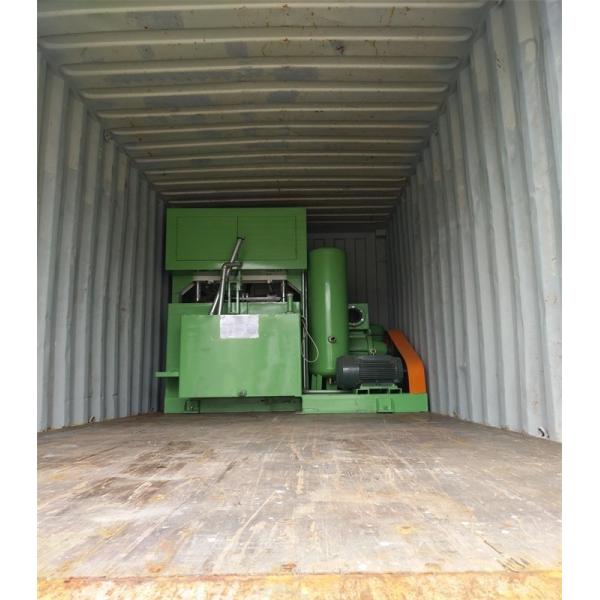

Package In container


Factory Introduction

Jinan Wanyou Packing Machinery Factory is a famous packing machinery company which has a good mix of science, industry and trade.

It has been devoting to studying, developing, and manufacturing of packing machinery for more than ten years.

It absorbs advanced technology and industrial arts at home and abroad, and has studied and developed ZSJ series paper pulp molding plant, YS series paper carton automatic print fluting machine, BD series thin cutter paper slitter and paper carton series cutter chain.

These products are sold to many countries and areas, such as Algeria, Tunisia, Argentina, Vietnam, Russia, Uzbekistan, Nigeria, Taiwan and so on.


Don’t miss the chance of promoting the production efficiency of your company.


Welcome to contact us.


Machine Molds


Multifunctional Paper Egg Tray Making Machine , Simple Structure Type Egg Tray Moulding Machine Pulp Molding Machine Production Line


End products of our machine


Multifunctional Paper Egg Tray Making Machine , Simple Structure Type Egg Tray Moulding Machine Pulp Molding Machine Production Line


Welcome to contact us!
