160 - 500 GSM Double PE Coated Paper Cup Forming Machine With Three Gear Wheel
160 - 500 GSM Double PE Coated Paper Cup Forming Machine With Three Gear Wheel
160 - 500 GSM Double PE Coated Paper Cup Forming Machine With Three Gear Wheel
160 - 500 GSM Double PE Coated Paper Cup Forming Machine With Three Gear Wheel
Specifications
Brand Name :
Mingyuan
Model Number :
JBZ-H
Certification :
CE, SGS
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiate
Payment Terms :
T/T , L/C At Sight,, MoneyGram
Supply Ability :
250 Sets to 300 Sets Per Year
Delivery Time :
30 days
Packaging Details :
Export Standard first packing with shrink film, Next Step packing by wooden case
Cup Size :
40ML to 330ML
Raw Material :
PE coated Paper
Net Weight :
1500 KGS
Gross Weight :
1600 KGS
Speed :
45 – 55 pcs/min
Paper Weight :
160 GSM to 300 GSM
Description

160 - 500 GSM Double PE Coated Paper Cup Forming Machine With Three Gear Wheel

Quick Detail:

Paper Cup Size 3 oz-12 oz (mold exchangeable)
Speed 45-55 Pcs/minute
Suitable paper weight 140-350gsm
Net Weight 1500KG
Warranty 2 years
Usage Hot drink and Cold drink
after-sales service 24 Hours Online Service, Provide Operation CD and Manual, Engineers available to service machinery overseas

Description:

Double PE coated paper cup machine is a kind of multi-station automatic molding machinery. It runs a series of successive procedures including automatic paper feeding, sealing, oiling, bottom punching, heating, knurling, curling, cup discharging, etc. Our double side PE coated paper cup machine (double PE coated paper cup making machinery) has become an ideal device for producing beverage cups, tea cups, coffee cups, advertising paper cups, market paper cups, ice cream paper cups or other disposable cone type food paper containers.

Specification

Paper Cup Size Range 1.5 to 12 oz
Speed 45 to 55 pc/min
Paper Cup Top Diameter Min. 45 mm to Max. 104 mm
Paper Cup Bottom Diameter Min. 35 mm to Max. 75 mm
Paper Cup Height Min. 35mm to Max. 110 mm
Raw Material 180 to 350 gsm, Single or Double PE Coating Paper
General Power 5 kW
Electricity 380 V, 3 Phases or 220V, 1 Phase
Weight 1500 kg
Measurement 2.6 m × 1.22 m × 1.7 m

Why Choose Us

♦ Advantages

1. Quality assurance both for our products and service for after-sales.

2. Favorable price.

3. Great variety of products.

4. Attractive design.

5. Environment Friendly Technology

6. OEM and ODM service provided.

Maintenance and Packing


For maintenance, users should pay attention to the lubrication of paper cup forming machine. For packing, we make use of wooden cases, which is convenient for sea transportation.

After service

1 The CD and service&support guide booklet will be sent with machine to guide the installation process works,adjust the whole machine,production,avoid or solve the problem which the buyer will face.

2. Test run of the machine&training:

We will adjust the machine well for one week before the delivery, ensure the machine has the perfect performance.

3. We can dispatch technologists to buyer’s factory,guiding installation,adjustment for a period,the buyer in charge of the salary, traffic fee, boarding and lodging, communication.

4. We supply the consumable spare parts for free for two years use

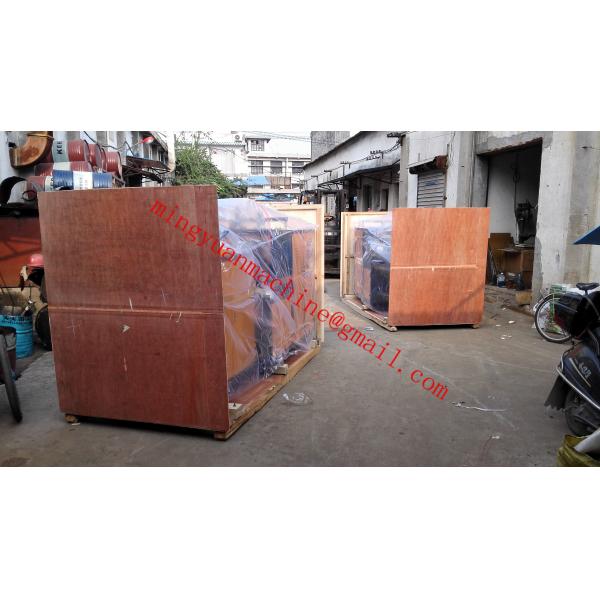

Loading Machine

160 - 500 GSM Double PE Coated Paper Cup Forming Machine With Three Gear Wheel
