Pipe Tube Core Making Jumbo Roll Slitter Rewinder
Pipe Tube Core Making Jumbo Roll Slitter Rewinder
Pipe Tube Core Making Jumbo Roll Slitter Rewinder
Pipe Tube Core Making Jumbo Roll Slitter Rewinder
Specifications
Brand Name :
Tiansheng
Model Number :
1600A
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1
Price :
Price negotiation
Payment Terms :
L/C, T/T
Supply Ability :
10+SET/SETS+per month
Delivery Time :
40-45
Packaging Details :
All with stretch film machine, into the container.
Width of base paper :
1600（mm）
Dimension(l*w*h) :
Φ1200（mm）
Winding diameter :
Φ750mm
Base paper weight :
80-600g
Charge :
Pneumatic
Feeding :
Electric
Description

Jumbo Paper Roll Slitter Rewinder Machine Pipe Tube Core Making

Technical parameter


Slitting width		 >30(mm)

Basis weight		 80-600g

Motor power		 5.5kw

Slitting knife		 18sets

Rewinding way
Gas up outside the closed

Speed of adjust and control
Magnetic force

Speed of Slitting		 1-150(m/min)

Power input		 380V three-phase four-wire

Operator		 1

Machine introduction

  • This type is suitable for 1200mm in diameter and width of 1600mm, weight 80-600g paper slitting and rewinding.
  • The paper base paper for pneumatic lift on paper. This paper on the way to save labor, but also easy to operate.
  • Brake mode for pneumatic brake. According to the size of the paper to quickly adjust the brake pressure, the winding to firmness.
  • The paper adopts the method of electric lifting after the completion of the discharge. The whole paper cuts a good hanging down, completely free of artificial lift, move the mode of operation, has the advantages of convenient operation and saves labor and time.
  • The main implementation of the host device for CHINT products; cylinder components for the Austrian products, these are our old products, with durable, high practical value.

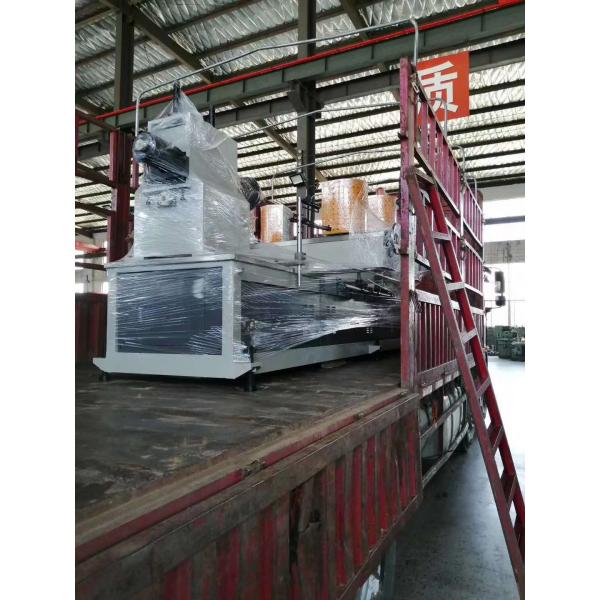

Machine delivery

Pipe Tube Core Making Jumbo Roll Slitter Rewinder

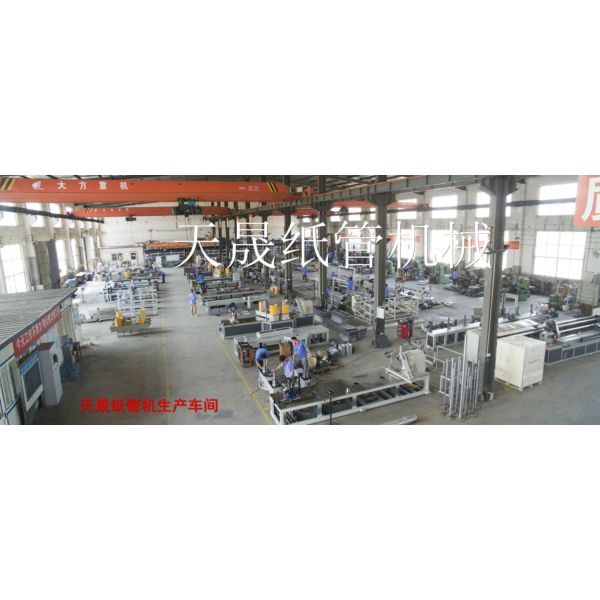

our factory

Pipe Tube Core Making Jumbo Roll Slitter Rewinder

Pipe Tube Core Making Jumbo Roll Slitter Rewinder
