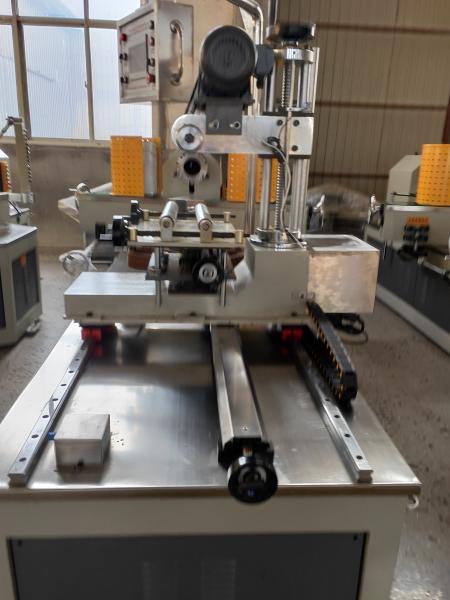

Double Numerical Control Frequency Control Spiral Paper Tube Machine 22kw
Double Numerical Control Frequency Control Spiral Paper Tube Machine 22kw
Double Numerical Control Frequency Control Spiral Paper Tube Machine 22kw
Double Numerical Control Frequency Control Spiral Paper Tube Machine 22kw
Specifications
Brand Name :
tiansheng
Model Number :
60type
Certification :
iso9001
Place of Origin :
china
MOQ :
1
Price :
Price negotiation
Payment Terms :
T/T
Supply Ability :
5set one month
Delivery Time :
40
Packaging Details :
Stretch film
paper layer :
3-25
diameter :
30-200（mm）
Speed :
0-25（m/min）
Thickness :
2-15mm
Total weight :
5300kg
Main engine power :
22kw
Cutter lift :
Servo Motor
Host angle :
Electric adjustment
Description

Spiral Paper Tubemaking Machine Max Diameter 150 Mm Thickness Max 8mm

Machine advantage

1.CNC fixed length, high accuracy, and easy and fast operation;

2.Electrically adjust the angle of the main engine to save labor and effort.

3.Gear drive, more stable operation.

Machine parameters


Configuration device

Paper holder type		 Right angle fixed hoisting paper holder

Glue supply
Automatic cycle gluing, heated glue tank
Paper tape for lubricating oil Automatic lubrication stainless steel basin
Bottom paper breaking
automatic alarm

Tension adjust		 Mechanical adjustment
Bottom and Top Paper Device Stainless steel bottom paper holder, face paper basin

Guide wheel
Stainless steel pipe

Host Mesa
Stainless steel plate

Host angle
Electric adjustment

Coil mandrel		 1

Coil belt		 2

Blanking rack		 Stainless steel automatic blanking
Application tools Neihexagonal 1 set
