A4 & A3 Culture Paper Making Machine

Culture Paper Making Machine

I Technical Parameter

①Output paper type: white paper jumbo roll, include A4 & A3 paper, printing paper, copy paper, newspaper, offset paper,etc.

②Ration: 40g/m²----100g/m²

③Trimmed width of paper:2400mm--5400mm

④Raw material: wasted paper, wood pulp, bamboo pulp, bagasse pulp, reed, wheat straw

⑤Design speed: 200m/min----500m/min

⑥Capacity: 50T/D----300T/D

II Technical Description

2.1 Main Structure of Paper Machine

The paper machine is mainly divided into the following parts: Headbox, Fourdrinier Wire Section, Press Section, Front Dryer Section, Beveled Surface Sizing Machine, Back Dryer Section, Reeling Section.

2.2 Main Equipment

①Headbox:
Air-cushion headbox, by controlling the gas pressure inside the headbox to control and stabilize the pulping pressure head.

②Wire Section:
Single fourdrinier wire, the main components: breast roll, forming plate, dehydration board, vacuum box, vacuum couch roll, wire-driving rollers, wire-guiding roll and rack, etc, and equipped with a piece of forming wire.

③Press Section:
It is divided into 1st press, 2nd press. 1st press is the press with large diameter roll with a vacuum suction roller, equipped with two coating metal rollers, and with upper felt and lower felt; 2nd press is large diameter roll, equipped with two coating metal rollers, and with upper felt and lower felt. 1st press, 2nd press are equipped with leading felt roller and felt suction box. 1st press, 2nd press pressurized way is oil hydraulic cylinder pressure.

④Front Dryer Section:
Φ1800 dryer cylinder, group drive, each group with dryer wire, wire-guiding roll. Equipped with semi-enclosed gas hood.

⑤Beveled Surface Sizing Machine:
Equipped with a surface chrome-plated metal roller, a coating metal roller. The surface sizing press machine pressurized way is corrugated tire pressure.

⑥Back Dryer Section:
Φ1800 dryer cylinder, group drive, each group with dryer wire, carrier roll. Equipped with semi-enclosed hood.

⑦Reeling Section:
Pneumatic horizontal reeling machine.

2.3 Flow Chart

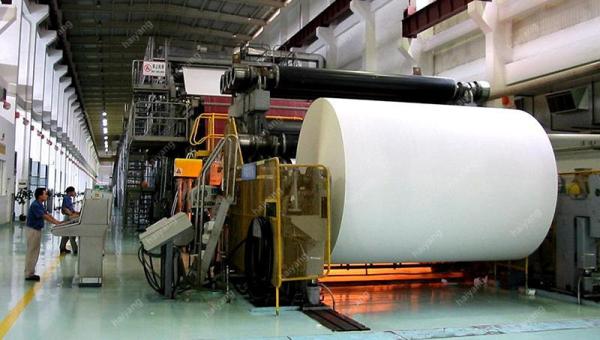

2.4 Culture Paper Making Machine Display

2.5 Output Paper & Finished Product Display

2.6 Video Clips on Working Condition

contact us to get more details.

III Packaging & Delivery

3.1 Packaging

All movable parts with plastic films of paper making machine are wrapped with polystyrene foam plate around and tight films several circles.Fixed machine on the fumigated plywood pallet with iron wire. Wrapped with wooden board around and nailed on.

3.2 Delivery

3.2.1 Delivery Time

Delivery time for smaller machine is 30~45 days after receiving deposit, for bigger machine, it will be longer to make sure its quality.

3.2.2 Delivery Video Clips

Contact us to get more.

IV Company Information

4.1 Company Positioning

Haiyang has more than 30 years’ paper making machine manufacturing & selling experience. We are expertise in manufacturing paper making machine. Our products have been exported to Vietnam, Egypt, Bangladesh, Malaysia, Pakistan, Iran and other countries and regions.

4.2 Company Address

Name:Haiyang Papermaking Machinery Co.,Ltd.

Address: Qinyang county-level city, Zhengzhou city, Henan Province, China

4.3 Travel Time

Beijing to Zhengzhou : 1.5h by air/ 3h by high speed railway;

Guangzhou to Zhengzhou : 2h or so by air/ 6.5 h by high speed railway;

Shanghai to Zhengzhou: 2h by air/ 5h by high speed railway.

4.4 Arrangement for Visiting

After the visiting plan has been confirmed, then we pick you up and book hotel for you.

V Service

5.1 Team Support

①Strong Engineer team: 116 technicians and 12 experts with more than 20 years’ experience. The best choice for your factory design, installation, operation, maintenance and training skills.

②Considerate sales team: Considerately for your need and customize machine for you.

③Post-sale service team: Providing you all-round in-patience after-sale service.

Around-the-clock phones, emails and online service. We will provide you detailed project report, general drawing, workflow design, factory layout drawing to meet your specific requirements.

5.2 Technical Service Overseas Available

We will dispatch professional & thoughtful engineers to instruct you on all relevant paper making machine installation, operation, maintenance, training knowledge,etc.
