Description

Production description

Corrugated cardboard production line:
This line is special equipment for corrugated board production. It mainly includes mill roll stand, single facer, preheater , span bridge, glue machine, double facer, slitter scorer, cut-off, stacker and steam(or oil)heating system and glue making system. The equipment in different type and quantity shall make up of 3 layer,5 layer and 7 layer corrugated board production line, that in advanced, medium and simple level. Its speeds varies from 100m/min to 250m/min, widths from 1200mm to 2500mm. and A,B,C,E UV flute production line can satisfy different customers.


1. 3 5 7 ply corrugated cardboard production line
2. Design speed: 100m/min.,150m/min.,200m/min.,250m/min.,
3. Expiry width: 1400mm, 1600mm, 1800mm, 2000mm, 2200mm, 2500mm,
4. Flute type: UV shape and A,B, C, E ,F, N flute for all the customers to choose
5. Heating method: Electric heat, Oil heat, Steam heat and Gas system

Corrugated Cardboard Production Line Main Configurations

Mainly consist of -- Fully automatic 3 5 7 ply corrugated cardboard production line
1. Mill Roll Stand
2. Preheater
3. Single Facer
4. Span Bridge (Transport Bridge)
5. Glue Machine
6. Double Facer
7. Thin Blade Slitter Scorer

8. NC Cut-off
9. Automatic Stacker & Transport
10. Glue Making System
11. Pneumatic System & Steam System
12. Electricals & Spare Parts

1.Electric Shaftless Mill Roll Stand


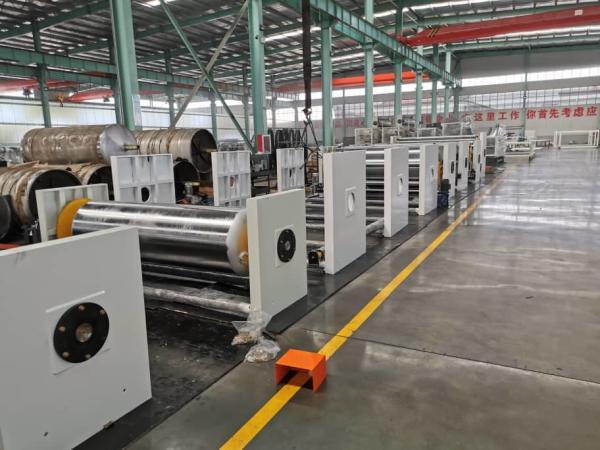

Fully Automatic 3 5 7 Ply Corrugated Carton Box Making Machine

Corrugated Cardboard Production Line Technical Parameters​:

* Operation style of base paper stand: Electrically mechanical type

* Dia. of clip paper: Φ350mm - Φ1400mm

* Max. weight of one side: 2000kg

* Working pressure of air supply: 0.6-0.9 MPa

* Total power: 5.2kw

Corrugated Cardboard Production Line Structural Features

A. The symmetric structure can be installed with two bundles of base paper at the same time used to change papers without halt.

B. This machine adopts the electrical driver to finish lifting up or down, clamping, loosening and centering the base paper.

C. This machine adopts the pneumatic tension controller to adjust the tensile force of base paper.

D. The head of clip paper adopts expansion style.

E. The tension control adopts pneumatic braking, which can also be on-line control together with Paper Splicer.

Max. working width

1600mm

Max working steam pressure:

1.0-1.3Mpa

Steam temperature

160—210 centigrade

Power requirements:

380V, 50Hz

Diameter of heating roller

400mm

2.High Speed Fingerless Type Single Facer

Fully Automatic 3 5 7 Ply Corrugated Carton Box Making Machine

Specification:

Max. machine speed

80m/min

Economic speed

60m/min

Max. working width

1600mm

Max working steam pressure:

1.0-1.3Mpa

Steam temperature

160—210 centigrade

Power requirements:

380V, 50Hz

Diameter of corrugated roller

268mm

Diameter of Press roller .

268mm.

Diameter of preheater roller

280mm

Diameter of Glue roller

215mm

Diameter of doctor roller

105mm

*Design speed: 80m/min.

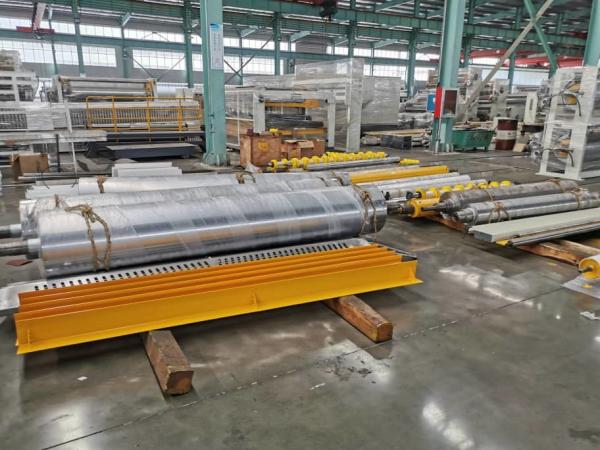

*Corrugated rollers made of 48CrMo alloy steel, with heat treatment for hardness HRC58-60, surface plated with chrome treatment.

*corrugating roller: Dia.280mm with a drum.

*Press roller: Dia.320mm. with drum.

* Vacuum suction Fingerless design provides perfect flute formation in high speed manufacturing.

* Gimbal driver system. Individual immersion oil gear type drive box, separating dynamic vibrations improve running stability, easy and fast for maintenance

*Gluing roller: surface is embossed with netting design and chrome plated.

*Adjustment of upper corrugated roller, pressure roller and glue roller controlled by pneumatic system.

*With preheating and preconditioning rollers.

3.Overhead Bridge

Vacuum tension control ,Electric paper way control.

Fully Automatic 3 5 7 Ply Corrugated Carton Box Making Machine

4.Single ply Gluing Machine For Three ply Line With PLC & Auto Adjust Glue

Fully Automatic 3 5 7 Ply Corrugated Carton Box Making Machine
