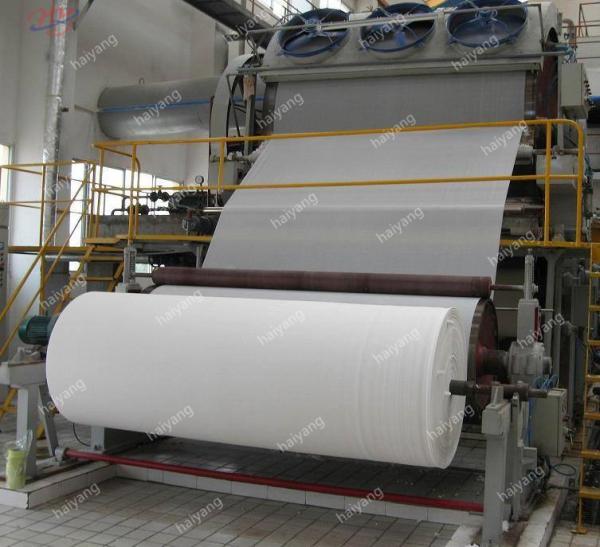

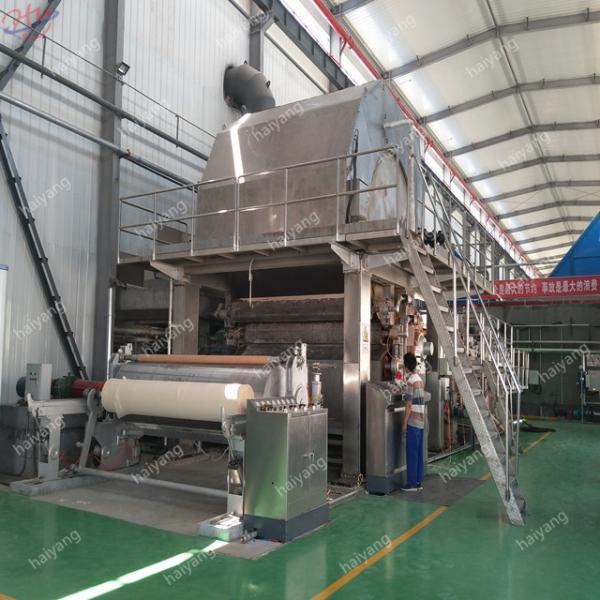

21*6*5m Toilet Paper Making Machine
21*6*5m Toilet Paper Making Machine
21*6*5m Toilet Paper Making Machine
21*6*5m Toilet Paper Making Machine
21*6*5m Toilet Paper Making Machine
21*6*5m Toilet Paper Making Machine
Specifications
Brand Name :
Haiyang
Model Number :
2800mm
Certification :
CE
Place of Origin :
China
MOQ :
1set
Price :
USD 0.2-2 million
Payment Terms :
L/C, T/T
Supply Ability :
1set/60days
Delivery Time :
60days
Packaging Details :
toilet tissue making machine will be packaged in the plywood case.
Condition :
New
After-sales service provided :
Engineers available to service machinery overseas
Voltage :
380V
Weight :
51t
Dimension(l*w*h) :
21*6*5m
Warranty :
1year
Power(w) :
343KW
Automatic grade :
Automatic
Driven type :
Electric
Packaging type :
Cartons
Capacity :
10tons
Description

2800mm 10 ton used toilet tissue paper making machine paper making machinery equipment for paper mill

Product Description

Technical parameter

1. Main product :tissue paper making machine

2. Paper width:2800mm

3. Capacity:15-20 tons

4. working speed:250m/min

5. Drive speed:300m/min

6. Gram weight:14-40gsm

7. Gauge:3800mm

Main structure

1. Headbox

2. Forming part

3. Drying part

4. Air hood

5. Reeling part

6. Lubrication part

7. Control system

8. Basic part

Technical parameter

Equipment list

1. Wire part

Wire part
1 Air cushion Head box 1set 3050mm
2 Forming board 1set 550mm*3300mm
3

Three dehydration boards

 2groups 500mm*3300mm
4 Single plate dehydrated 4groups 75mm*3300mm
5 Vacuum water chamber 2groups 300mm*3300mm
6 Breast roll 1 550mm*3300mm
7 Net roll displacement 1 600mm*3300mm
8

Guide roller

First lead roller

According to the drawing

1

250mm*3300mm

300mm*3300mm
9 Automatic corrector device 1set
10 Electric tension device 1set
11 Breast roll scraper 1set
12 Guide roller scraper 1set
13 Spray pipe
14 Water device 1set
15 Roller paper tank mixer 1set
Dryer part
17

Dryer

 1set 3660mm*3250mm
18 Network correction device 1set
19 Tensioner 1set
20 Guide roller according to the design 216mm/3300mm
21 Couch roller 1 650mm*3250mm
22 Felt stretch roller 1 250mm*3300mm
23 Dryer scraper 2sets
24 Frame
25 Suction box 2sets
26 High pressure water spray pipe 1
27 Pipe 1
28 Water bearing plate 1
29 Roller fountain 1
30 Walking board
Air hood part
horizontal pneumatic reel machine
31 Reel cylinder 1set 600*3100mm
32 Frame and leverage
33 Main arm device
34 Deputy arm device
35 Paper reeling roll 3 73mm*3100mm
36 Pneumatic operation cabinet 1set
FAQ

1. Are you trading company or manufacturer?
We are manufacturer,and we produce all kinds of paper making machine to meet your demands

2. How could i choose right paper making machine?
When ordering ,please specify the raw material,trimmed width,and capacity you want.

3. How long is guarantee period for paper making machine?
12 months after formal operational

4. What is the delivery time if we make a order from you?
Usually,the delivery time for smaller machines is 30-45 days after receiving deposit,but for bigger machines,it will be longer to make sure the equipment quality.

5. What is your payment terms?
T/T(telegraphic transfer)30% as deposit,and 70%balance paid before shipment.

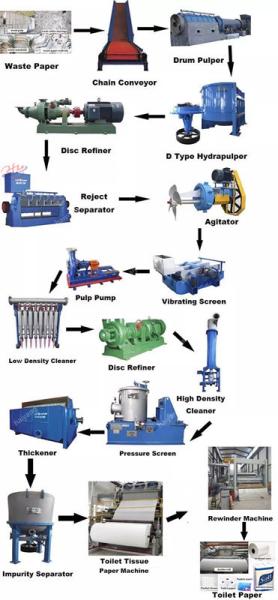

Raw materials

Different raw materials, different usage, can produce different materials of toilet paper.

Drawing

Paper machine part

Pulping machine part

Finished paper

Haiyang workingshop

Packaging & Shipping
Different parts packed by different materials:
--paper machine frame will be packed by plastic foam.
--paper machine accessories parts will be packed in wooden cases.very small parts packed by carton.
--paper pulping machine packed by water-proof PVC film,and outside packed by wood cases.

Tighten Packaging, Detailed Checking:

1. Fixed all the movable parts with plastic films.
2. Polystyrene foam plate wrapped around.
3. Wrapped with tighted plastic films several circles.
4. Fixed machine on the fumigated plywood pallet with iron wire.
5. Wrapped with wooden board around and nailed on.
Company Information
Our Company

Qinyang Haiyang Paper Machinery Co., Ltd is a professional manufacturer of papermaking equipment.The company is located in Xili industrial district, Qinyang City, Henan province.It was founded in 1990.There are more than 100 employees,covering 1200sq.m.The company's leading products are 787-3800mm series toilet paper machine,1575-4800mm cylinder paper machine,fourdrinier wire paper machine,superimposed wire paper machine, pulping equipments and further processing equipments.We can also provide paper mill renovation and renewal programs and service.

A workman must sharpen his tools if he is to do his work well.High quality products need advanced equipment to achieve.Our company now own 4 manufacturing workshops,35 CNC machining equipments,26 professional technicians,20 engineers,which effectively guarantees the accuracy and performance of the products.Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction.

Our Services

Pre-Sales Service

After-Sales Service
How to get your suitable machine and production lines?1.Inquiry:contact us by email,phone,wechat etc.2.Communication:after getting our quotation,you confirm the paper machine model and specify the items you desire.

3.Contract:place order and signing the agreement

files.

4.Production:as soon as we received first payment,we will start to produce machines.we will notify client to book the ship 15days in advance.5.Delivery: all the machines will be shipped according to contracted items.6.Installation:we will send engineers/technicians to install the whole production line.

1. Our company view adhering to the "excellent quality, customer satisfaction" service concept,to provide you with excellent products and perfect service.2. Our company keep the contract and reputation. Quality first, products guarantee one year, as it is quality problem,free replacement.3. For every purchase of our company's products, the company can send technicians to guide the installation and debugging, and can undertake the design of process and equipment installation.
