Logo Designed Wholesale Printing Paper Cup Fans Raw Material With Single Double PLA Coated
Logo Designed Wholesale Printing Paper Cup Fans Raw Material With Single Double PLA Coated
Logo Designed Wholesale Printing Paper Cup Fans Raw Material With Single Double PLA Coated
Logo Designed Wholesale Printing Paper Cup Fans Raw Material With Single Double PLA Coated
Logo Designed Wholesale Printing Paper Cup Fans Raw Material With Single Double PLA Coated
Logo Designed Wholesale Printing Paper Cup Fans Raw Material With Single Double PLA Coated
Specifications
Brand Name :
XHY
Model Number :
XHY
Certification :
FSC
Place of Origin :
CHINA
MOQ :
2 TON
Price :
Depending on your quantity and design
Payment Terms :
T/T
Supply Ability :
2000 Tons Per Month
Delivery Time :
15-30 days
Packaging Details :
25KG/Pack 60×60×50Cm
Pulp Style :
Virgin
Feature :
Waterproof/Heat Insulation
Eco-friendly :
Yes
Shipping :
Via Sea Transport
Printing Type :
Offect Printing/Flexographic Printing
Paper Weight :
150-350 gsm
Key Words :
Paper Cup Fans
Printing Logo :
1-7 colors
Use For Packing :
Customized Packing Way Is Acceptable
Size :
Various Sizes Available
Design :
Depending on your demends
Branding :
Can Be Branded With Logo or Word
Material :
100% Virgin Wood Pulp
Coating Side :
Single or Double Side
Characteristic :
Food Grade
Package :
Packed In Outer Carton
Condensation Control :
Yes
Custom Order :
Accept
Description
Product Name: Logo Designed Wholesale Printing Paper Cup Fans Raw Material With Single Double PLA Coated
Brand NameXHY
CertificationFSC
PE Weight9-26gsm
Paper Weight150-350gsm
Core Dia3 inch, 6 inch
UsagePaper Cups, Smoothie, Various Drinks
Color1-7 Colors
FeatureGreaseproof, Condensation control
Material100% Wood Pulp
Size2.5oz-32oz
MOQ2 Tons
Coating SideSingle or Double Side
Payment30% advance by T/T, balance paid before shipment
Eco FriendlyYes
PackingPacked In Outer Carton

The Manufacturing Process of Paper Cup Fan Blanks

The paper cup "fan" is the pre-cut, fan-shaped piece of paper that is rolled into a cone and becomes the body of a paper cup. Its manufacturing is a precise and automated process, primarily involving the following steps:

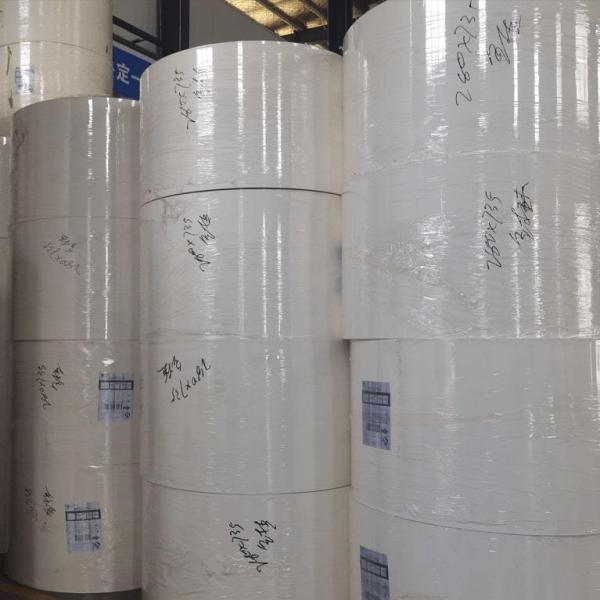

  1. Raw Material Preparation: Large rolls of paper (paperboard) are used. This paper is often coated with polyethylene (PE) or polylactic acid (PLA) to make it waterproof.

  2. Printing (Optional): If the cups require patterns or logos, this is the stage where the paper web is printed using flexographic or offset printing presses.

  3. Lamination (If applicable): For cups requiring extra insulation or a different internal/external finish, an additional layer of film might be laminated to the paper.

  4. Die-Cutting: This is the core step for creating the "fan" shape. The large roll of printed and coated paper is fed into a die-cutting machine. A specialized steel mold (die), shaped like a fan or trapezoid, stamps out the individual fan blanks from the paper web at high speed.

  5. Waste Stripping: The leftover paper skeleton (the "matrix") from the die-cutting process is rewound and discarded for recycling.

  6. Counting and Stacking: The correctly cut fan blanks are automatically counted and stacked into neat piles.

  7. Packaging and Shipping: The stacks of fan blanks are packaged in cartons or shrink-wrapped to protect them from moisture and damage. They are then shipped to paper cup manufacturers.

At the cup factory, these fan blanks are fed into a cup-forming machine where they are rolled into a cone, the side seam is sealed, the bottom is attached, and the rim is curled to form a complete cup.

FAQ:
1. Do you have Certifications for the PE paper that is suitable for food contact?

Paper obtained SGS, it's healthy for food contact. According to customer's requirement, we can offer Health Certificate (HC); Test report from MA(MA); SGS certificate(SGS); China National Accreditation Service for Conformity Assessment (CNAS); Embassy certification.

2. Paper Size, Specification

Q: Can you cut roll to the different sizes of sheets as we want? Or there has some standard size for sheets?
A: We can cut size based on your requirement. There is no standard size.
Q: Can you tell me the exact dimension of the paper (width * length)?
A: Different cup moulds, paper size is different. Please inquiry to get your exact size.

3. Paper Gram Choosing for cups

Q: What is the optimum paper gram for hot drinks and for cold drinks?
A: Usually, hot drink using single PE coated paper or PBS coated paper; Cold drink use double PE coated cup paper or double PBS coated cup paper. Different cup size and different market using different gram. Please inquiry to get our suggestion!

4. Cup fan pcs/ton

Q: How many pieces of paper cups can we make from each ton paper?
A: Please send us your cup drawing-layout (means the opened dimension) Or tell us your cup size (Top diameter /Bottom diameter /Wall Height). We will estimate to you.

5. Bottom pcs/ton

Q: How many cup bottom are needed for the 1ton precut & printed paper (cup body)?
A: Usually the proportion is about 1:0.2 (means 1ton paper need about 0.2tons bottom paper, just for reference!). Certainly, different cup size, different gram, it's different. Please inquiry details!

6. Paper Printing

Q: Can you produce the printed & cut cup paper?
A: Yes, we can do flexographic (max 6colors printing)or offset printing, and Auto-cutting to be the shapes you need, such as paper cup blanks.
