Specifications
Brand Name :
PAPA
Model Number :
P160
Certification :
CE certificate
Place of Origin :
CHINA
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T or L/C at sight
Supply Ability :
80sets/month
Delivery Time :
25-30days
Packaging Details :
wooden case
Product Shape :
ball shape
Dimention :
2400*860*1300MM
Material :
304 Stainless Steel
Power :
1.75kW
Product Weight :
10-250g
Warranty :
1 Year
Application :
Making Protein Balls
Features :
Automatic, Easy to Operate, High Efficiency
Description
Automatic Protein Ball Production Line | For Peanut-Filled, Cocoa-Coated Energy Balls
This integrated production line is engineered for creating market-ready protein balls with a creamy peanut center and rich cocoa powder coating. Designed to meet the quality and compliance standards of European, Middle Eastern, and South American markets.

  1. Your End-to-End Solution for Premium Protein Ball Manufacturing

    The global demand for convenient, healthy snacks is surging. This automated line empowers you to produce premium protein balls that combine a soft, sticky date-based exterior, a creamy peanut butter core, and a dusting of cocoa powder—addressing the complex challenges of multi-step production with a single, seamless system.

    The Integrated Production Process:

    1. Mixing & Extrusion: The base mixture (e.g., dates, oats, protein powder) is fed and extruded. A central filling system simultaneously injects a precise stream of peanut butter.

    2. Forming & Cutting: The filled rope is formed into perfect spheres and cut to weight.

    3. Pre-Coating (Optional): A light pre-dusting of starch or powder can be applied to control surface tackiness.

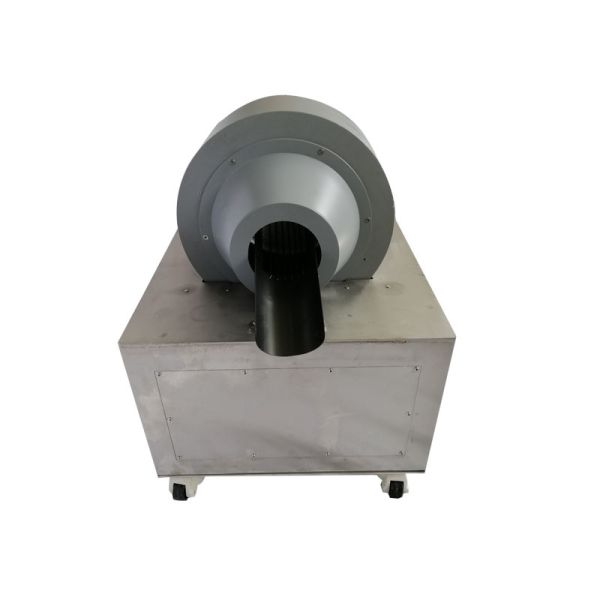

    4. Cocoa Powder Coating: Balls travel through a gentle powder coating drum, ensuring an even, consistent layer of cocoa powder.

    5. Polishing & Final Output: A polishing step removes excess powder for a clean finish, and balls are discharged for packaging.

    Technical Specification Table



    Parameter Description
    Production Capacity 3,000 - 5,000 pcs/hour (depending on ball size)
    Ball Diameter 20mm - 35mm (adjustable)
    Ball Weight Range 15g - 40g (easily adjustable)
    Filling Ratio (Peanut) 10% - 25% (precisely controllable)
    Power Requirements Configurable for 380V/50Hz or 480V/60Hz and other regional standards.
    Control System Multi-language PLC Touchscreen (English, Spanish, Arabic, etc.).
    Construction Material Contact Parts: 304 Stainless Steel (316L optional).
    Line Composition Mixer, Extruder with Filling, Forming Roller, Coating Drum, Polishing Drum.

    Target Markets & Regional Value

    Ideal for Snack Producers In:

    • Europe & North America: Catering to the health-conscious market with clean-label, high-protein, gluten-free, or vegan products.

    • Middle East: Producing HALAL-certified energy balls using popular local ingredients like dates and nuts.

    • South America: Utilizing regional agricultural products (peanuts, cocoa) to create nutritious snacks for domestic and export markets.

    Your Competitive Edge:

    • Speed to Market: Rapidly launch a finished, professional-grade product.

    • Operational Efficiency: One continuous line replaces multiple manual steps, slashing labor costs and waste.

    • Brand Consistency: Guarantee every product looks and tastes identical, building consumer trust.

    • Export Readiness: Built with the documentation and material quality needed for international trade.


Automatic Protein Ball Production Line with 1.75kW Power and 3,000 - 5,000 pcs/hour Capacity for Peanut Filling Automatic Protein Ball Production Line with 1.75kW Power and 3,000 - 5,000 pcs/hour Capacity for Peanut Filling Automatic Protein Ball Production Line with 1.75kW Power and 3,000 - 5,000 pcs/hour Capacity for Peanut Filling Automatic Protein Ball Production Line with 1.75kW Power and 3,000 - 5,000 pcs/hour Capacity for Peanut Filling Automatic Protein Ball Production Line with 1.75kW Power and 3,000 - 5,000 pcs/hour Capacity for Peanut Filling

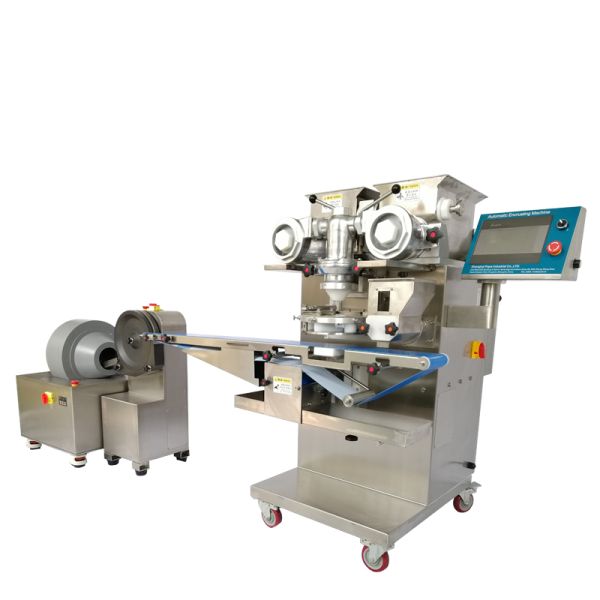

Encrusting Machine Specifications
Model P160
Capacity (pics/min) 60-90
Condition New
Voltage (v) 220 /380
Material 304 stainless steel
Motor Chinese brand (can be changed as customer request)
Converter Delta
Packing weight (kg) 220kg
Power (kw) 2
Products weight (g) 10-250
Application
Automatic Protein Ball Production Line with 1.75kW Power and 3,000 - 5,000 pcs/hour Capacity for Peanut Filling Automatic Protein Ball Production Line with 1.75kW Power and 3,000 - 5,000 pcs/hour Capacity for Peanut Filling Automatic Protein Ball Production Line with 1.75kW Power and 3,000 - 5,000 pcs/hour Capacity for Peanut Filling Automatic Protein Ball Production Line with 1.75kW Power and 3,000 - 5,000 pcs/hour Capacity for Peanut Filling Automatic Protein Ball Production Line with 1.75kW Power and 3,000 - 5,000 pcs/hour Capacity for Peanut Filling Automatic Protein Ball Production Line with 1.75kW Power and 3,000 - 5,000 pcs/hour Capacity for Peanut Filling Automatic Protein Ball Production Line with 1.75kW Power and 3,000 - 5,000 pcs/hour Capacity for Peanut Filling Automatic Protein Ball Production Line with 1.75kW Power and 3,000 - 5,000 pcs/hour Capacity for Peanut Filling Automatic Protein Ball Production Line with 1.75kW Power and 3,000 - 5,000 pcs/hour Capacity for Peanut Filling Automatic Protein Ball Production Line with 1.75kW Power and 3,000 - 5,000 pcs/hour Capacity for Peanut Filling Automatic Protein Ball Production Line with 1.75kW Power and 3,000 - 5,000 pcs/hour Capacity for Peanut Filling
Automatic Protein Ball Production Line with 1.75kW Power and 3,000 - 5,000 pcs/hour Capacity for Peanut Filling

Automatic Protein Ball Production Line with 1.75kW Power and 3,000 - 5,000 pcs/hour Capacity for Peanut Filling


Automatic Protein Ball Production Line with 1.75kW Power and 3,000 - 5,000 pcs/hour Capacity for Peanut Filling

Machine Working Videos
Automatic stuffed cookie dough ball production line Cookie ball making machine

Frequently Asked Questions (FAQ)

Q1: Can the machine handle the stickiness of date paste and peanut butter?
A: Absolutely. The extruder and forming systems are specifically designed with non-stick surfaces and precise temperature control to handle high-viscosity, sticky ingredients without clogging.

Q2: How is the cocoa powder coating kept even and controlled to prevent waste?
A: The coating drum uses a gentle tumbling action and a recycling system. Excess powder is automatically sifted and returned to the coating process, minimizing waste and ensuring a consistent, thin layer.

Q3: Is the machine compliant with HALAL or other religious/cultural certifications?
A: Yes. The machine is constructed with appropriate materials and can be supplied with the necessary documentation to support your HALAL, Kosher, or other certification processes.

Q4: Can we test the line with our own recipe?
A: Definitely. We highly recommend a free production test at our facility. Send us your raw materials, and we will produce sample protein balls for you and provide a full video report.
