Specifications
Warranty :
12 months
Dimensions :
1400mm x 1200mm x 950mm
Power Supply :
Electric 380V 3-phase
Machine Weight :
750kg
Delivery Time :
20 days
Use :
compressing herbal tea leaves into compressed tea bricks
Brand Name :
PAPA
Price :
negotiable
Production Capacity :
150-300 kg/hour
Place of Origin :
shanghai, China
Max Pressing Force :
35 Ton
Supply Ability :
20 sets per month
Packaging Details :
wooden case
Output Shape :
round, square, rectangle, custom
Model Number :
PLD-24-35Y
Certification :
CE
MOQ :
1 set
Payment Terms :
T/T
Description

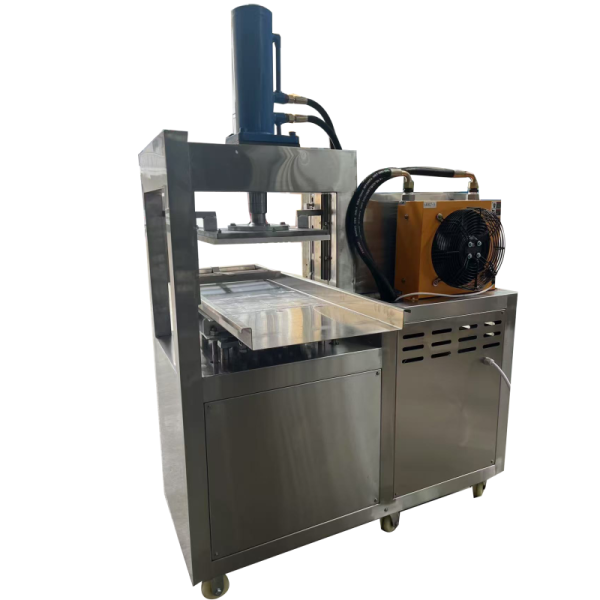

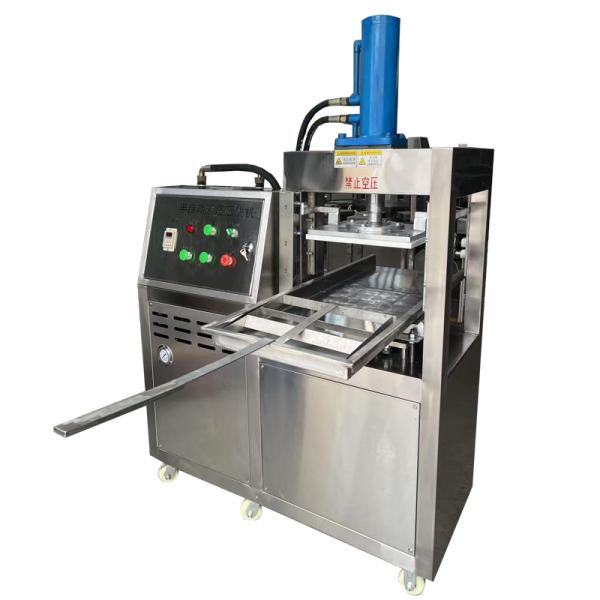

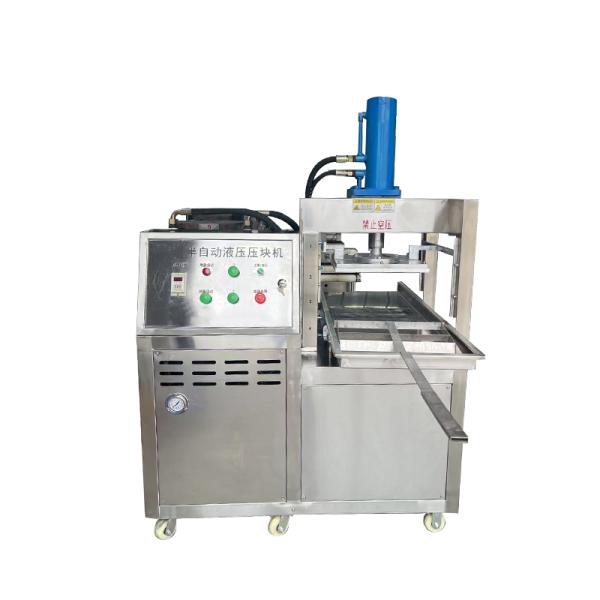

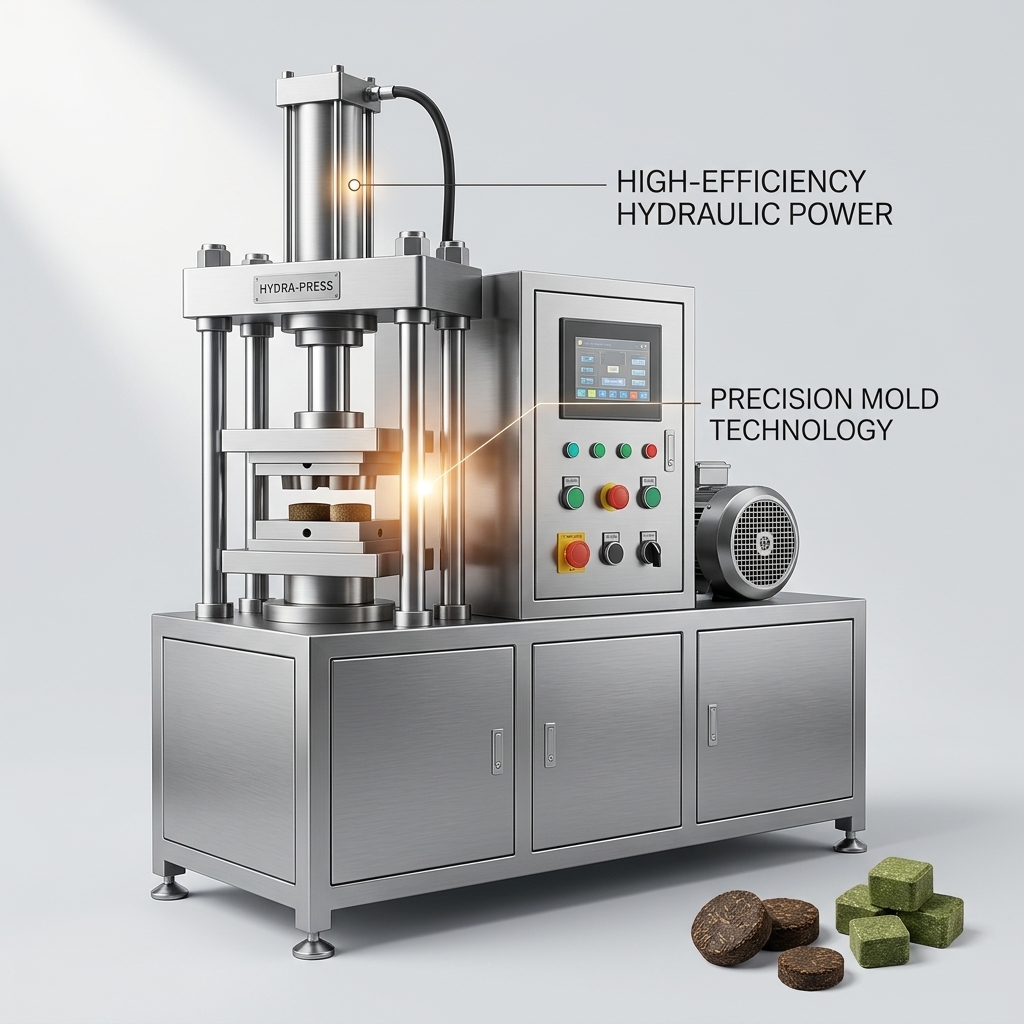

Product Overview

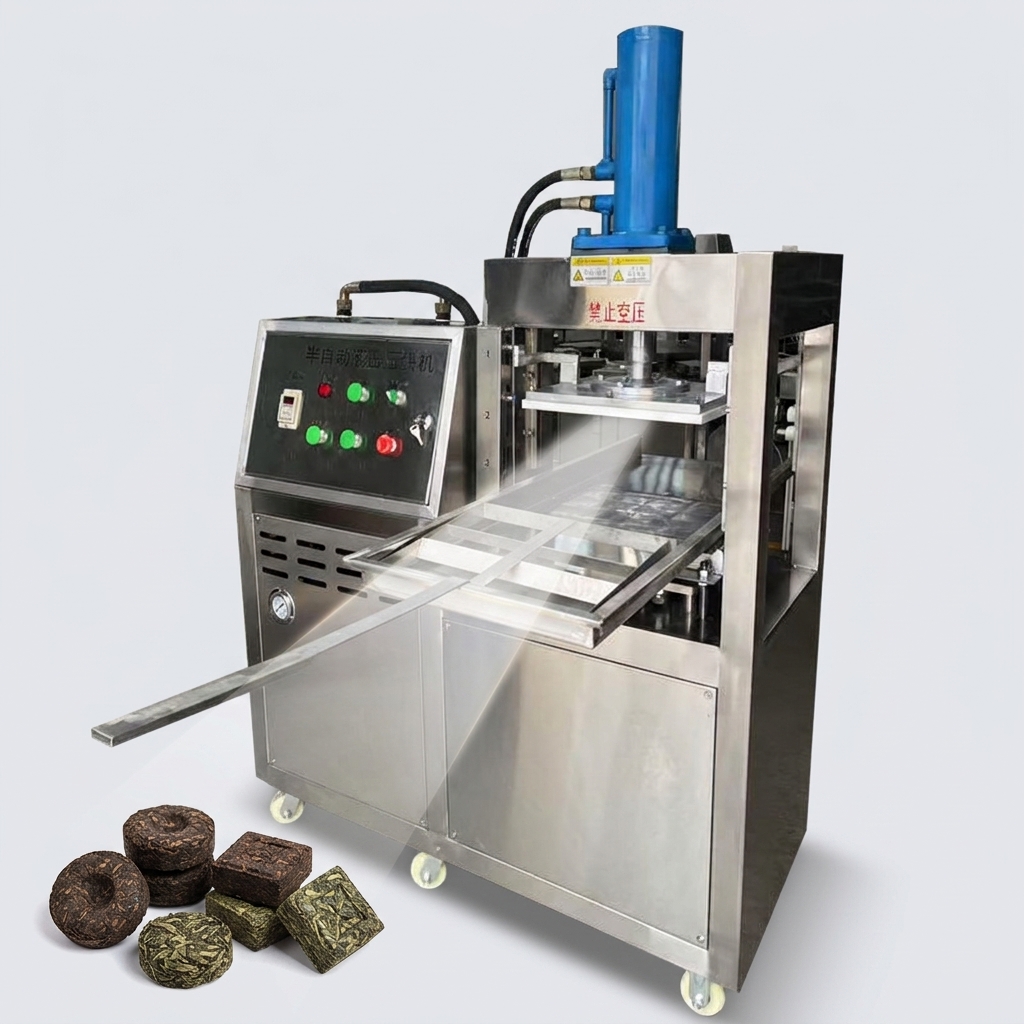

This semi-automatic hydraulic forming machine is developed for compressing loose herbal tea leaves and tea powder into compressed herbal tea bricks (similar to Pu-erh tea cake / compressed tea brick). It is suitable for herbal tea brands, tea factories and tea gift-set producers.
Work flow: Manual feeding → Automatic hydraulic pressing → Embossing logo/pattern → Automatic demolding → Manual collect finished blocks.
Only 1 operator required. Produced blocks feature uniform density, neat shape, smooth surface and low breakage rate; convenient for storage, transportation and retail packaging.

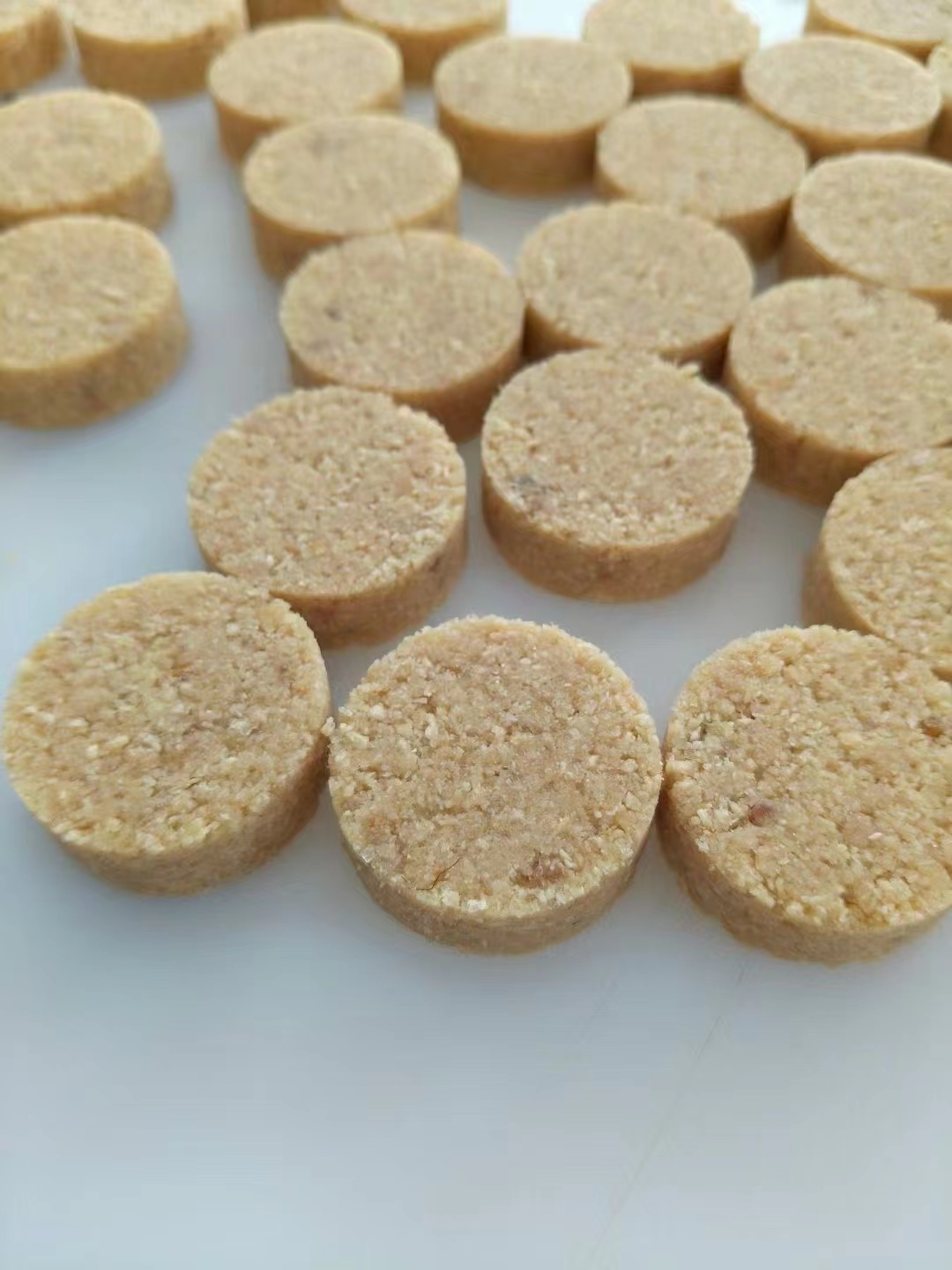

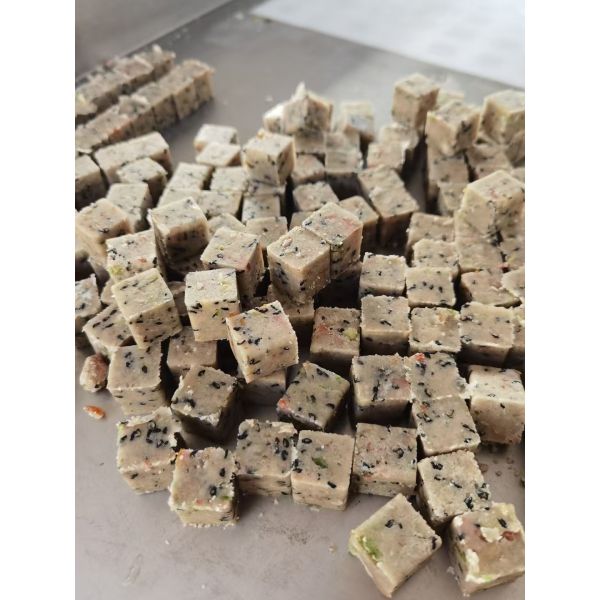

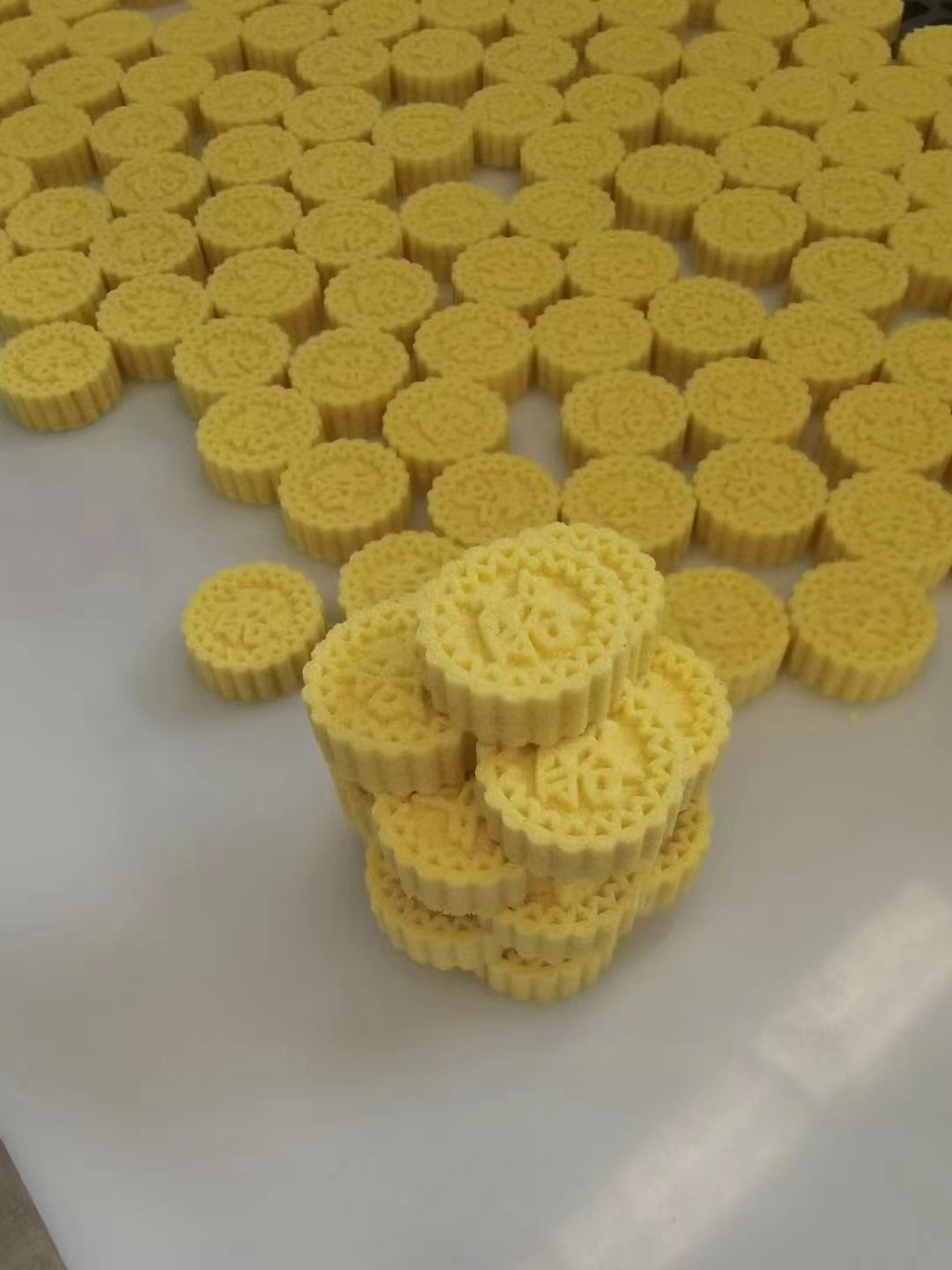

Main Finished Product: Compressed Herbal Tea Brick

  • Material: Dried herbal tea leaves, tea powder, blended herbal tea mix

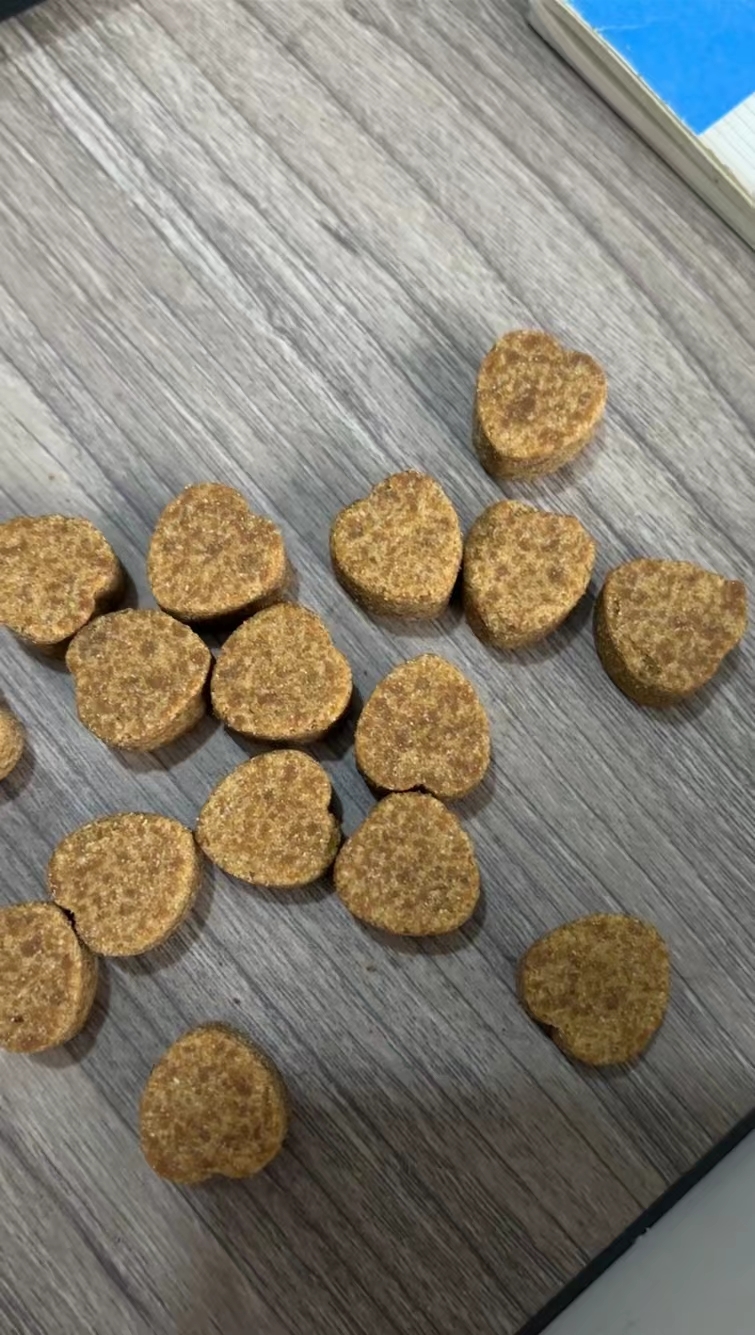

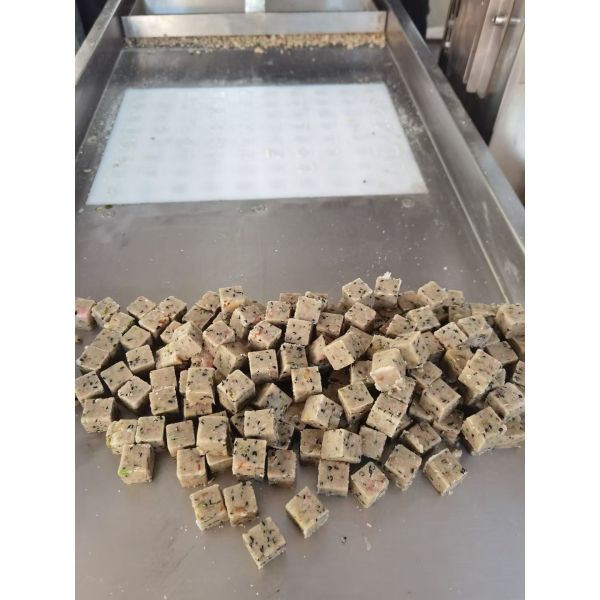

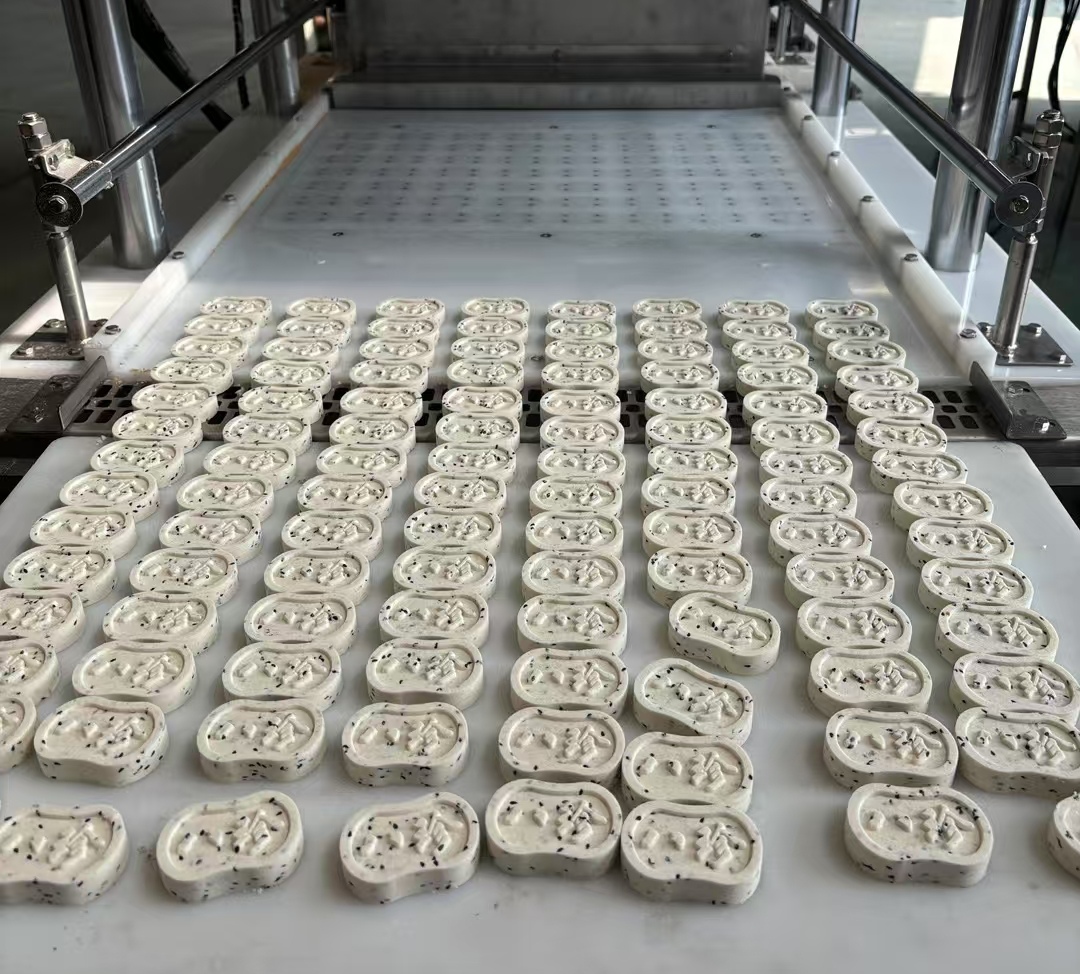

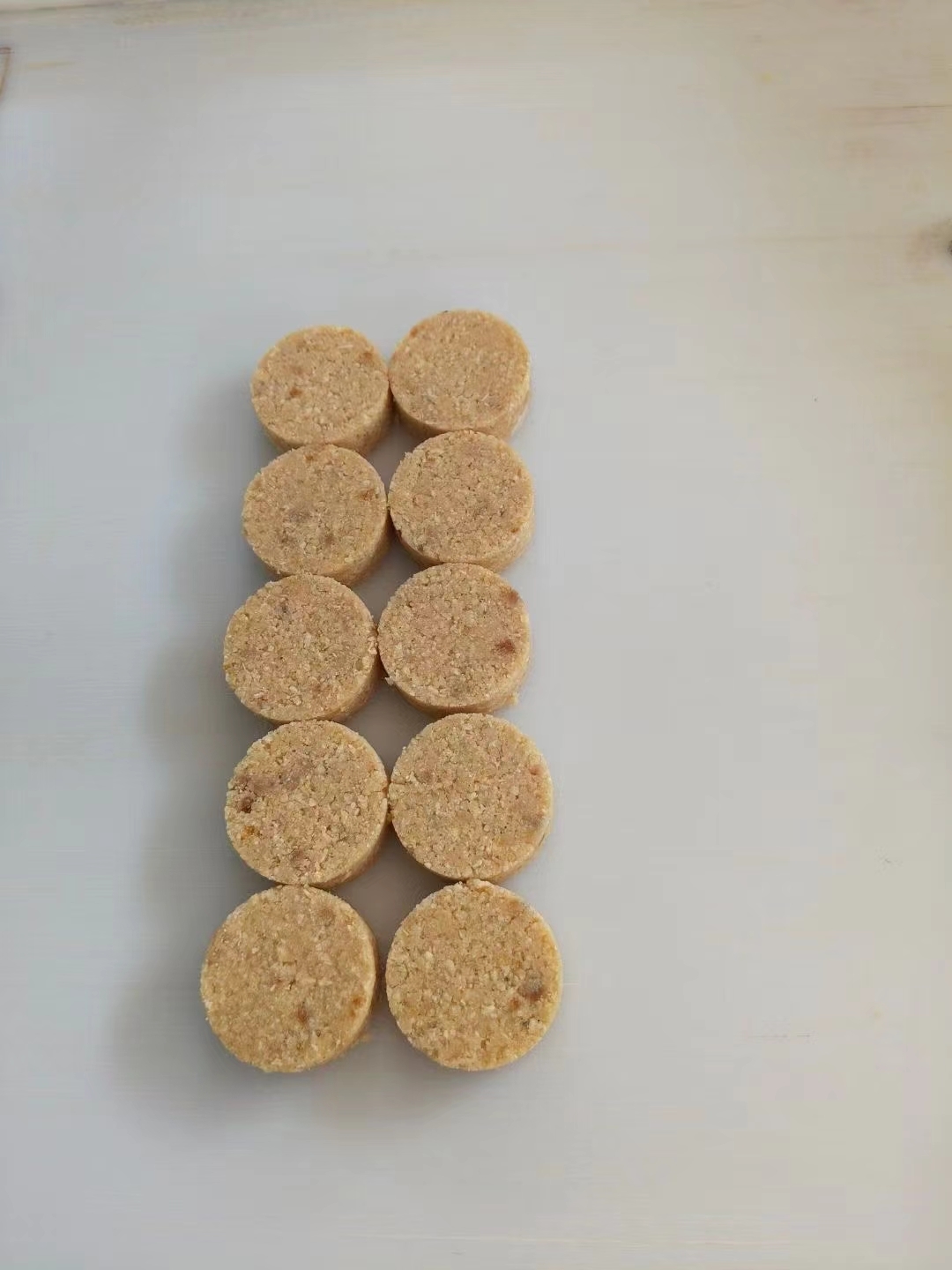

  • Shape: Round cake, square brick, rectangle, nest shape, custom shape

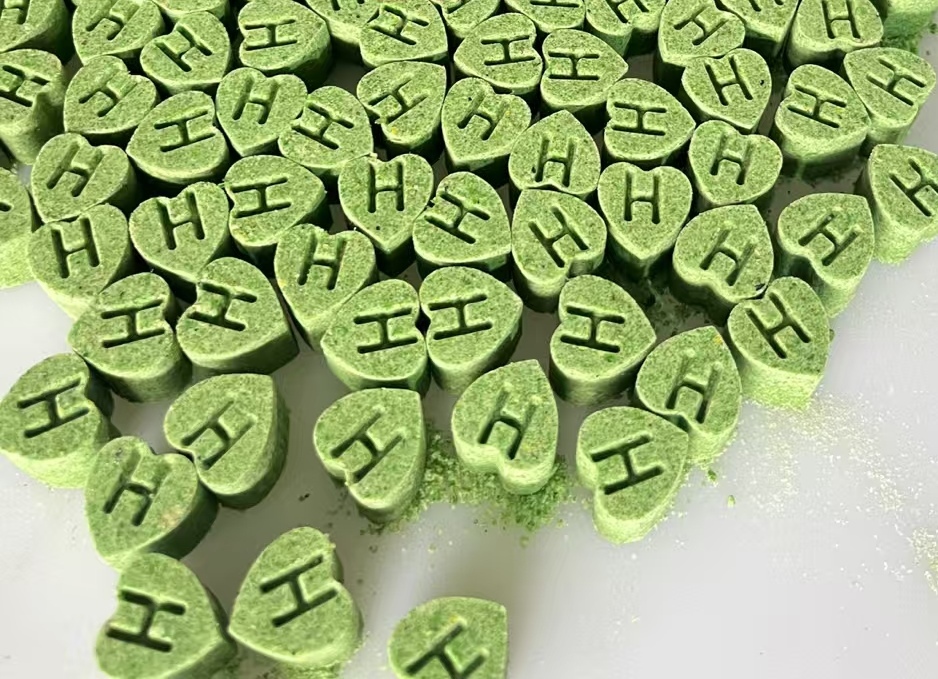

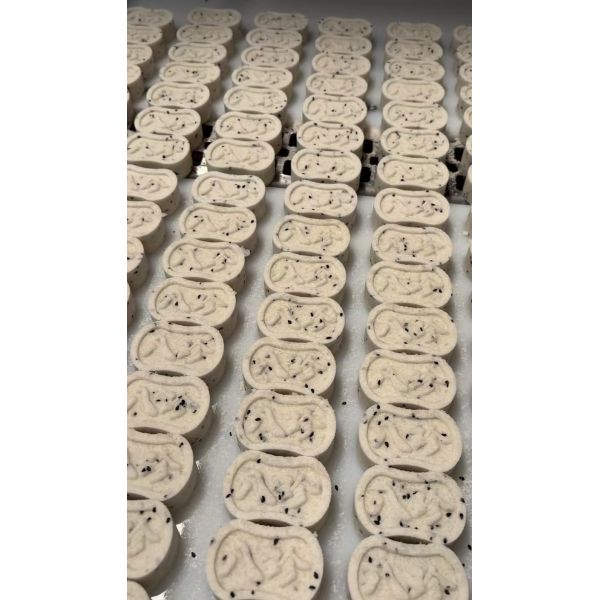

  • Embossing: Custom logo, text, pattern available on block surface
  • Feature: Consistent compactness, neat shape, suitable for aging, storage and transportation; steam softening recommended before pressing.

Core Advantages

  1. Semi-automatic working, labor-saving
    Manual feeding & finished-product collection; pressing, embossing, demolding complete automatically. One worker can run the whole machine.
  • Adjustable hydraulic pressure & thickness
    Press tonnage and brick thickness are adjustable on control panel, set proper compactness to keep tea aroma and shape without over-compression.
  • Food-grade stainless-steel contact parts
    All parts touching tea leaves adopt stainless steel, easy to clean, meet food-production hygiene requirement.
  • Custom mold & logo embossing
    Custom shape, dimension and logo embossing available. One machine can produce different tea brick sizes by changing molds.
  • Solid steel frame, stable long-time running
    Heavy-duty welded steel frame ensures stable continuous production, low maintenance, long service life.

    • Working Principle

    1. Worker spreads powder evenly into mold cavity.
    2. Start cycle: hydraulic cylinder goes down to compress powder under preset pressure. Logo/pattern embossed during pressing.
    3. Press head lifts up, automatic ejection pushes finished block out from mold.
    4. Worker takes out finished blocks, moves to packing or curing area.
    5. Refill powder for next production cycle.
    Note: Machine only completes pressing forming. Post drying/curing may be required depending on raw material and binder used.

    Technical Parameters (PLD-24-35Y reference)

    Item Specification
    ModelPLD-24-35Y
    Control modeSemi-automatic hydraulic control
    Power5.0 kW
    Voltage380V 3-phase (customizable 220V / 415V)
    Capacity150-300 kg/h (depends on block size & weight)
    Max pressing force35 Ton (adjustable)
    Block thickness range3-35 mm customizable
    MoldCustom shape & size, logo embossing available
    Machine dimension1400×1200×950 mm
    Net weight750 kg
    Contact materialFood-grade stainless steel
    Warranty12 months (excluding wearing mold parts)

    Applicable Raw Material & Market

    Suitable: dried herbal tea leaves, tea powder, fermented tea material (steam-softened recommended)
    Target customers: tea factories, herbal tea brands, tea gift-set producers, traditional tea cake workshops
    Main export markets: Southeast Asia, East Asia, Europe tea consuming markets
    Important Notes
    1. Tea leaves are recommended to be steam-softened before pressing for better binding and neat shape.
    2. Machine only presses blocks. Drying/curing is required after pressing to reduce moisture.
    3. Molds are wearing parts; customized molds can be supplied per your drawing or sample.

    Our Service

    1. Mold custom: shape, dimension, logo embossed on block surface.
    2. Overseas voltage adaptation.
    3. Factory test run before shipment; test pressing with customer sample material acceptable.
    4. English operation manual, installation guide, video support.
    5. 12-month machine warranty, lifelong technical consultation.

    FAQ

    Q1: Can I make different size tea bricks on one machine?A: Yes, just replace customized molds.
    Q2: How many workers are needed?A: Only 1 worker for feeding and collecting.
    Q3: Can the machine press round tea cakes?A: Yes, round, square and custom shapes are available by changing molds.
    Q4: Can the machine print my brand logo on the tea brick?A: Yes, we engrave your logo/text on the customized mold.
    Q5: Do I need to steam tea leaves before pressing?A: Steam softening is recommended for traditional compressed tea brick to bind leaves tightly.
