Specifications
Warranty :
12 months
Brand Name :
PAPA
Price :
negotiable
Packaging Details :
wooden case
Place of Origin :
shanghai, China
Dimensions :
1400mm x 1200mm x 950mm
Payment Terms :
T/T
Power Supply :
Electric 380V 3-phase
Certification :
CE
MOQ :
1 set
Machine Weight :
750kg
Delivery Time :
20 days
Supply Ability :
20 sets per month
Use :
compressing camel milk powder into uniform tablets
Max Pressing Force :
35 Ton
Output Shape :
round, square, custom
Production Capacity :
150-300 kg/hour
Model Number :
PLD-24-35Y
Description

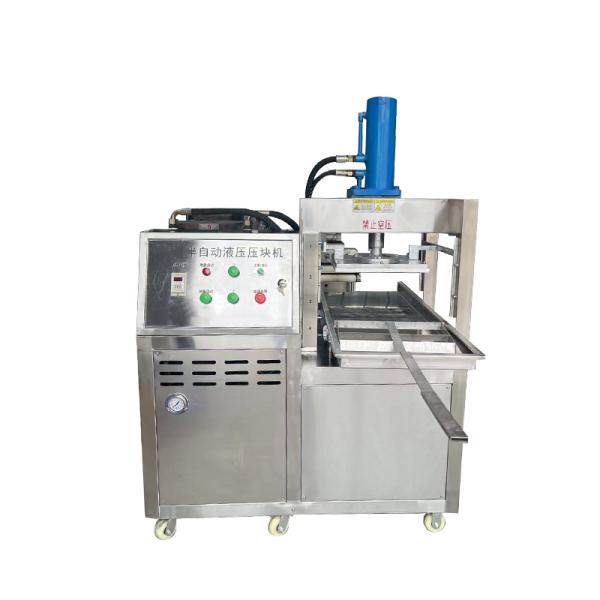

Product Overview

This semi-automatic hydraulic forming machine is developed for compressing camel milk powder (with food-grade binder) into uniform camel milk tablets. It is suitable for camel milk powder processors, dairy product manufacturers and nutritional supplement factories.
Work flow: Manual feeding → Automatic hydraulic pressing → Embossing logo/pattern → Automatic demolding → Manual collect finished blocks.
Only 1 operator required. Produced blocks feature uniform density, neat shape, smooth surface and low breakage rate; convenient for storage, transportation and retail packaging.

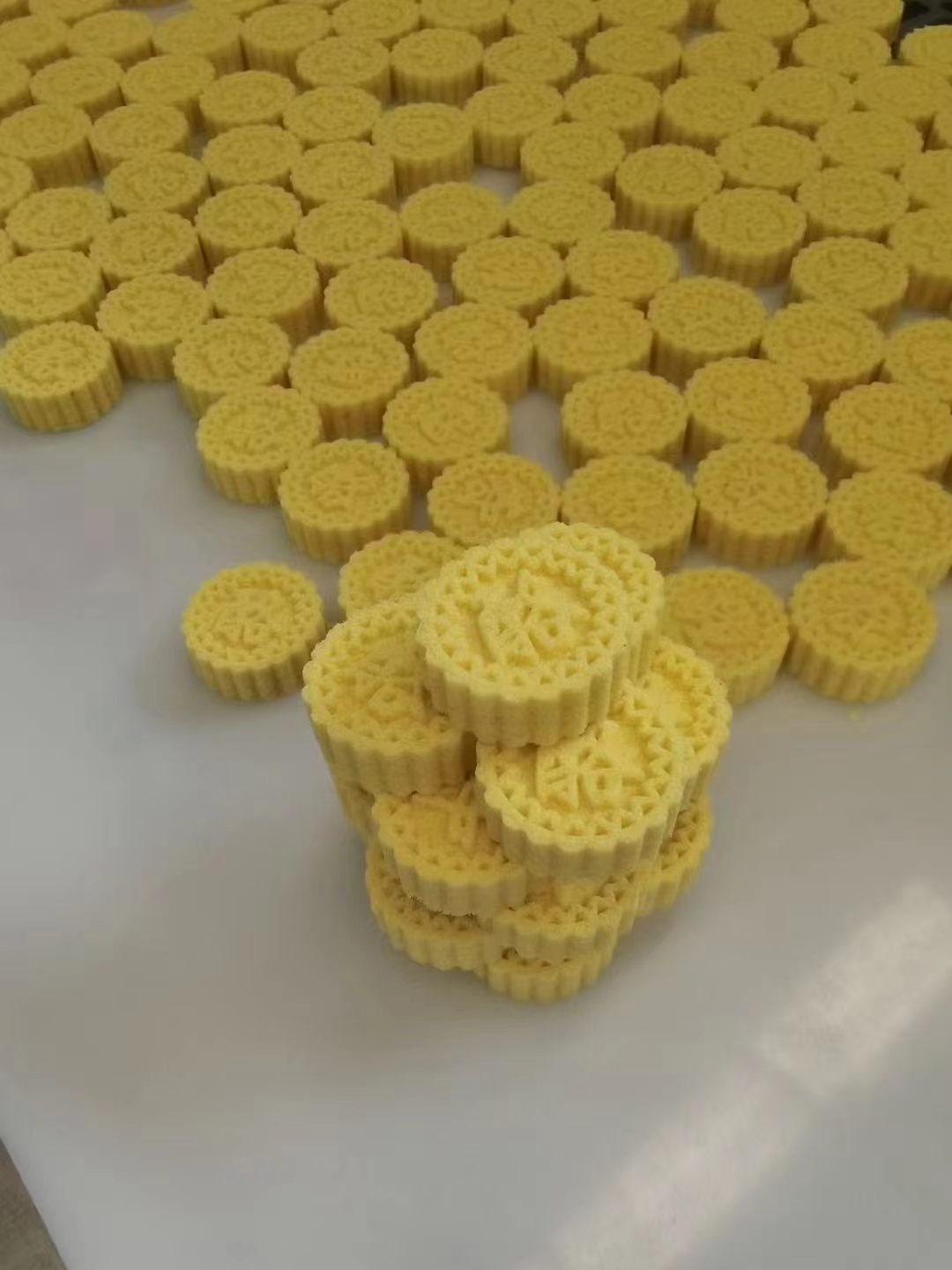

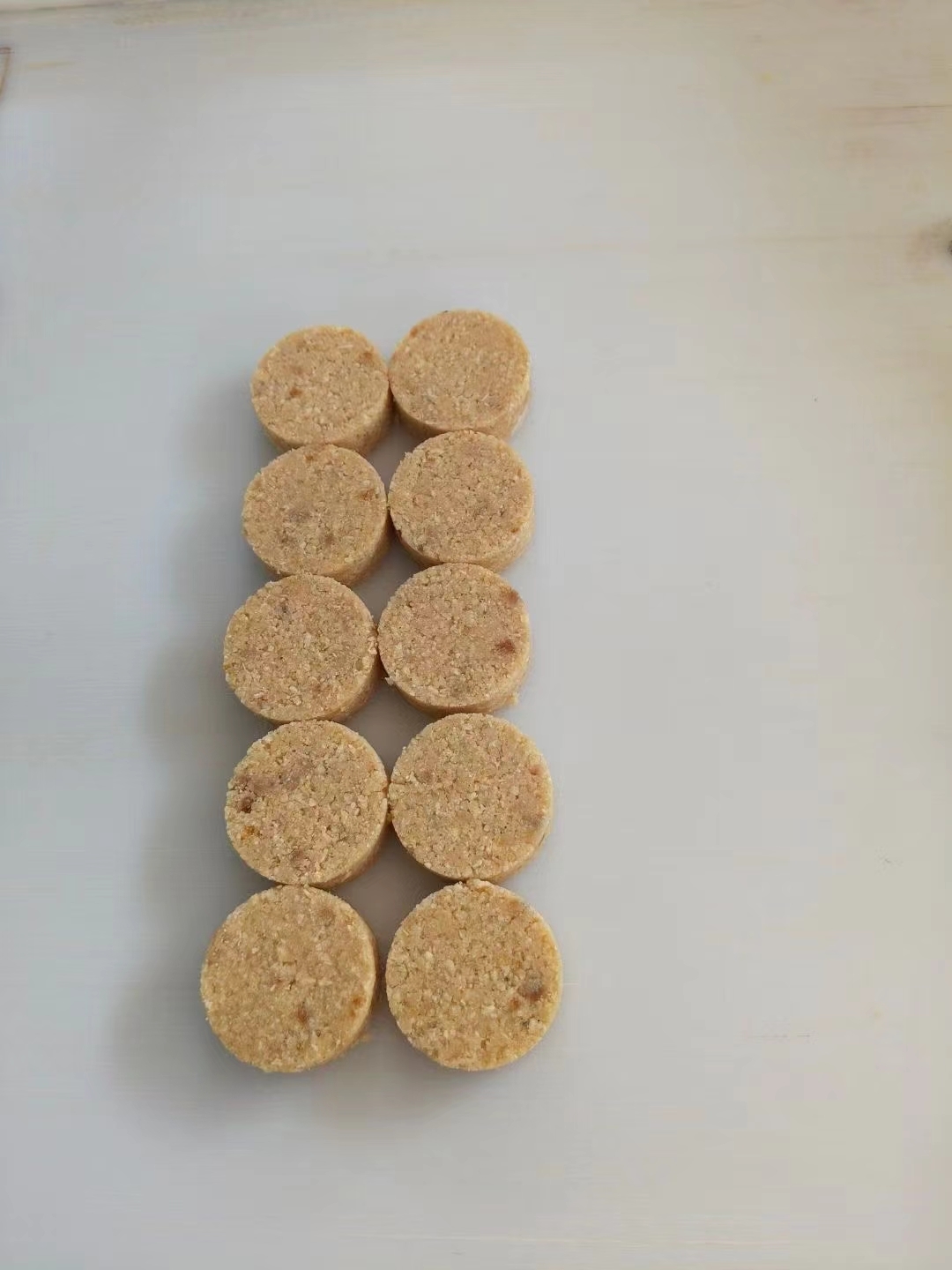

Main Finished Product: Camel Milk Tablet

  • Material: Camel milk powder with food-grade binder, lactose, flavouring
  • Shape: Round tablet, square tablet, heart shape, custom shape
  • Embossing: Custom logo, text, pattern available on block surface
  • Feature: Uniform density and thickness, smooth surface, high dimensional accuracy; convenient for retail bottle packaging.

Core Advantages

  1. Semi-automatic working, labor-saving
    Manual feeding & finished-product collection; pressing, embossing, demolding complete automatically. One worker can run the whole machine.
  • High-precision thickness control
    Adjustable pressure and thickness ensure consistent tablet weight and density batch after batch.
  • Food-grade stainless-steel contact parts
    All parts touching powder adopt stainless steel, easy to clean, meet food/dairy hygiene requirement.
  • Custom mold & logo embossing
    Custom tablet shape and logo embossing available. One machine can produce different tablet sizes by changing molds.
  • Solid steel frame, stable long-time running
    Heavy-duty welded steel frame ensures stable continuous production, low maintenance, long service life.

    • Working Principle

    1. Worker spreads powder evenly into mold cavity.
    2. Start cycle: hydraulic cylinder goes down to compress powder under preset pressure. Logo/pattern embossed during pressing.
    3. Press head lifts up, automatic ejection pushes finished block out from mold.
    4. Worker takes out finished blocks, moves to packing or curing area.
    5. Refill powder for next production cycle.
    Note: Machine only completes pressing forming. Post drying/curing may be required depending on raw material and binder used.

    Technical Parameters (PLD-24-35Y reference)

    Item Specification
    ModelPLD-24-35Y
    Control modeSemi-automatic hydraulic control
    Power5.0 kW
    Voltage380V 3-phase (customizable 220V / 415V)
    Capacity150-300 kg/h (depends on block size & weight)
    Max pressing force35 Ton (adjustable)
    Block thickness range3-35 mm customizable
    MoldCustom shape & size, logo embossing available
    Machine dimension1400×1200×950 mm
    Net weight750 kg
    Contact materialFood-grade stainless steel
    Warranty12 months (excluding wearing mold parts)

    Applicable Raw Material & Market

    Suitable: camel milk powder with food-grade binder (dry or semi-dry)
    Target customers: camel milk powder processors, dairy product manufacturers, nutritional supplement factories
    Main export markets: Middle East, Central Asia, Africa camel milk consuming markets
    Important Notes
    1. Milk powder should keep dry/semi-dry status and mixed with proper binder for tablet integrity.
    2. Machine only presses tablets. No drying needed if powder moisture is well controlled.
    3. Molds are wearing parts; customized molds can be supplied per your drawing or sample.

    Our Service

    1. Mold custom: shape, dimension, logo embossed on block surface.
    2. Overseas voltage adaptation.
    3. Factory test run before shipment; test pressing with customer sample material acceptable.
    4. English operation manual, installation guide, video support.
    5. 12-month machine warranty, lifelong technical consultation.

    FAQ

    Q1: Can I make different size tablets on one machine?A: Yes, just replace customized molds.
    Q2: How many workers are needed?A: Only 1 worker for feeding and collecting.
    Q3: Can the machine emboss a logo on the tablet?A: Yes, we engrave your logo/text on the customized mold.
    Q4: Is the machine suitable for milk powder?A: Yes, contact parts use food-grade stainless steel for dairy hygiene.
    Q5: What voltage for Middle East market?A: Standard 380V 3-phase, adjustable to local voltage on request.
