IP54 Servo Slip Ring 120VAC 240VAC 380VAC With Integrated Pneumatic / Electric Transmission

Specifications

Brand Name :

Panlink

Certification :

ISO 9001: 2015, CE

Place of Origin :

China

MOQ :

Payment Terms :

T/T

Packaging Details :

Carton Box, EPE Foam, Wooden Box(For Large Goods)

Price :

Negotiable

Name :

Servo Slip Ring

Contact Material :

Precious Metal

Housing Material :

Aluminum Alloy

Air Tube :

4~12mm

Air Pressure :

0.1~3MPa

Current Rating :

2~60A

Lifetime :

50,000,000

Delivery Time :

4 Weeks

Supply Ability :

40 Million a Year

Description

Servo System Slip Rings With Integrated Pneumatic-Electric Transmission, Full-Brand Servo Drive Compatibility, And Ultra-Long Service Life

Servo System Slip Ring

Servo drive systems are a critical component of modern motion control, widely used in automated equipment such as industrial robots and rotary tables. These systems require reliable transmission of power, signals, and data between the fixed and rotating platforms, typically achieved through slip rings. However, common electrical slip rings are susceptible to encoder signal interference, which can cause errors and system shutdowns.

Panlink servo system slip rings address these challenges by employing fiber brush technology and an innovative multiple independent modular design. This ensures stable transmission, extended service life, and maintenance-free operation. The slip rings provide connections for pneumatic channels, power, high-speed data, I/O interfaces, encoder signals, control signals, and more. They have been extensively tested and proven compatible with leading motor drives, including those from SIEMENS, Schneider, YASKAWA, Panasonic, Mitsubishi, DELTA, OMRON, Keba, and Fagor.

Feature	Main Application
• Suitable for SIEMENS, Schneider, YASKAWA, Panasonic, Mitsubishi etc. servo drive systems	• Packaging systems
	• Industrial robots
• Compatible with various communication protocols	• Rotary tables
• Provide power, signal and pneumatic channels together	• Lithium battery machinery
• 8mm, 10mm, 12mm air channel size optional	• Laser processing equipment
• Higher sealing protect optional
• Stainless steel housing available

Model	Channels		Current Rating (amps)			Voltage Rating (VAC)	Size (mm)		Bore (mm)	Speed (rpm)
Model	Electrical	Air	2	5	10	Voltage Rating (VAC)	OD	L	Bore (mm)	Speed (rpm)
PSR-T25F-6&12mm	6	1	×		×	240	78	77.8	/	300
PSR-T25F-3P6S1E&8mm	14	1	×	×		240	78	88	/	300
PSR-F12-24&RC2	24	1	×			240	32.8	96.7	/	300

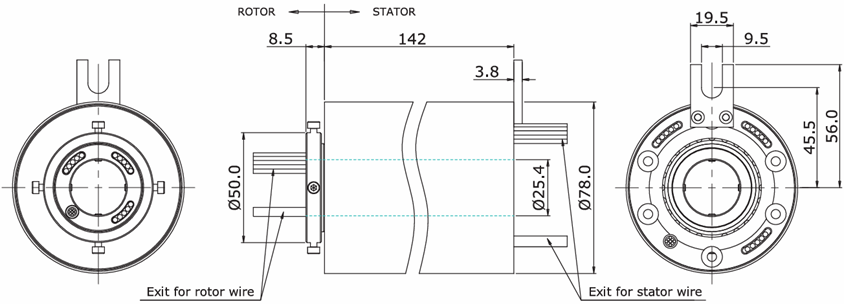

PSR-T25-24P1E	33	0	×		×	380	78	142	25.4	300
PSR-T25S-36&10mm	36	1	×			240	78	169.6	/	300

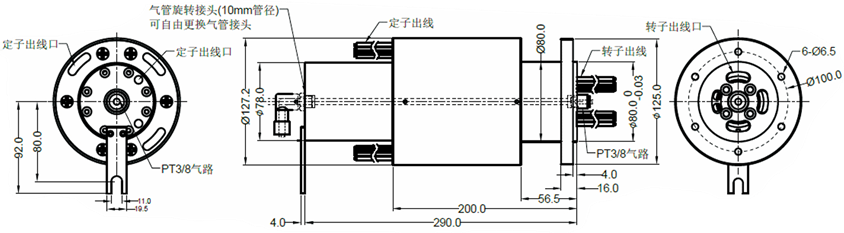

PSR-TS50-42	42	1	×	×		380	127.2	290	/	300

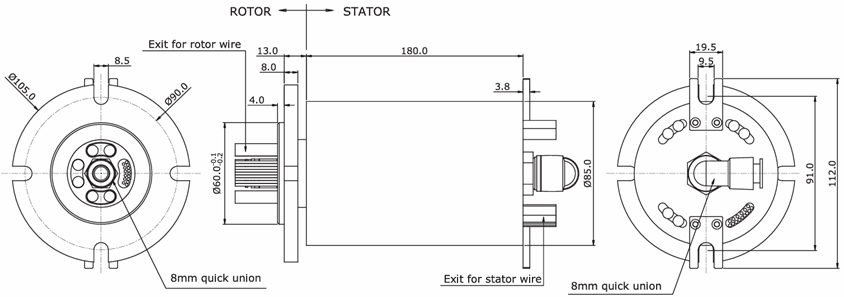

PSR-T25F-12P48S&8mm	60	1	×	×	×	380	85	180	/	300

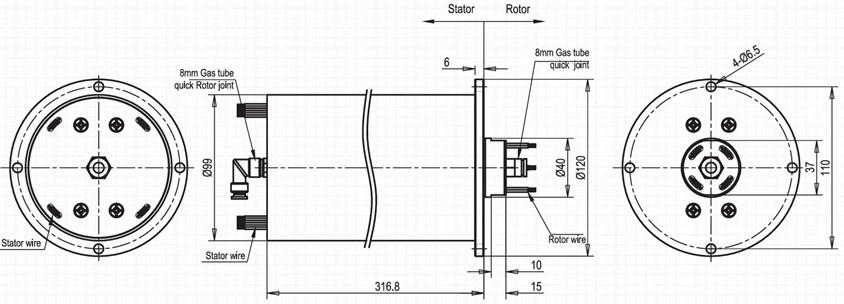

PSR-T25F-12P48S&10mm	90	1	×		×	380	99	316.8	/	300
PSR-T25S-90&10mm	90	1	×			240	78	315.6	/	300
Remark: Pneumatic channel size is optional.

No.			1	2	3	4	5	6	7
Type		Modular Code	PSR-T12 Series	PSR-T25 Series	PSR-T38 Series	PSR-T50 Series	PSR-T70 Series	PSR-T80 Series	PSR-T100 Series
Power	5A	PA	2.3/ring	2/ring	2/ring	2/ring	3/ring	2.8/ring	4.65/ring
	10A	PB	3.3/ring	4/ring	4/ring	4/ring	5/ring	4.1/ring	4.65/ring
	15A	PC	√	5/ring	5/ring	5/ring	5/ring	4.1/ring	4.65/ring
	20A	PD	√	√	6/ring	6/ring	5/ring	4.1/ring	4.65/ring
USB		SU	11.5/Modular	15/ Modular				14/Modular	23.25/Modular
100M Ethernet		SE	11.5/Modular	15/Modular				14/Modular	23.25/Modular
G bit Ethernet		SA	20.7/Modular	27/Modular				25.2/Modular	41.85/Modular
Coaxial		SC	6.9/Modular	9/Modular				8.4/Modular	13.95/Modular
Can-open		SB	6.9/Modular	9/Modular				8.4/Modular	13.95/Modular
Rs485/422		SD	6.9/Modular	9/Modular				8.4/Modular	13.95/Modular
Encoder Signal		SF	2.3/Ways	3/Ways				2.8/Ways	4.65/Ways
EtherCAD		SG	20.7/Modular	27/Modular				25.2/Modular	41.85/Modular
Device Net		SH	11.5/Modular	15/Modular				14/Modular	23.25/Modular
Profibus		SJ	6.9/Modular	9/Modular				8.4/Modular	13.9/Modular
CC-Link		SK	6.9/Modular	9/Modular				8.4/Modular	13.9/Modular
Other Signal		SM	2.3/Way	3/Way				2.8/Way	4.65/Way

Specification
Voltage Rating	120VAC/ 240VAC/ 380VAC
Current Rating	2~60A
Circuits	6~180
Insulation Resistance	500MΩ @ 500VDC
Electrical Noise	20mΩ max
Dielectric Strength	500VAC/ 50Hz/ 60s
Rotating Speed, Max	300rpm
Torque During Rotation, Max	2~10 N*M @ room temperature
Life Time, Min	50 million revolutions
Contact Material	Precious Metal
Lead Wires	Teflon Wires
Housing Material	Aluminum Alloy
Air Tube	4~12mm
Air Pressure	0.1~3MPa
Working Temperature	-40℃ to +80℃(-40℉ to +176℉)
Storage Temperature	-45℃ to +85℃(-49℉ to +185℉)
Humidity	95%
Protection Level	IP54

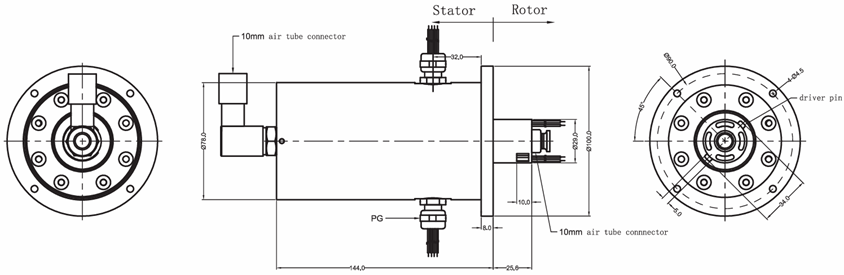

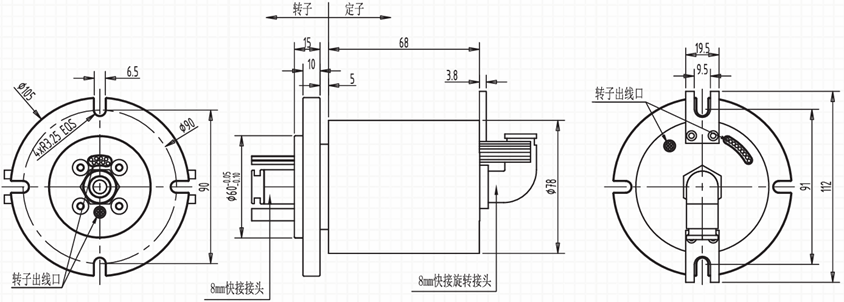

PSR-T25F-6&12mm Dimensions
