Solid Copper Type Pancake Slip Ring

Solid Copper Type Pancake Slip Rings With Double Sided Rings Design

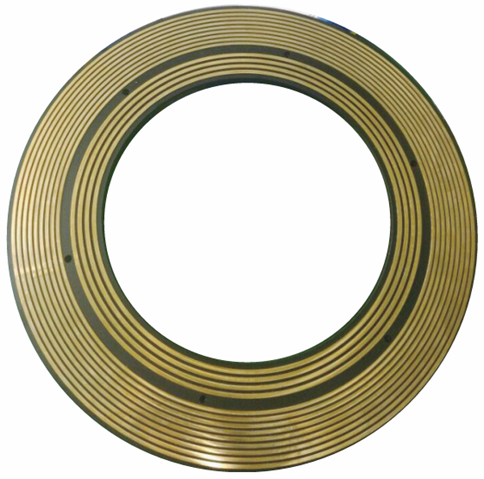

Solid copper type pancake slip rings are vacuum molded from epoxy resin, offering a robust configuration. They are available in a wide range of sizes, from small to very large, and are commonly used in applications such as CT scanners, radar pedestals, and processing machinery.

In applications with extremely limited height, both sides of the ring part can be vacuum molded to provide double power and signal rings for the system. Additionally, multiple platter slip rings can be used in the same system to meet diverse requirements.

Feature
• Gold plated PCB type ring & fiber brushes • Outer diameter 20~300mm
• 0~48 ways • Voltage 240VAC
• Max speed 200RPM • Transfer both signal and power
• Max 10A per way • Double-sided rings design available for thinner thickness
• Inner diameter 0~250mm

Model ID(mm) OD(mm) Thickness(mm) Ways
PSR-PS20-4 20 84 14 4
PSR-PS30-4 30 94 14 4
PSR-PS50-6 50 156 14 6
PSR-PS70-12 70 182 14 12
PSR-PS82-14 82 204 14 14
PSR-PSAB-CD

AB

(customized)

 ID+40+way*6 14

CD

(customized)

Specification
Voltage Rating 20VDC~380VAC
High Pot 1000VAC
Current Rating 2A
Insulation Resistance 1000MΩ @ 500VDC
Electric Noise 20mΩ
Dielectric Strength 500VAC @ 50Hz
Contact Material Gold-Gold
Operating Speed 200rpm
Working Temperature -40℃~+80℃
Torque ＜5 g.cm/ way
Rotar/ Stator Connection Customized(leads or connector)
Protection Level IP54 (IP65 Optional)

Dimensions
