Stable High Speed Slip Ring IP54 IP65 With Multi Signal Hybrid Transmission
Stable High Speed Slip Ring IP54 IP65 With Multi Signal Hybrid Transmission
Specifications
Brand Name :
Panlink
Certification :
ISO 9001: 2015, CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Packaging Details :
Carton Box, EPE Foam, Wooden Box(For Large Goods)
Model Number :
PSR-HS Series
Speed :
Up to 20,000 without Cooling
Voltage Rating :
380VAC
Lifetime :
100 million revolutions
Lead Wire :
Terminal
Housing Material :
Stainless steel
Contact Material :
Gold-Gold
Protaction Level :
IP54 or IP65
Name :
High Speed Slip Ring
Delivery Time :
4 Weeks
Supply Ability :
40 Million a Year
Description

High Speed Slip Ring

High speed slip rings are required in high-speed operating systems to transfer power and signal from a stationary to a rotating part. Panlink provides slip rings with speeds up to 20,000RPM. These high-speed units maintain reliable and superior electrical transfer capabilities under high-speed operation, high vibration and high shock environments. High precision processing enables fiber brushes to feature low contact force and low contact wear rates. Brush blocks are easily replaceable, extending the procedure’s life.

Main Application Advantage
• High speed testing • Low drive torque and low electrical noise
• Aerospace & navigation testing • Easy to replace brush block for extended life
• Tire testing • Maintenance-free operation ( no lubrication required)
• Centrifuges • High quality and reliability
• Thermocouple and strain gauge instruments
• Robotics

Feature
• Speeds up to 20,000rpm
• Speeds up to 12,0000rpm without the need of cooling
• Compatible with various signals and communication protocols
• High performance under adverse operating conditions
• A variety of configurations and mounting optional
• Stainless steel housing and higher protection optional

Model Rings

Current Rating

(amps)

Voltage Rating

(VAC)

Size

(mm)

Through bore

(mm)

Speed

(rpm)
OD L
2 10
PSR-T20H 1~100 × × 380 37 57 3~100 1~12,000
PSR-T25H-6 1~6 × × 380 78 48 25.4 1~10,000
PSR-HSA-10 10 × 380

28

(square)

 / 1~12,000
PSR-HSA-12 12 × 380

39.1

(square)

 / 1~12,000
PSR-HSB-10 9~10 × 380 31.2 42 / 1~12,000
Remark: Lifetime can be extended by replacing brush blocks.

Specification
Rings 10 or 12
Voltage Rating 380VAC
Insulation Resistance 500MΩ @ 500VDC
Electrical Noise 20mΩ
Dielectric Strength 600VDC/ 50Hz/ 60s
Rotating Speed, Max 12,000rpm
Torque During Rotation, Max 0.01N.m
Life Time, Min 100 million revolutions
Contact Material Gold-Gold
Lead Wires Terminal
Housing Material Stainless steel
Working Temperature -40℃ to +120℃
Storage Temperature -45℃ to +85℃
Shock MIL-STD-810G
Protection Level IP54 or IP65

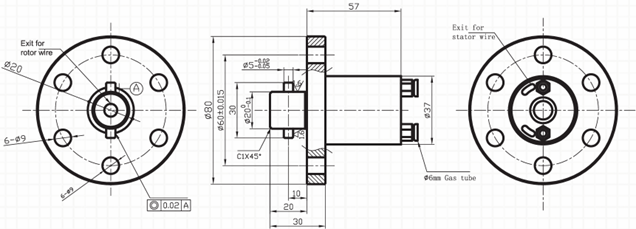

PSR-T20H Dimensions

Stable High Speed Slip Ring IP54 IP65 With Multi Signal Hybrid Transmission Stable High Speed Slip Ring IP54 IP65 With Multi Signal Hybrid Transmission

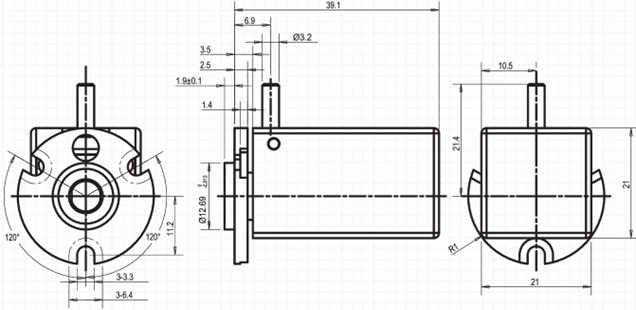

PSR- HSA-10 Dimensions

Stable High Speed Slip Ring IP54 IP65 With Multi Signal Hybrid Transmission Stable High Speed Slip Ring IP54 IP65 With Multi Signal Hybrid Transmission

PSR- HSA-12 Dimensions

Stable High Speed Slip Ring IP54 IP65 With Multi Signal Hybrid Transmission Stable High Speed Slip Ring IP54 IP65 With Multi Signal Hybrid Transmission

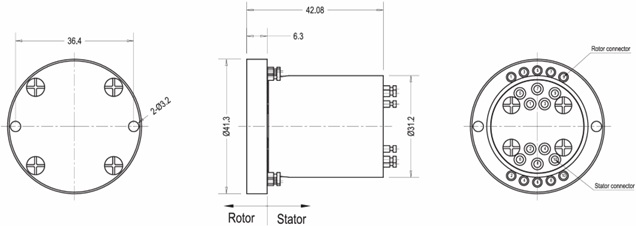

PSR-HSB-10 Dimensions

Stable High Speed Slip Ring IP54 IP65 With Multi Signal Hybrid Transmission Stable High Speed Slip Ring IP54 IP65 With Multi Signal Hybrid Transmission
