380VAC Medical Slip Rings 8 Circuits Zero Fault CT Slip Rings
380VAC Medical Slip Rings 8 Circuits Zero Fault CT Slip Rings
Specifications
Brand Name :
Panlink
Model Number :
PSR-P1300-4P4S
Certification :
ISO 9001: 2015, CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Packaging Details :
Carton Box, EPE Foam, Wooden Box(For Large Goods)
Name :
Medical Slip Rings
OD :
0.5~2.7m optional
Voltage :
up to 2000VAC
Ethernte :
support Giga bite Ethernet
Contact Material :
Gold-Gold
Price :
Negotiable
Delivery Time :
4 Weeks
Supply Ability :
40 Million a Year
Description

CT Scanner Slip Ring

Panlink—Leader of CT Slip Ring

In early spring 2012, after two years of relentless R&D and refinement by the Panlink team, the Panlink CT slip ring successfully passed a series of rigorous tests and was delivered to the customer. This made Panlink the first domestic company and the third worldwide with independent R&D capabilities for both industrial and medical CT slip rings. This success laid the foundation for domestic CT slip ring R&D, filled a gap in the industry, and holds the potential to break the current monopoly held by foreign manufacturers on this critical component.

Model Circuits

Voltage

(VAC)

Size

(mm)

Speed

(rpm)

 Page
OD ID
PSR-P1300-4P4S 8 380 1989.6 1325 20 P
Remark: Customization is available for current, voltage, speed, power and data combinations.

Model PSR-P1300-4P4S
Voltage Rating 380VAC
Current Rating

Power Module: 4 channels × 500A/ring

Signal Module: 4 channels × 2A/ring
Insulation Resistance 500MΩ @ 500VDC
Electrical Noise 10mΩ @ 6VDC, 50mA, 5rpm
Weight 0.2Kg
Voltage Rating 380VAC
Current Rating 2A
Torque 0.1N*M
Protection Level IP54
Contact Material Gold-Gold
Speed 20rpm
Lead Wire special-purpose wire
Lifetime 500 million revolutions
Working Temperature -40℃~+80℃
Mechanical Vibration MIL-SID-810E
Relative Humidity 80%

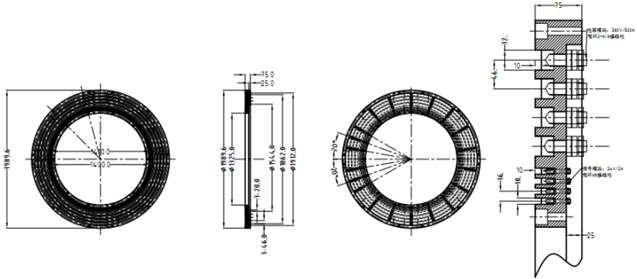

PSR-P1300-4P4S Dimensions

380VAC Medical Slip Rings 8 Circuits Zero Fault CT Slip Rings380VAC Medical Slip Rings 8 Circuits Zero Fault CT Slip Rings
