IP54 Large Slip Ring 3m for Transferring Signal / Power / Water / Oil / Gas
IP54 Large Slip Ring 3m for Transferring Signal / Power / Water / Oil / Gas
Specifications
Brand Name :
Panlink
Model Number :
ISO 9001: 2015, CE, ROHS
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Packaging Details :
Carton Box, EPE Foam, Wooden Box(For Large Goods)
Name :
Large Slip Ring
Length :
up to 3m
Protection Level :
IP54
Housing Material :
Aluminium Alloy
Contact Material :
Precious Metal
Certification :
ISO 9001: 2015, CE
Price :
Negotiable
Delivery Time :
4 Weeks
Supply Ability :
40 Million a Year
Description

Large Scale Electromechanical-System-Ready Large Slip Rings Capable Of Transferring Signal, Power, Water, Oil Or Gas

Large Size Slip Ring

Large size slip ring is a series of slip rings with a size up to 3m, capable of transferring signal, power, water, oil or gas. For this series, waterproof feature is available as an option.


FeatureMain Application
• Fiber brush contact
• Water treatment equipment
technology, multi-point contact
• Automobile production line
• Low friction loss, long life
• Port machinery

ModelRings

Current Rating
(amps)

Voltage Rating
(VAC)

Size
(mm)

Bore
(mm)

Speed
(rpm)

ODL
PSR-T168-2020150380 1060168300
PSR-TS85-30P3S33130500 157021050
Remark: Customization is available for current, voltage, speed, power and data combinations.

Specification
Voltage Rating 380VAC
Current Rating 150A/ring,500A/ring, 1000A/ring
Insulation Resistance 1000MΩ @ 500VDC
Dielectric Strength 600VDC@50Hz
Electrical Noise 10mΩ@6VDC, 50mA, 5RPM
Rotating Speed, Max 300rpm
Torque During Rotation, Max 60 N*M
Protection Level IP54
Housing Material Aluminum Alloy
Contact Material Precious Metal
Lead Wires Teflon Wires
Operation Temperature -40℃~+80℃
Mechanical Vibration MIL-SID-810E
Relative Humidity 60%

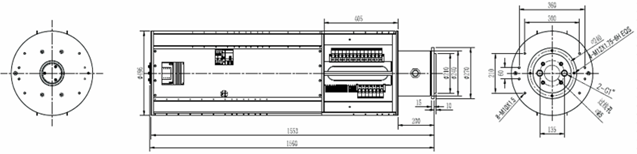

PSR-T168-20 Dimensions
IP54 Large Slip Ring 3m for Transferring Signal / Power / Water / Oil / GasIP54 Large Slip Ring 3m for Transferring Signal / Power / Water / Oil / Gas


PSR-TS85-30P3S Dimensions
IP54 Large Slip Ring 3m for Transferring Signal / Power / Water / Oil / GasIP54 Large Slip Ring 3m for Transferring Signal / Power / Water / Oil / Gas
