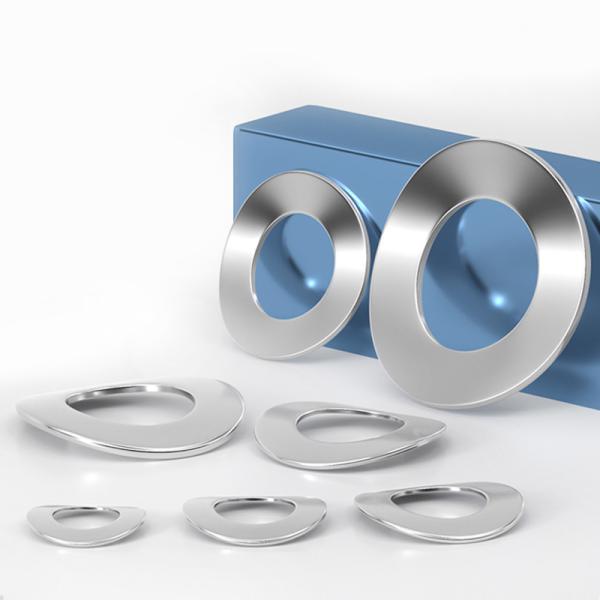

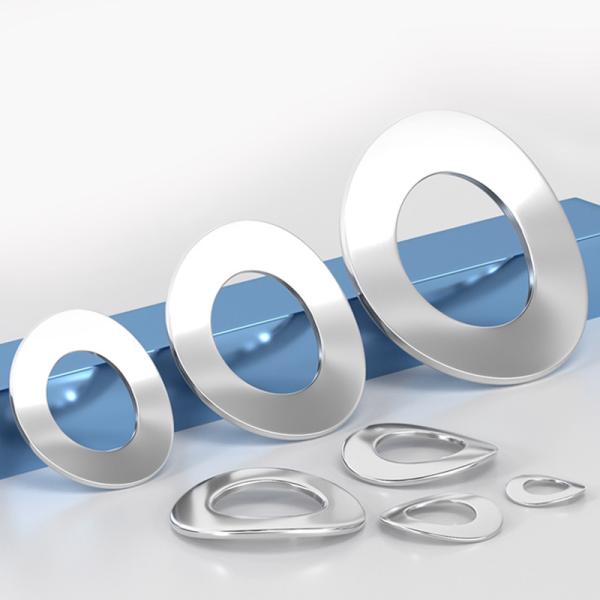

GB955 Corrosion Resistance 304 Stainless Steel Spring Washer
GB955 Corrosion Resistance 304 Stainless Steel Spring Washer
GB955 Corrosion Resistance 304 Stainless Steel Spring Washer
GB955 Corrosion Resistance 304 Stainless Steel Spring Washer
GB955 Corrosion Resistance 304 Stainless Steel Spring Washer
GB955 Corrosion Resistance 304 Stainless Steel Spring Washer
Specifications
Brand Name :
YB
Model Number :
Washer
Certification :
ISO9001/16949
Place of Origin :
ZheJiang China
MOQ :
10000
Price :
FOB NingBo 0.003-0.2USD
Payment Terms :
T/T
Supply Ability :
500tons/month
Delivery Time :
7-25days
Packaging Details :
Carton Box/Pallet/Customized
Standard :
DIN,ANSI,JIS,GB,BS
Material :
Stainless Steel
Surface treatment :
White Washing
Grade :
A2-70
Quality control :
100% whole range inspection,ISO9001
Port :
Shanghai,SHANGHAI OR NINGBO,Ningbo
Description
GB955 Corrosion Resistance 304 Stainless Steel Spring Washer


1.Products Details:

Wave washers, also known as wave springs or corrugated washers, are a type of spring washer characterized by their wavy or corrugated design. They are typically made from metal materials such as carbon steel, stainless steel, or brass, and are used in mechanical assemblies to provide a controlled axial load, compensate for tolerances, absorb shock, or maintain tension between components.


2.Key Features:

- Compact Design: Their low profile makes them suitable for applications with limited space, where traditional coil springs would be too bulky.
- Axial Flexibility: The wavy structure allows them to deflect under load, generating a spring force that helps maintain tightness in assemblies.
- Compensation for Tolerances: They can absorb small variations in part dimensions or thermal expansion/contraction, ensuring consistent performance.
- Shock and Vibration Absorption: Their ability to deform and rebound helps dampen vibrations and absorb shocks, reducing wear on connected parts.
- Cost-Effective: Simple to manufacture and install, making them an economical choice for many industrial and automotive applications.
- Corrosion Resistance: When made from stainless steel or other alloys, they offer good resistance to rust and corrosion, suitable for harsh environments.


3.Technical Parameters

φ 3 4 5 6 8 10 12 14 16 18 20 22 24 27 30
d MIN 3.2 4.3 5.3 6.4 8.4 10.5 13 15 17 19 21 23 25 28 31
MAX 3.5 4.6 5.6 6.76 8.76 10.93 13.43 15.43 17.43 19.52 21.52 23.52 25.52 28.52 31.62
dc MIN 7.42 8.42 10.3 11.3 14.3 20.16 23.16 27.16 29 33 35 39 43 49 54.8
MAX 8 9 11 12 15 21 24 28 30 34 36 40 44 50 56
H MIN 0.8 1 1.1 1.3 1.5 2.1 2.5 3 3.2 3.3 3.7 3.9 4.1 4.7 5
MAX 1.6 2 2.2 2.6 3 4.2 5 5.9 6.3 6.5 7.4 7.8 8.2 9.4 10
h 0.5 0.5 0.5 0.5 0.8 1 1.2 1.5 1.5 1.5 1.6 1.8 1.8 2 2
Weight in 1000 pcs 0.14 0.16 0.24 0.27 0.66 1.81 2.7 4.71 5.07 6.69 7.68 10.94 13.5 19.81 25.02
