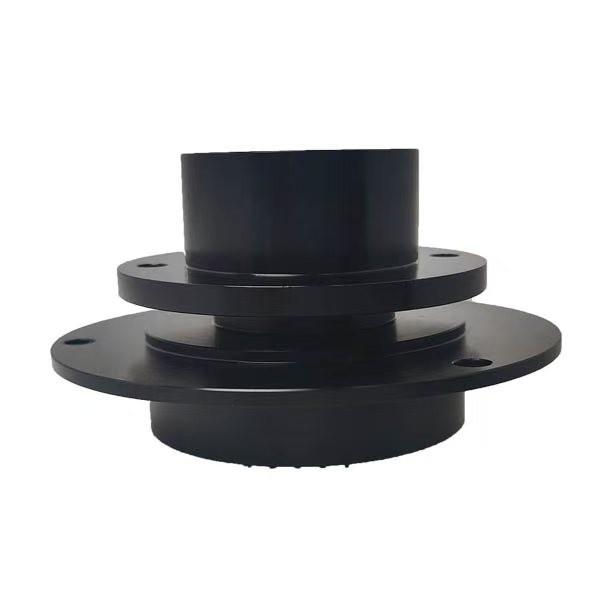

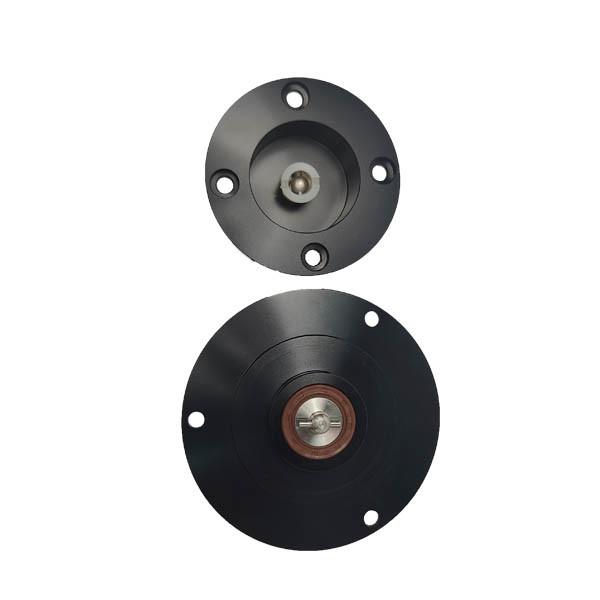

Boom Joint Transducer Measures Mechanic Angles.
Boom Joint Transducer Measures Mechanic Angles.
Boom Joint Transducer Measures Mechanic Angles.
Boom Joint Transducer Measures Mechanic Angles.
Boom Joint Transducer Measures Mechanic Angles.
Boom Joint Transducer Measures Mechanic Angles.
Specifications
Brand Name :
GDJD
Model Number :
VA-S-360-61B
Certification :
CE
Place of Origin :
China
MOQ :
20PCS
Price :
RMB 5000/PCS
Payment Terms :
L/C
Supply Ability :
300PCS/Per Month
Delivery Time :
30 work days
Packaging Details :
Carton Box
Material :
Aluminium
Application :
Measure the angle of the arm support
Measurement Range :
± 180 Degrees
Accuracy Better then :
± 0.1 Degrees
Storage temperature :
-40 … +85 Degrees Celsius
Protection PCB :
IP 67
Description
Boom Joint Transducer Measures Mechanic Angles.
Technical Data
Electrical data
Supply Voltage 10-30V DC
Power supply max 100 mA
Measurement Range ± 180 Degrees
Accuracy Better then ± 0.1 Degrees
Bus Connection Full compatible with the ISO 11896
Communication profile DS 301 DSP-406 for absolute linear encoder
**Node ID Adjustable 1–127 with DIP Switch.
**Baud Rate Adjustable with DIP Switch. 7 different baud rate setups (10 kb/s, 20
kb/s, 50 kb/s, 125 kb/s, 250 kb/s, 500 kb/s, 1000kb/s).
Mechanical Data
Housing Aluminium housing, anodized
Vibration resistance Broadband Noise,
20 G RMS all axis in frequency range: 20 - 2000 Hz
Connection Terminal block for operating voltage and CAN bus.
4 Pins
**DIP Switch For adjustable Node ID and Baud Rate.
10 positions.
Operating temperature -30 … +50 Degrees Celsius
Storage temperature -40 … +85 Degrees Celsius
Protection PCB IP 67
