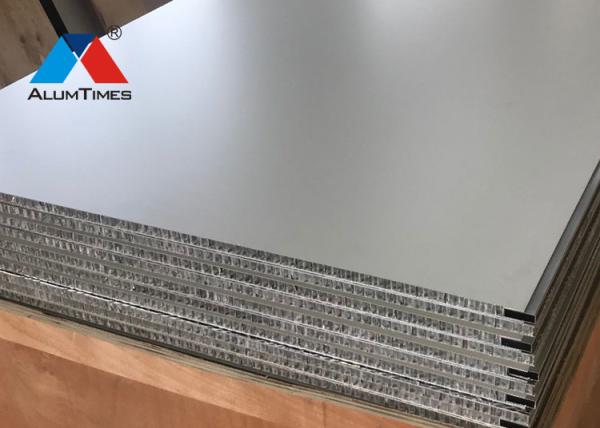

15 mm aluminum honeycomb core sandwich panel for curtain wall

SPECIFICATIONS

TOP ALUMINIUM SKINS Thickness (mm):

0,5 - 0,7 - 1 (standard)

Special thickness according to customers’ requirements (such as, 1.5-2.0-3.0mm)

ALUMINUM CORE

Hexagonal cells, Alloy series 3003

Diameter in inches: Ø1/4”, Ø3/8”, Ø1/2”, Ø3/4”

Foil thickness: from 50 to 70 microns

Alloy series 5052 could be customized

BOTTOM ALUMINIUM SKINS Thickness (mm):

0,5 - 0,7- 1 (standard)

Special thickness according to customers’ requirements (such as, 1.5-2.0-3.0mm)

On request: Special alloys, treatments and coating with RAL colors

Fire test:

Based on EN13501: Class B, s1, d0, (EU standard) ,

Based on BS476 pt4, pt6&pt7: Class 0, index 0 ( UK& Singapore standard)

Based on GB/T 8624-27: Class B, s1, d0 (Chinese standard)

Company prodution capacity: 1000000m2 / year

Company Certificate: ISO9001:2008, ISO14001:2004

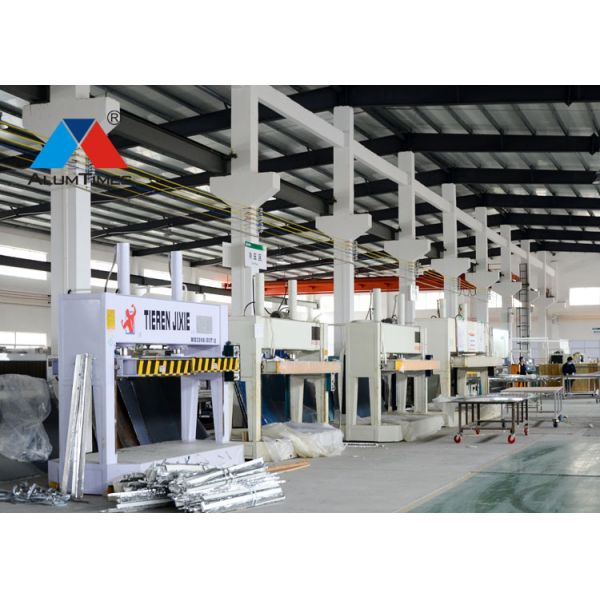

WORKSHOP

FEATURES

1. Energy saving, green material: Good thermal and sound insulation & sound insulation, fire resistance.
2. High wind load resistance: High strength & rigidness and stable structure of honeycomb core.
3. Easy installation & low labor cost: Light weight

4. Good decoration: Excellent flatness & wide color selection.

5. Excellent fireproof property

6. Super peeling strength

APPLICATION

1) Interior wall cladding

2) Exterior wall cladding

3) Ceiling panel

4) Other decoration area

5) Gas piping, cables, building materials, etc (this product fills a gap in the domestic construction materials field, with performance indexes superior to panels manufactured overseas)

6) Curtain wall decoration for buildings where security is important, as airports, hospitals and research centers

7) Curtain wall boards for outside walls of normal buildings

8) Renovations for old buildings and movable houses
