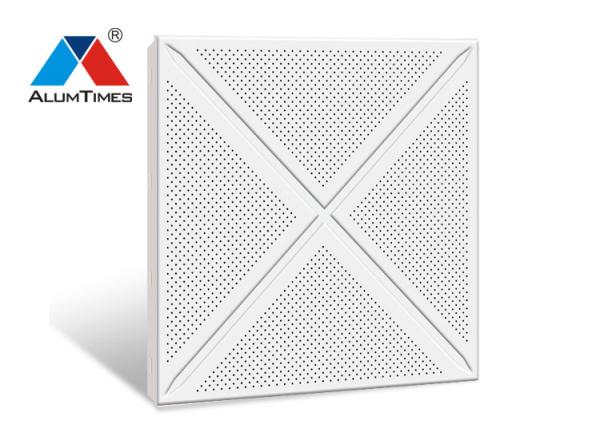

Commercial Powder Coated Aluminium Perforated Ceiling 0.6mm Thickness Clip In Type
Commercial Powder Coated Aluminium Perforated Ceiling 0.6mm Thickness Clip In Type
Commercial Powder Coated Aluminium Perforated Ceiling 0.6mm Thickness Clip In Type
Commercial Powder Coated Aluminium Perforated Ceiling 0.6mm Thickness Clip In Type
Specifications
Brand Name :
Alumtimes
Model Number :
AC-05
Certification :
SGS/ISO/CE
Place of Origin :
Made in China
MOQ :
100 square meters
Price :
US$5-8/sqm
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
4500 square meters / Week
Delivery Time :
18 Days
Packaging Details :
Carton
Name :
Aluminium Clip in Ceiling
Alloy :
1100/3003
Color :
White/Grey/Black/Wooden
Surface Treatment :
Powder coating, painting, roll coating, wooden texture, etc
Perforated :
1.8/2.3/3.0 mm, or other new design
Thickness :
0.6-1.0mm
Function :
Fireproof, sound absorption, dustproof, moistureproof
Back Cloth :
For perforated ceilings, non-woven fabric (white/black) will be pasted on the back of ceiling
Description

0.6 mm Thick Commercial Powder Coated Clip In Ceiling Board System

Size (mm)

 Thickness (mm) Height (mm) Aluminum Alloy Edge
300*300 0.4-0.7 20/25 1100/3003

Beveled /Square
400*400 0.4-0.7 20 1100/3003

Beveled /Square
500*500 0.5-1.0 20 1100/3003

Beveled /Square
600*600 0.6-1.0 20/25/28 1100/3003

Beveled /Square
300*600 0.6-1.0 20/25 1100/3003

Beveled /Square
300*1200 0.7-1.0 20/25 1100/3003

Beveled /Square
600*1200 0.7-1.0 20/25/28 1100/3003

Beveled /Square

Commercial Powder Coated Aluminium Perforated Ceiling 0.6mm Thickness Clip In Type

INTRODUCTION FOR METAL CEILING

ALUMTIMES perforated ceiling system mounts directly onto standard suspending system to form visually closed joints,this system is dimensionally stable and flat. Standard sizes are 300*300,300*600,300*1200,400*400,500*500,600*600,600*1200 etc,special size are available on request also,Lighting,HVAC equipment,air diffuser and other mechanical services can be interfaced in above or below the ceiling system,In order to improve acoustical effect,a sound absorbing tissue or mineral wool can be sticked at back of perforated panels,there are many performation shapes and sizes, meanwhile a variety of finish,colors can be applied to different requirements.

INSTALLATION

Square/rectangular panels with vertival/beveled edges are fixed to an adjustable suspension system,the panel ends to be raised and executed with dimple points to ensure positive engagement into clip-in profiles,the suspension system comprises of 38 main keel,triangle keel,connection bracket,hanging pole and explosive bolt,all galvanized.

Commercial Powder Coated Aluminium Perforated Ceiling 0.6mm Thickness Clip In Type

Aluminum Ceiling Panel Feature

1) Fireproof, anti - corrosion, thermo stability and good

weather resistance

2) Easy to install and maintain clean

3) Various designs for choose, Widely used

4) Different color can be customized,such as RAL colors,

wooden texture
Aluminum Ceiling Tiles Application

1) Industrial and civil buildings

2) interior decorative panel, partition panel

3) airport, station, museum, opera house

4) exhibition hall, shopping centre

5) conference hall, office, bar and etc

QUALITY TEST

Generally speaking, our aluminum ceilings have been tested regularly by Foshan Quality Supervision and Testing Institute which is the third party authoritative testing organization. We have their testing certificate in Chinese. If the customers entrust the third party such as SGS, etc.to test our aluminum ceiling, the test charges will be paid by the customers.
