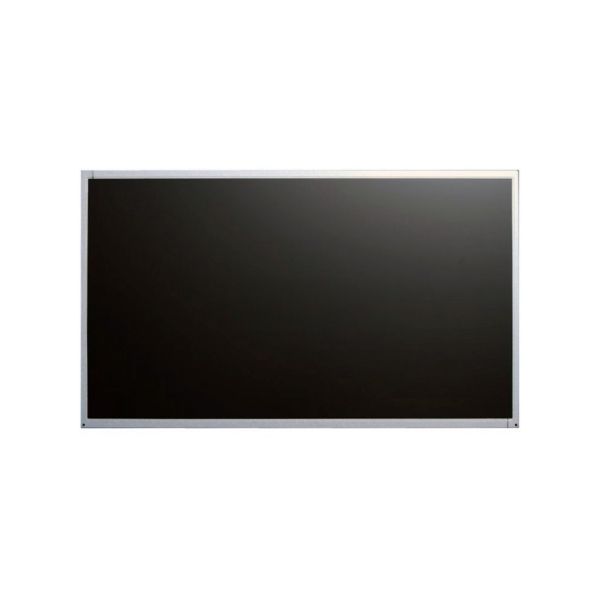

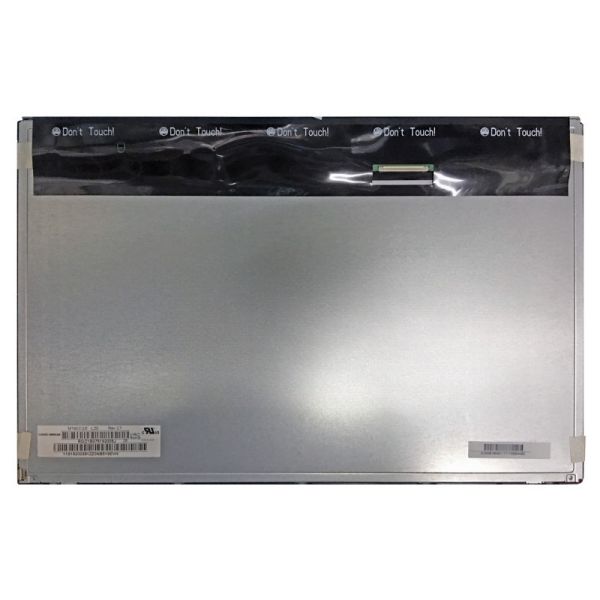

M190CGE-L20 19.5 Inch TFT-LCD Screen LVDS Resolution 1440*900 LCD Display Panel
M190CGE-L20 19.5 Inch TFT-LCD Screen LVDS Resolution 1440*900 LCD Display Panel
M190CGE-L20 19.5 Inch TFT-LCD Screen LVDS Resolution 1440*900 LCD Display Panel
M190CGE-L20 19.5 Inch TFT-LCD Screen LVDS Resolution 1440*900 LCD Display Panel
M190CGE-L20 19.5 Inch TFT-LCD Screen LVDS Resolution 1440*900 LCD Display Panel
M190CGE-L20 19.5 Inch TFT-LCD Screen LVDS Resolution 1440*900 LCD Display Panel
Specifications
Place of Origin :
China
Brand Name :
YJ
MOQ :
1
Price :
$145
Model Number :
M190CGE-L20
Type :
TFT
Display Size :
19.5
Supplier Type :
stock
Description
M190CGE-L20 19.5 Inch TFT-LCD Screen LVDS Resolution 1440×900 LCD Display Panel

The M190CGE-L20 is a 19.0-inch industrial-grade TFT-LCD module from Innolux (Chi Mei / CMO legacy series). This WXGA+ resolution (1440×900, 16:10 aspect ratio) TN-type panel is specifically designed for industrial monitors, control systems, and embedded HMI applications.

Widely used in legacy industrial displays and desktop monitor platforms, this panel offers stable LVDS interface and LED backlight upgrade compatibility. Modern replacements often convert from CCFL-era designs depending on revision.

Key Specifications
Specification Details
Panel Size 19.0 inch (18.95")
Resolution 1440 × 900 (WXGA+)
Display Type TN, Normally White, Transmissive
Brightness ~250 cd/m² (typical)
Contrast Ratio ~1000:1 (typical)
Viewing Angle 85/85/80/80 (CR≥10)
Color Depth 16.7M colors (6-bit + FRC)
Interface LVDS (2-channel, 8-bit, 30-pin)
Backlight WLED (multi-string LED, no built-in driver in some versions)
Active Area 408.24 × 255.15 mm
Outline Size 428 × 278 × 11 mm
M190CGE-L20 19.5 Inch TFT-LCD Screen LVDS Resolution 1440*900 LCD Display Panel
