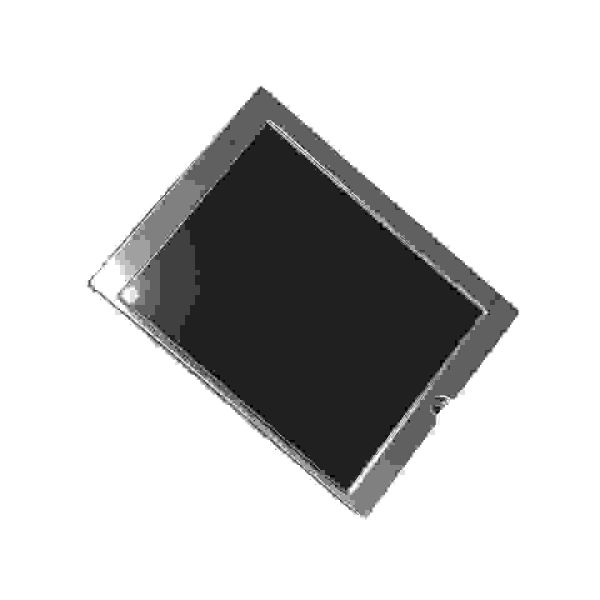

TCG057VGLAAANN-GN20 LCD 5.7inch 640*480 30Ppins LVDS LED TFT LCD Panel
TCG057VGLAAANN-GN20 LCD 5.7inch 640*480 30Ppins LVDS LED TFT LCD Panel
TCG057VGLAAANN-GN20 LCD 5.7inch 640*480 30Ppins LVDS LED TFT LCD Panel
TCG057VGLAAANN-GN20 LCD 5.7inch 640*480 30Ppins LVDS LED TFT LCD Panel
Specifications
Place of Origin :
Japen
MOQ :
1
Price :
$185
Type :
TFT, TFT
Display Size :
5.7''
Display Type :
TFT
Screen Size :
5.7
resolution ratio: :
640*480
Panel Type :
TFT
Panel no :
TCG057VGLAAANN-GN20
Applications :
Industrial LCD
Brightness :
450cd/m2
Backlight :
WLED
Product Name :
5.7inch 640*480 30Ppins LVDS LED TFT LCD Panel TCG057VGLAAANN-GN20
Interface :
30pins LVDS
Color :
262K
Description
TCG057VGLAAANN-GN20 LCD 5.7inch 640*480 30Ppins LVDS LED TFT LCD Panel
TCG057VGLAAANN-GN20 is a 5.7-inch industrial TFT-LCD module from Kyocera Corporation, designed for high-reliability applications such as medical devices, test equipment, and industrial HMIs. It features a VGA resolution, LED backlight, and LVDS/CMOS signal interface, making it suitable for modern embedded systems while maintaining industrial robustness.
Key Specifications
Display size 5.7 inch (diagonal)
Resolution 640 × 480 (VGA)
Display type Color TFT (RGB), transmissive
Active area 115.2 × 86.4 mm
Outline dimensions 127.2 × 100.4 × ~6.0 mm
Brightness ~450 cd/m²
Contrast ratio ~500:1
Viewing angle up to 160° (H/V)
Backlight LED (with constant current circuit)
Interface LVDS / CMOS
Logic supply voltage 3.3V (typ.)
Operating temperature -20 ~ +70 °C
Lifetime (LED) ~50,000 hours
Features
  • High brightness and wide viewing angle for industrial visibility
  • LED backlight with long lifetime and dimming control
  • Integrated timing controller and power circuits
  • Compact, slim mechanical design
  • Stable operation across wide temperature ranges
Applications
  • Industrial control systems / HMI panels
  • Medical and diagnostic equipment
  • Measurement and testing instruments
  • Portable industrial devices

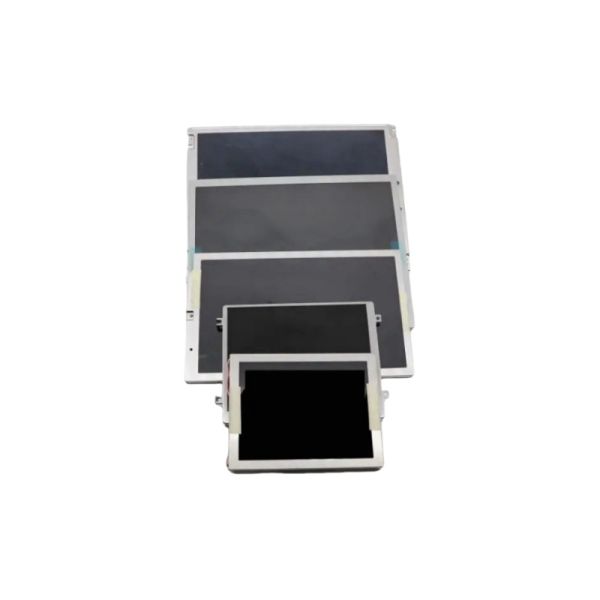

TCG057VGLAAANN-GN20 LCD 5.7inch 640*480 30Ppins LVDS LED TFT LCD Panel
Frequently Asked Questions
1. Who are we?
We are based in Guangdong, China, starting from 2008. We sell to North America (30.00%), South America (20.00%), Southeast Asia (18.00%), Eastern Europe (8.00%), Western Europe (7.00%), Mid East (5.00%), South Asia (3.00%), Northern Europe (2.00%), Central America (2.00%), Southern Europe (2.00%), Oceania (2.00%), Eastern Asia (1.00%). There are about 11-50 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production; Always final inspection before shipment.
3. What can you buy from us?
Touch Screen, LCD Display, Control Board
4. Why should you buy from us not from other suppliers?
We maintain long-term relationships with main worldwide LCD manufacturers. We specialize in displays used in Point of Sale, ATM Banking, Medical and Industrial applications. Popular brands in stock are AUO, Hitachi, Kyocera, Sharp, Mitsubishi and NEC.
5. What services can we provide?
Accepted Delivery Terms: FOB;
Accepted Payment Currency: USD, EUR, HKD;
Accepted Payment Type: T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow;
Language Spoken: English, Chinese, Spanish, German
