LS055R1SX04 High Resolution 5.5 1440X2560 MIPI-LCD Panel
LS055R1SX04 High Resolution 5.5 1440X2560 MIPI-LCD Panel
LS055R1SX04 High Resolution 5.5 1440X2560 MIPI-LCD Panel
LS055R1SX04 High Resolution 5.5 1440X2560 MIPI-LCD Panel
LS055R1SX04 High Resolution 5.5 1440X2560 MIPI-LCD Panel
LS055R1SX04 High Resolution 5.5 1440X2560 MIPI-LCD Panel
LS055R1SX04 High Resolution 5.5 1440X2560 MIPI-LCD Panel
LS055R1SX04 High Resolution 5.5 1440X2560 MIPI-LCD Panel
Specifications
Place of Origin :
Japan
Brand Name :
Sharp
MOQ :
1
Price :
US$13.50
Type :
CG-Silicon , LCM
Display Size :
5.5 inch
Supplier Type :
Angecy
Panel no :
LS055R1SX04
Panel Size :
5.5 inch
Resolution :
1440X2560
Colors :
16.7M 70% NTSC
Brightness :
450 cd/m² (Typ.)
Interface :
MIPI (2 ch, 4 data lanes) , 50 pins Connector
Viewing Angle :
80/80/80/80 (Typ.)(CR≥10)
Product Name :
CG-Silicon , LCM
Panel Type :
300cd/m2
Contrast Ratio :
1300:1 (Typ.) (TM)
Description

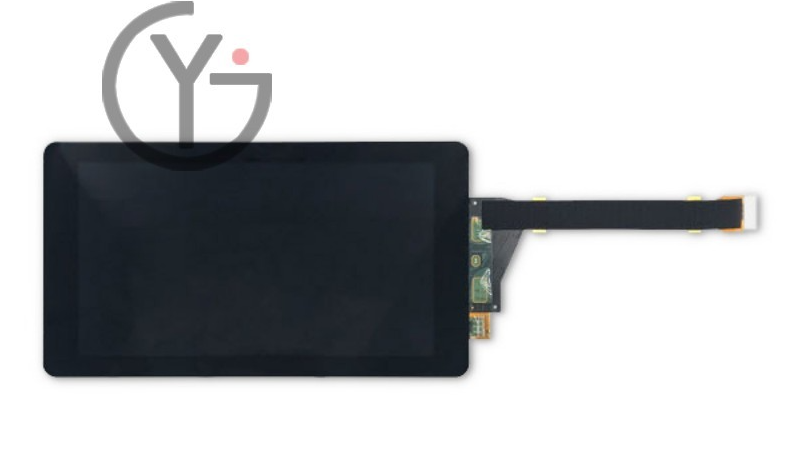

LS055R1SX04 High Resolution 5.5" 1440×2560 MIPI-LCD Panel
The LS055R1SX04 is a high-performance 5.5-inch 2K (Quad-HD) TFT-LCD panel manufactured by Sharp. It is one of the most popular screens for SLA/DLP 3D printers (like the Anycubic Photon and Elegoo Mars) and high-density VR/AR headsets due to its incredible pixel density and high resolution.
Key Specifications
Panel Size 5.5 inch
Resolution 1440 × 2560 (2K / Quad-HD)
Pixel Density 537 PPI
Display Mode New Mode2 (IPS-like), Normally Black
Brightness 450 cd/m² (Typical)
Contrast Ratio 1300:1
Product Features
  • Ultra-High Resolution: With 537 pixels per inch, this screen provides extremely sharp detail, which is critical for the "curing" process in 3D resin printers to ensure smooth surfaces on printed parts.
  • Modern Interface: It uses a high-speed MIPI DSI interface. Because of this, it cannot be connected directly to a PC or Raspberry Pi via HDMI without a specialized HDMI-to-MIPI converter board.
  • 3D Printing Utility: You will often find this sold in two versions: With Backlight for use as a standard display (HMD, secondary monitor) and Without Backlight for 3D printers, where the internal UV light of the printer shines through the LCD to cure the resin.
  • Thin Profile: It is exceptionally slim (approximately 1.45 mm), making it ideal for compact handheld devices and VR goggles.
LS055R1SX04 High Resolution 5.5
Frequently Asked Questions
1. Who are we?
We are based in Guangdong, China, starting from 2008. We sell to North America (30.00%), South America (20.00%), Southeast Asia (18.00%), Eastern Europe (8.00%), Western Europe (7.00%), Mid East (5.00%), South Asia (3.00%), Northern Europe (2.00%), Central America (2.00%), Southern Europe (2.00%), Oceania (2.00%), Eastern Asia (1.00%). There are about 11-50 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production; Always final inspection before shipment.
3. What can you buy from us?
Touch Screen, LCD Display, Control Board
4. Why should you buy from us instead of other suppliers?
We maintain long-term relationships with major worldwide LCD manufacturers. We specialize in displays used in Point of Sale, ATM Banking, Medical and Industrial applications. Popular brands in stock include AUO, Hitachi, Kyocera, Sharp, Mitsubishi and NEC.
5. What services can we provide?
Accepted Delivery Terms: FOB; Accepted Payment Currency: USD, EUR, HKD; Accepted Payment Type: T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow; Languages Spoken: English, Chinese, Spanish, German
