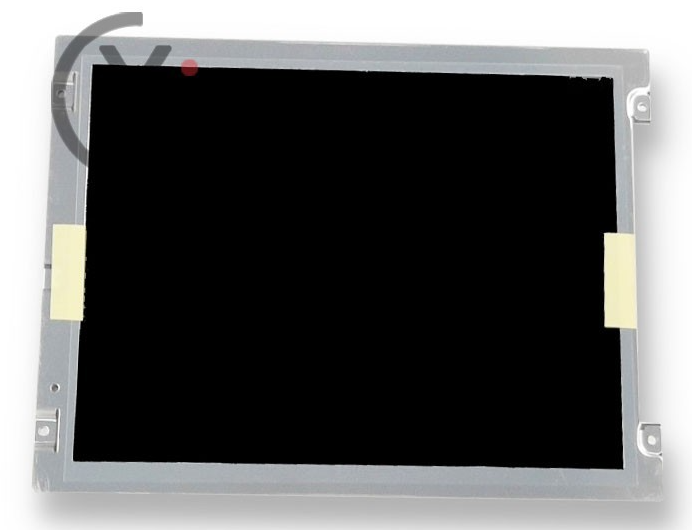

NL6448BC26-26D LCD 8.4 inch 640*480 RGB lcd panel
NL6448BC26-26D LCD 8.4 inch 640*480 RGB lcd panel
NL6448BC26-26D LCD 8.4 inch 640*480 RGB lcd panel
NL6448BC26-26D LCD 8.4 inch 640*480 RGB lcd panel
NL6448BC26-26D LCD 8.4 inch 640*480 RGB lcd panel
NL6448BC26-26D LCD 8.4 inch 640*480 RGB lcd panel
NL6448BC26-26D LCD 8.4 inch 640*480 RGB lcd panel
NL6448BC26-26D LCD 8.4 inch 640*480 RGB lcd panel
Specifications
Place of Origin :
Japan
Brand Name :
YJ
MOQ :
1 piece
Price :
$198 / piece
Type :
TFT
Display Size :
8.4 inch
Supplier Type :
Angecy
Model :
NL6448BC26-26D
Panel Type :
a-Si TFT-LCD
Luminance :
500
Contrast Ratio :
1000 : 1
Signal Type :
31 pins CMOS (1 ch, 6-bit) , Connector
Display Color :
262k
Size :
8.4
Resolution :
640*480
Backlight :
WLED
Work Mode :
TN, Normally White, Transmissive
Description
NL6448BC26-26D LCD 8.4 inch 640*480 RGB LCD Panel
Industrial TFT LCD Panel Overview
The NL6448BC26-26D is an 8.4-inch a-Si TFT-LCD display module originally manufactured under the NEC/Tianma family of industrial panels. It offers a robust 4:3 format with classic VGA resolution, high brightness, and wide operating temperature range, making it well suited for industrial PCs, control systems, kiosk displays, and other embedded applications.
Technical Specifications
Specification Details
Panel Size 8.4″ diagonal
Resolution 640 * 480 (VGA)
Display Mode TN, Normally White, Transmissive
Brightness ~500 cd/m² (typical)
Contrast Ratio ~1000:1 (typical)
Colors ~262k (6-bit) with optional 16.7M (8-bit) support
Interface CMOS/LVDS options depending on revision (typically 31-pin CMOS for -26D)
Backlight WLED (~70,000 hours without driver)
Viewing Angles ~80°/80°/80°/80° (L/R/U/D)
Response Time ~18 ms typical
Operating Temperature -30 °C to +80 °C
Outline Dimensions ~200 * 152 * ~8.7 mm
Typical Applications
Industrial PCs, embedded display systems, operator terminals, kiosk/HMI screens, and rugged equipment interfaces requiring a high-visibility mid-sized VGA display.
NL6448BC26-26D LCD 8.4 inch 640*480 RGB lcd panel
