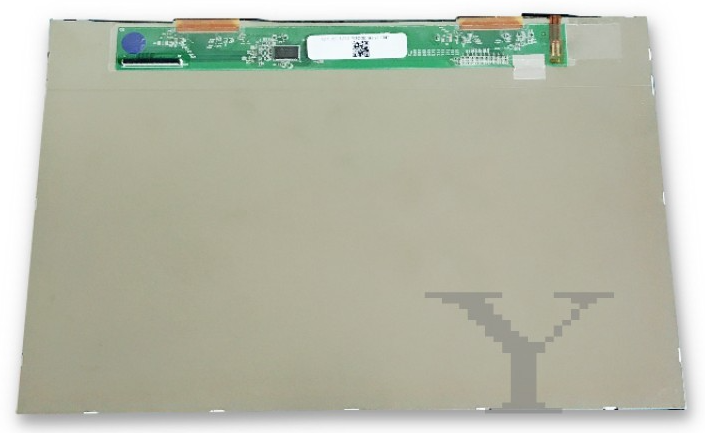

EE101IA-01D LCD Modules 10.1 Inch 1280*800 TFT LCD Display Panel
EE101IA-01D LCD Modules 10.1 Inch 1280*800 TFT LCD Display Panel
EE101IA-01D LCD Modules 10.1 Inch 1280*800 TFT LCD Display Panel
EE101IA-01D LCD Modules 10.1 Inch 1280*800 TFT LCD Display Panel
EE101IA-01D LCD Modules 10.1 Inch 1280*800 TFT LCD Display Panel
EE101IA-01D LCD Modules 10.1 Inch 1280*800 TFT LCD Display Panel
Specifications
Place of Origin :
China
Brand Name :
Innolux
MOQ :
1 piece
Price :
$44.10 / piece
Type :
TFT, CFLL
Display Size :
10.1 inch
Supplier Type :
Angecy
Model :
EE101IA-01D
Size :
10.1
Signal Type :
LVDS (1 ch, 8-bit) , Connector , 40 pins
Product Name :
10.1 LCD Display Panel
Contrast Ratio :
800:1
Work Mode :
IPS, Normally Black, Transmissive
Warranty :
90 days
Good View at :
Symmetry
Viewing Angle :
85/85/85/85 (Typ.)(CR≥10)
Description
EE101IA-01D LCD Modules 10.1 Inch 1280*800 TFT LCD Display Panel
EE101IA-01D - 10.1″ Industrial TFT-LCD Module
The EE101IA-01D is a 10.1-inch a-Si TFT-LCD CELL panel from Innolux, designed as a mid-sized high-resolution display for embedded and tablet applications. This module uses an LVDS interface and does not include a backlight or backlight driver, making it ideal for integration into systems where custom backlighting is provided separately (e.g., industrial displays, embedded HMIs, or tablet devices).
Key Specifications
Panel Size (Diagonal) 10.1″
Resolution 1280 * 800 (WXGA)
Display Mode IPS, Normally Black, Transmissive
Viewing Angle 85°/85°/85°/85° (L/R/U/D, typical)
Contrast Ratio ~800:1 (typical)
Colors 16.7M (8-bit color)
Pixel Arrangement RGB Vertical Stripe
Signal Interface LVDS (1-channel, 8-bit, 40-pin)
Brightness / Backlight No backlight included (panel only)
Surface Hard coating
Response Time ~10/15 ms (Tr/Td, typical)
EE101IA-01D LCD Modules 10.1 Inch 1280*800 TFT LCD Display Panel
