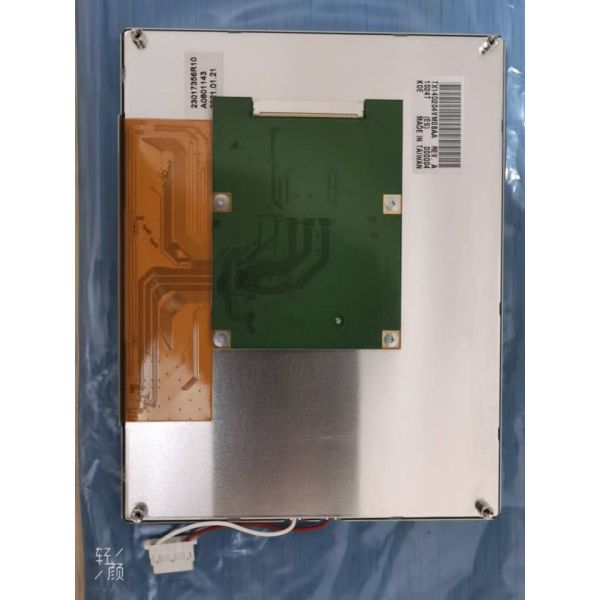

TX14D204VM0BAA LCD 5.7 Inch 640*480 20-Pin Resistive TFT LCD Panel Display Screen LCD
TX14D204VM0BAA LCD 5.7 Inch 640*480 20-Pin Resistive TFT LCD Panel Display Screen LCD
TX14D204VM0BAA LCD 5.7 Inch 640*480 20-Pin Resistive TFT LCD Panel Display Screen LCD
TX14D204VM0BAA LCD 5.7 Inch 640*480 20-Pin Resistive TFT LCD Panel Display Screen LCD
TX14D204VM0BAA LCD 5.7 Inch 640*480 20-Pin Resistive TFT LCD Panel Display Screen LCD
TX14D204VM0BAA LCD 5.7 Inch 640*480 20-Pin Resistive TFT LCD Panel Display Screen LCD
Specifications
Place of Origin :
Japan
Brand Name :
None
Model Number :
TX14D204VM0BAA
MOQ :
1 acre
Price :
$196.02 / acre
Application :
TX14D204VM0BAA
Interface :
TX14D204VM0BAA
Type :
Resistive, TFT
Brightness :
800 (Typ.)(cd/m²)
Signal Type :
LVDS (1 ch, 6-bit) , 20 pins Connector
Touch panel :
4-wire Resistive Touch Panel Optional
Resolution :
640*480
Backlight :
3S9P WLED , 50K hours , No Driver
Arrangement :
RGB Vertical Stripe
Display Size :
5.7inch
Description
TX14D204VM0BAA LCD 5.7 Inch 640*480 20-Pin Resistive TFT LCD Panel Display Screen
Product Overview

TX14D204VM0BAA is a 5.7-inch industrial TFT LCD panel from Japan Display Inc. (JDI), formerly associated with Hitachi / KOE industrial display series.

Technical Specifications
Screen Size: 5.7 inch
Resolution: 640 × 480 (VGA)
Display Type: a-Si TFT-LCD, Transmissive
Display Mode: IPS-like, Normally Black
Interface: LVDS, 20 pins
Brightness: 800-1000 cd/m²
Contrast Ratio: 1000:1
Viewing Angle: 85/85/85/85
Display Colors: 262K colors
Backlight: WLED, 50,000 hours lifetime
Active Area: 115.2 × 86.4 mm
Product Description

TX14D204VM0BAA is a high-brightness industrial VGA TFT LCD module designed for harsh industrial and outdoor environments. It features wide viewing angles, LED backlight technology, LVDS interface, and ultra-wide operating temperature support for reliable long-term operation.

Common Applications
  • HMI systems
  • PLC equipment
  • Industrial automation
  • Medical devices
  • CNC machines
  • Transportation systems
  • Outdoor industrial equipment
  • Embedded display applications
TX14D204VM0BAA LCD 5.7 Inch 640*480 20-Pin Resistive TFT LCD Panel Display Screen LCD
Frequently Asked Questions
1. Who are we?
We are based in Guangdong, China, starting from 2008. We sell to North America (30.00%), South America (20.00%), Southeast Asia (18.00%), Eastern Europe (8.00%), Western Europe (7.00%), Mid East (5.00%), South Asia (3.00%), Northern Europe (2.00%), Central America (2.00%), Southern Europe (2.00%), Oceania (2.00%), Eastern Asia (1.00%). There are about 11-50 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production; Always final inspection before shipment.
3. What can you buy from us?
Touch Screen, LCD Display, Control Board
4. Why should you buy from us not from other suppliers?
We maintain long-term relationships with main worldwide LCD manufacturers. We specialize in displays used in Point of Sale, ATM Banking, Medical and Industrial applications. Popular brands in stock are AUO, Hitachi, Kyocera, Sharp, Mitsubishi and NEC.
5. What services can we provide?
Accepted Delivery Terms: FOB; Accepted Payment Currency: USD, EUR, HKD; Accepted Payment Type: T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow; Language Spoken: English, Chinese, Spanish, German
