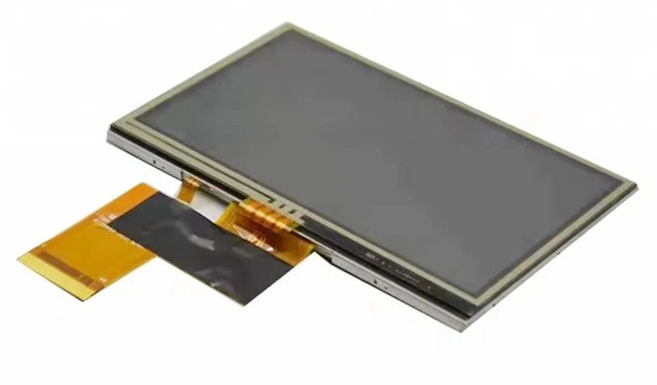

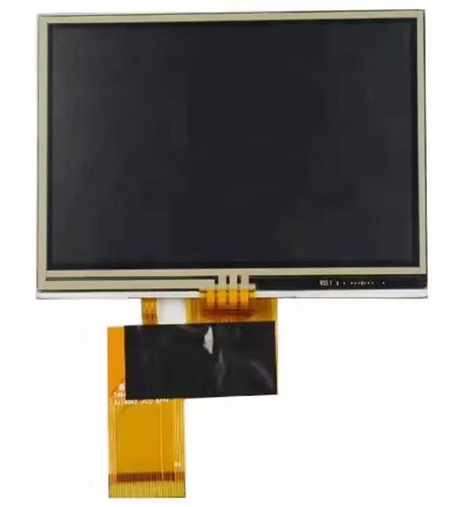

TM043NBH02‑40 is a 4.3‑inch TFT LCD panel with the following typical industry specifications:

Core Specs

• Display Size: 4.3 inch diagonal

• Resolution: 480 × 272 pixels (WQVGA)

• Panel Type: a‑Si TFT‑LCD (active matrix)

• Display Mode: TN (Twisted Nematic), normally white, transmissive

• Pixel Format: RGB vertical stripe

• Color Depth: ~16.7 M colors

• Brightness: ~280–300 cd/m² (typical)

• Contrast Ratio: ~450–800 : 1 (typical)

• Viewing Angles: ~70/70/70/50 degrees (CR≥10)

• Response Time: ~20 ms (typical)

• Aspect Ratio: 16:9

• Interface: Parallel RGB, 40‑pin FPC (1‑channel 8‑bit data)

• Supply Voltage: ~3.3 V typical

• Backlight: WLED array (no driver on panel)

Mechanical

• Active Area: ~95.0 × 53.9 mm

• Module Size: ~105.5 × 67.2 × ~4.1–4.4 mm

• Operating Temp: ~–20 °C to +70 °C; Storage ~–30 °C to +80 °C

Summary: This is a compact industrial‑grade TFT LCD module with a parallel RGB interface (no LVDS/eDP) tailored for embedded designs such as handheld equipment, portable navigation, industrial displays, or consumer devices.

FAQ

1. who are we?
We are based in Guangdong, China, start from 2008,sell to North America(30.00%),South America(20.00%),Southeast Asia(18.00%),Eastern Europe(8.00%),Western Europe(7.00%),Mid East(5.00%),South Asia(3.00%),Northern Europe(2.00%),Central America(2.00%),Southern Europe(2.00%),Oceania(2.00%),Eastern Asia(1.00%),Domestic Market(0.00%),Africa(0.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Touch Screen, LCD Display, Control Board
4. why should you buy from us not from other suppliers?
We long-term & keep tight fellowship with main worldwide LCD manufacturers.We specialize in displays used in Point of Sale, ATM Banking, Medical and Industrial applications. Popular brands in stock are AUO , Hitachi, Kyocera, , Sharp, Mitsubishi and NEC.
5. what services can we provide?
Accepted Delivery Terms: FOB；
Accepted Payment Currency:USD,EUR,HKD;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,German
