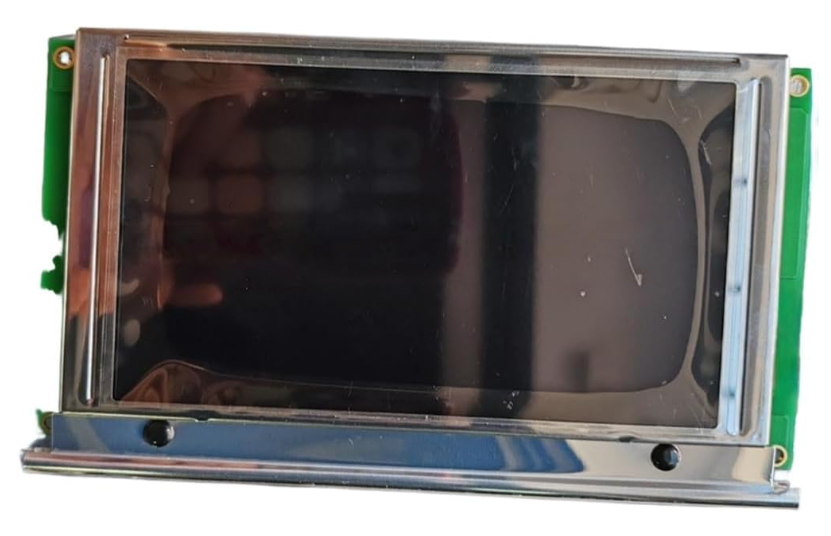

The AND1741MST is a 240 × 128 dot graphic LCD module with an on-board controller (T6963C) and built-in display memory, allowing it to show text, numerals, symbols, and custom graphic patterns without needing an external framebuffer.

Key Specifications

Display & Mode

• Resolution: 240 × 128 dots (graphic matrix)

• Format: Full dot matrix LCD with “white-page” appearance

• Display Type: Black-and-white transmissive STN or MST (super-twist) LCD with excellent contrast and readability.

• Backlight: Built-in CCFL fluorescent backlight for enhanced visibility.

• Controller: On-board T6963C LCD controller with internal RAM for direct graphic handling.

• Character Capability: Up to 40 characters × 18 lines with selectable fonts (6×8 or 8×8).

Optical & Mechanical

• Viewing Area: ~126.0 mm × 70.0 mm visible area.

• Outline Size: ~170.0 mm × 105.0 mm × 14.0 mm max.

• Dot Pitch: 0.50 mm (both horizontal and vertical).

• Weight: Approximately 250 g.

Typical Applications

AND1741MST modules are widely used in:

• Industrial controls & displays — status screens, operator panels

• Medical and test equipment — showing measurements, menus

• Point-of-sale (POS) terminals — user interfaces

• Portable instrumentation — compact graphical UI screens

• Marine and field devices — rugged equipment views where simple graphics are needed
