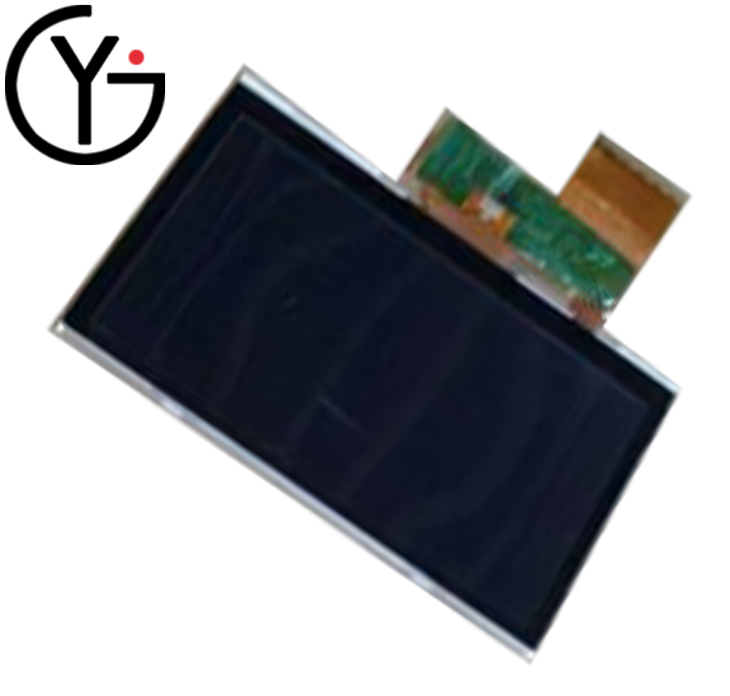

The Samsung LMS430HF15 is a 4.3‑inch WQVGA (480 × 272) TFT‑LCD panel designed for compact display applications such as portable navigation devices, MP4/portable media players, handheld systems, and embedded displays.

Key Specifications

• Display Size: 4.3″ diagonal (16:9 wide)

• Resolution: 480 × 272 (WQVGA) with RGB horizontal stripe pixel layout

• Panel Type: a‑Si TFT‑LCD, transmissive, VA mode (normally black)

• Colors: 16.7 million (8‑bit)

• Brightness: ~500 cd/m² (typ.)

• Contrast Ratio: ~800:1 (typ.)

• Viewing Angles: ~80°/80°/80°/80° (L/R/U/D)

• Response Time: ~17/15 ms (Tr/Td)

• Interface: Parallel RGB (1 channel, 8‑bit) via a 45‑pin FPC connector

• Backlight: Edge‑lit WLED array (10 LEDs in 1 string)

Overview

The LMS430HF15 is a compact, wide‑format TFT LCD panel offering good brightness, solid contrast, and basic industrial/environmental support for handheld and embedded display projects. Its standard parallel RGB interface makes it easy to integrate with many controllers and systems where a small display is needed.
