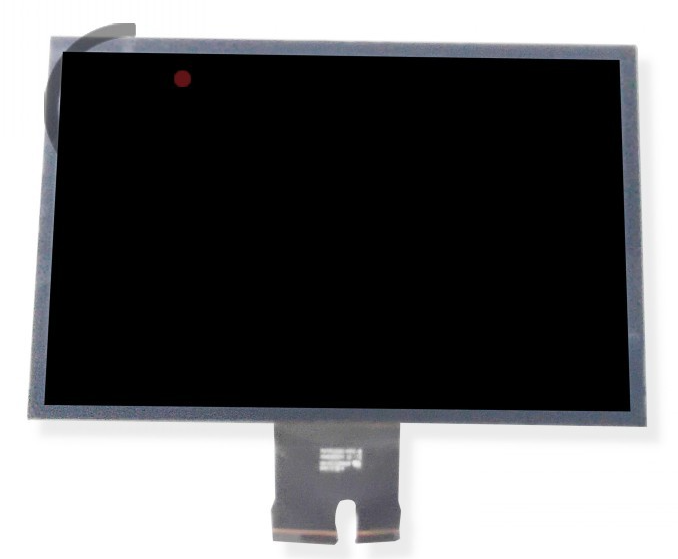

NEC NL12880BC20‑05BD — 12.1″ WXGA Industrial LCD Module

The NL12880BC20‑05BD is a 12.1‑inch industrial color TFT LCD display with a 1280 × 800 (WXGA) resolution and wide viewing angles, designed for professional and industrial applications such as HMIs, control panels, embedded systems, and instrumentation. It combines a rugged mechanical design with solid optical performance and long backlight life.

Key Specifications

• Display Size: 12.1″ diagonal (landscape)

• Resolution: 1280 × 800 (WXGA) — widescreen industrial resolution

• Panel Type: a‑Si TFT‑LCD, transmissive

• Display Colors: Up to 16.7 million (8‑bit + FRC) or 262K (6‑bit mode)

• Brightness: ~400 cd/m² (typical)

• Contrast Ratio: ~1000:1 (typical)

• Viewing Angles: 88°/88°/88°/88° (L/R/U/D) — ultra‑wide viewing with Super Fine TFT

• Response Time: ~25 ms (typ.)

• Pixel Format: RGB vertical stripe

• Interface: LVDS (1‑ch, 6/8‑bit) with 20‑pin connector

• Backlight: WLED with long life (~70,000 h)

• Operating Temp: ‑20 °C to +70 °C; Storage: ‑30 °C to +80 °C

• Active Area: ~261.12 × 163.2 mm

• Outline Size: ~277.7 × 180.6 × 11.2 mm

• Surface: Anti‑glare + anti‑fingerprint, hard coating (2H)

• Weight: ~620–680 g (typ./max)

Overview & Typical Applications

The NL12880BC20‑05BD is a 12.1″ wide‑format industrial LCD built for professional systems that demand clear visual performance, wide viewing angles, and long‑life reliability. Its WXGA resolution and LVDS interface make it easy to integrate into industrial HMIs, embedded displays, kiosks, automation controls, and other equipment where a balanced combination of size, clarity, and durability is required.
