NL6448BC26-26F 8.4 Inch 640*480 RGB*VGA Tft Lcd Screen DISPLAY Lcd Module
NL6448BC26-26F 8.4 Inch 640*480 RGB*VGA Tft Lcd Screen DISPLAY Lcd Module
NL6448BC26-26F 8.4 Inch 640*480 RGB*VGA Tft Lcd Screen DISPLAY Lcd Module
NL6448BC26-26F 8.4 Inch 640*480 RGB*VGA Tft Lcd Screen DISPLAY Lcd Module
NL6448BC26-26F 8.4 Inch 640*480 RGB*VGA Tft Lcd Screen DISPLAY Lcd Module
NL6448BC26-26F 8.4 Inch 640*480 RGB*VGA Tft Lcd Screen DISPLAY Lcd Module
Specifications
Place of Origin :
Japan
Brand Name :
NEC
MOQ :
1
Price :
$130
Type :
TFT
Display Size :
8.4 inch
Supplier Type :
Angecy
Model :
NL6448BC26-26F
Panel Type :
a-Si TFT-LCD
Luminance :
900
Contrast Ratio :
1000 : 1
Signal Type :
31 pins CMOS (1 ch, 6-bit) , Connector
Display Color :
262k
Size :
8.4
Resolution :
640*480
Backlight :
WLED
Work Mode :
TN, Normally White, Transmissive
Description

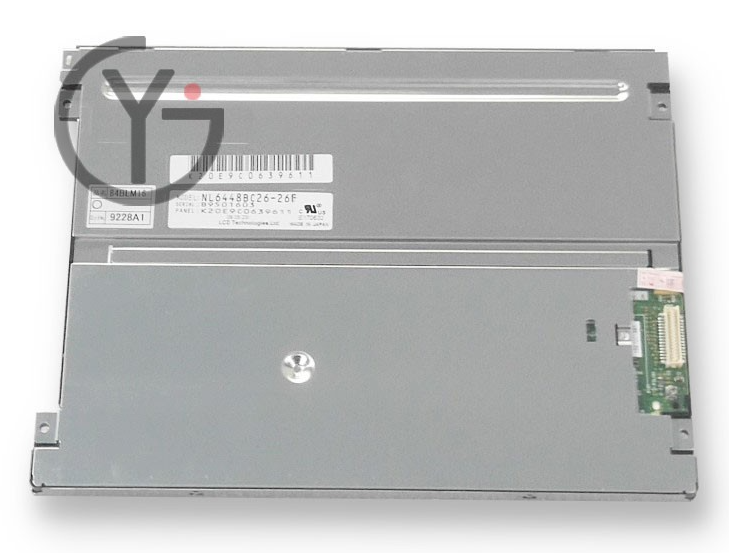

NL6448BC26-26F 8.4 Inch VGA TFT LCD Display Module
Technical Specifications
Panel Size 8.4 inch (Diagonal)
Resolution 640 × 480 (VGA)
Brightness 900 cd/m² (Ultra-High Brightness)
Contrast Ratio 1000:1 (Typical)
Interface 6-bit CMOS / TTL (1-ch, 31-pin)
Backlight WLED (70,000-hour life, Replaceable)
Key Features & Benefits
  • Sunlight Readable: With exceptional brightness of 900 nits, this display remains clearly visible under direct sunlight and high-glare conditions, significantly outperforming standard industrial panels.
  • Extreme Environment Ready: Operating temperature range from -30°C to 80°C ensures reliable performance in unconditioned outdoor enclosures and heavy machinery engine rooms.
  • Long-Life Replaceable Backlight: WLED backlight rated for 70,000 hours (approximately 8 years of continuous operation). The lamp string is designed to be replaceable (Part: 84LHS17), extending total display service life.
  • Legacy Compatibility: Industry-standard 31-pin CMOS interface (Hirose DF9 series) enables high-brightness drop-in replacement for older 8.4" VGA panels.
NL6448BC26-26F 8.4 Inch 640*480 RGB*VGA Tft Lcd Screen DISPLAY Lcd Module
Frequently Asked Questions
Who are we?
We are an established display technology company based in Guangdong, China, operating since 2008. Our products are distributed globally with significant presence in North America (30%), South America (20%), Southeast Asia (18%), and European markets.
How do we guarantee quality?
We maintain strict quality control through pre-production samples and final inspection before shipment to ensure consistent product excellence.
What products do we offer?
We specialize in Touch Screens, LCD Displays, and Control Boards for industrial and commercial applications.
Why choose us over other suppliers?
We maintain long-term partnerships with leading worldwide LCD manufacturers and specialize in displays for Point of Sale, ATM Banking, Medical, and Industrial applications. Popular brands in stock include AUO, Hitachi, Kyocera, Sharp, Mitsubishi, and NEC.
What services do we provide?
We offer FOB delivery terms and accept multiple payment methods including T/T, L/C, Credit Card, PayPal, Western Union, Cash, and Escrow. Our team communicates in English, Chinese, Spanish, and German.
