LZZBJ9-35A Current Transformer Epoxy Resin Cast Transformer
LZZBJ9-35A Current Transformer Epoxy Resin Cast Transformer
LZZBJ9-35A Current Transformer Epoxy Resin Cast Transformer
LZZBJ9-35A Current Transformer Epoxy Resin Cast Transformer
LZZBJ9-35A Current Transformer Epoxy Resin Cast Transformer
LZZBJ9-35A Current Transformer Epoxy Resin Cast Transformer
Specifications
Place of Origin :
Zhejiang, China
Brand Name :
Customized
Model Number :
LZZBJ9-35A
Usage :
Current
Phase :
Single
Coil Structure :
TOROIDAL
Coil Number :
AUTOTRANSFORMER
Color :
Brown
Product name :
Indoor Single Phase Epoxy Resin Casting Type Cureent Transformer
Material :
Copper
Frequency :
50Hz/60Hz
Keyword :
Current Transformer
Temperature :
-5℃~+40℃
Application :
Metering Protection
Specifications :
5/5-500/5
Secondary current :
5A/1A
Certification :
CE
Packaging Details :
Standard Export Packing
Port :
SHANGHAI,NINGBO
Supply Ability :
20000 Piece/Pieces per Month
MOQ :
10 pieces
Price :
$200.00 - $230.00/pieces
Description

LZZBJ9-35A Current Transformer Epoxy Resin Cast Transformer

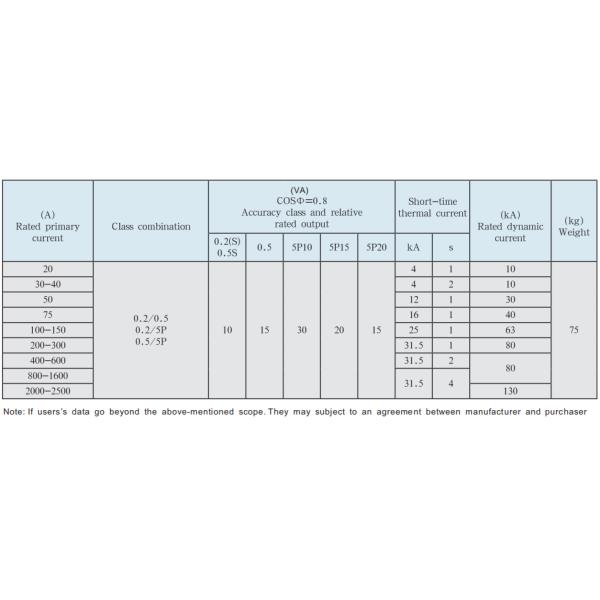

Technical data

The current transformers are in accordance
with GB20840.2 and IEC61869-2 standards
Rated insulation level: 40.5/95/185kV
Rated frequency: 50Hz or 60Hz
Rated secondary current: 5A or 1A
Ambient temperature: -5 ℃~+ 40 ℃
LZZBJ9-35A Current Transformer Epoxy Resin Cast Transformer LZZBJ9-35A Current Transformer Epoxy Resin Cast Transformer LZZBJ9-35A Current Transformer Epoxy Resin Cast Transformer LZZBJ9-35A Current Transformer Epoxy Resin Cast Transformer LZZBJ9-35A Current Transformer Epoxy Resin Cast Transformer LZZBJ9-35A Current Transformer Epoxy Resin Cast Transformer
