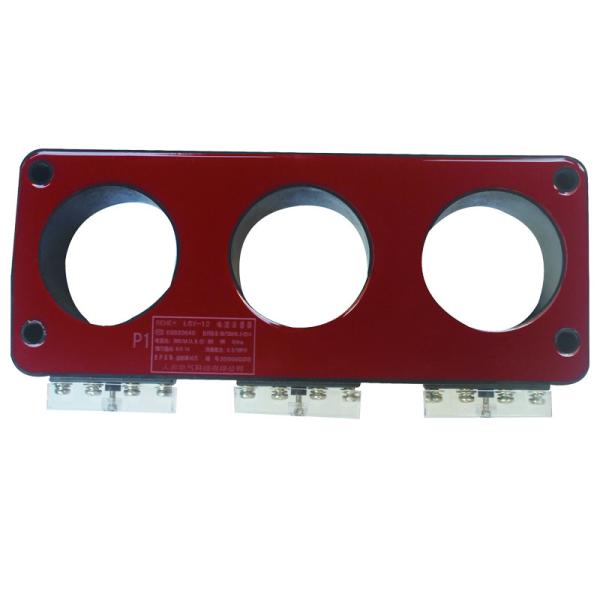

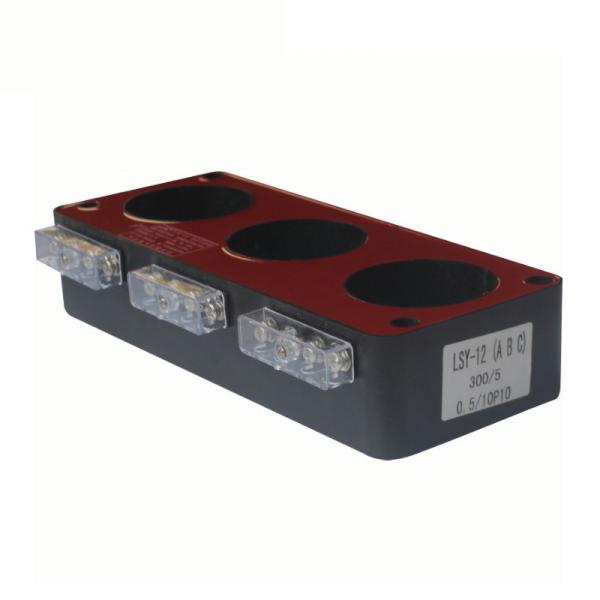

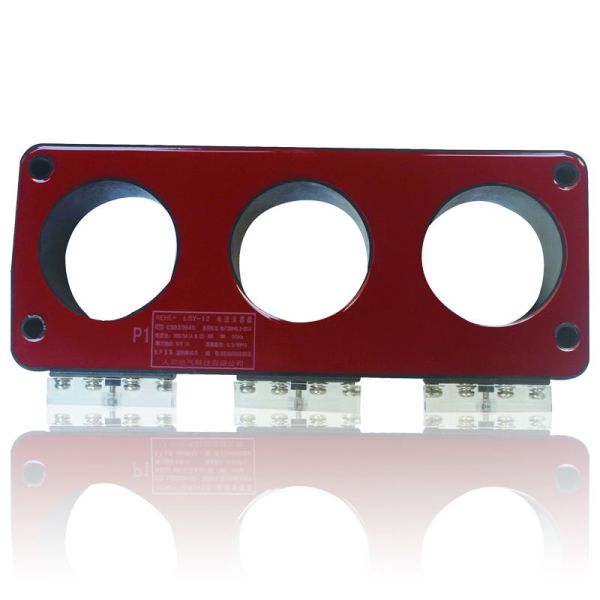

LSY107-10 50/60Hz Indoor Three Phase Epoxy Resin Casting Type Integrated Current Transformer
LSY107-10 50/60Hz Indoor Three Phase Epoxy Resin Casting Type Integrated Current Transformer
LSY107-10 50/60Hz Indoor Three Phase Epoxy Resin Casting Type Integrated Current Transformer
LSY107-10 50/60Hz Indoor Three Phase Epoxy Resin Casting Type Integrated Current Transformer
Specifications
Place of Origin :
Zhejiang, China
Brand Name :
Customized
Model Number :
LSY107-10
Usage :
Current
Phase :
Three
Coil Structure :
TOROIDAL
Coil Number :
AUTOTRANSFORMER
Type :
LSY107-10
Product name :
Three phase integrated current transformer
Material :
Copper
Rated insulation level :
12/42/75kV
Frequency :
50/60 Hz
Ambient temperature :
-5℃~+40℃
Rated secondary current :
AC5A or 1A
Certification :
CE
Packaging Details :
Standard Export Packing
MOQ :
10 pieces
Price :
$46.00/pieces 10-299 pieces
Description

LSY107-10 50/60Hz Indoor Three Phase Epoxy Resin Casting Type Integrated Current Transformer

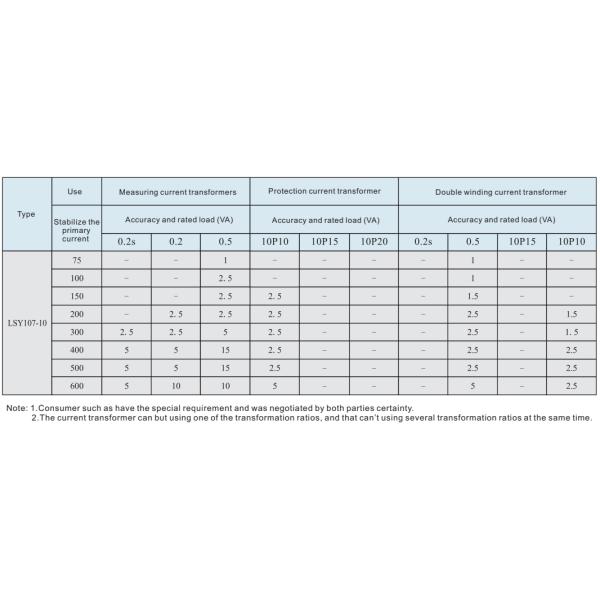

Technical data

The current transformers are in accordance
with GB20840.2 and IEC61869-2 standards
Rated insulation level: 12/42/75
Rated frequency: 50Hz or 60Hz
Rated secondary current: 5A or 1A
Ambient temperature: -5℃~+40℃
LSY107-10 50/60Hz Indoor Three Phase Epoxy Resin Casting Type Integrated Current Transformer LSY107-10 50/60Hz Indoor Three Phase Epoxy Resin Casting Type Integrated Current Transformer LSY107-10 50/60Hz Indoor Three Phase Epoxy Resin Casting Type Integrated Current Transformer LSY107-10 50/60Hz Indoor Three Phase Epoxy Resin Casting Type Integrated Current Transformer LSY107-10 50/60Hz Indoor Three Phase Epoxy Resin Casting Type Integrated Current Transformer LSY107-10 50/60Hz Indoor Three Phase Epoxy Resin Casting Type Integrated Current Transformer
