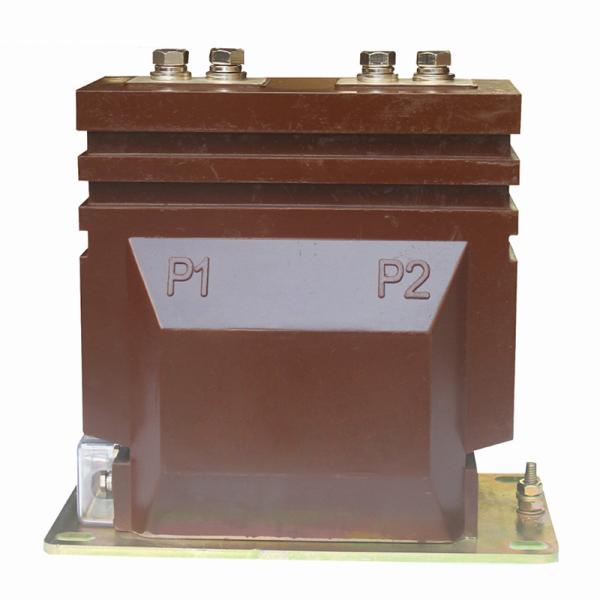

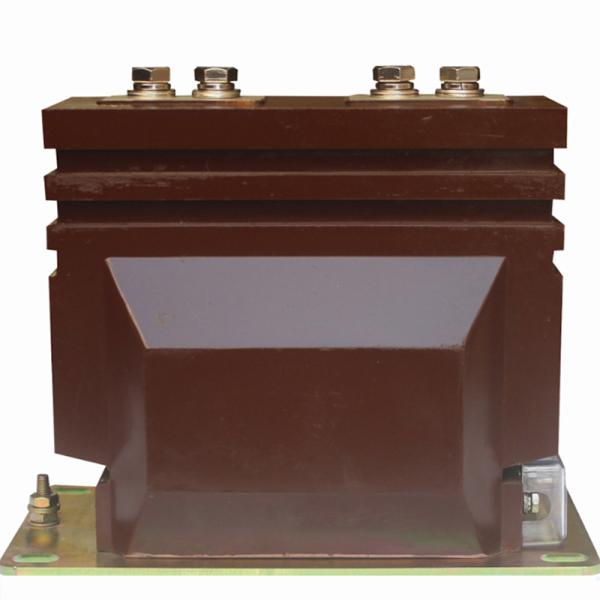

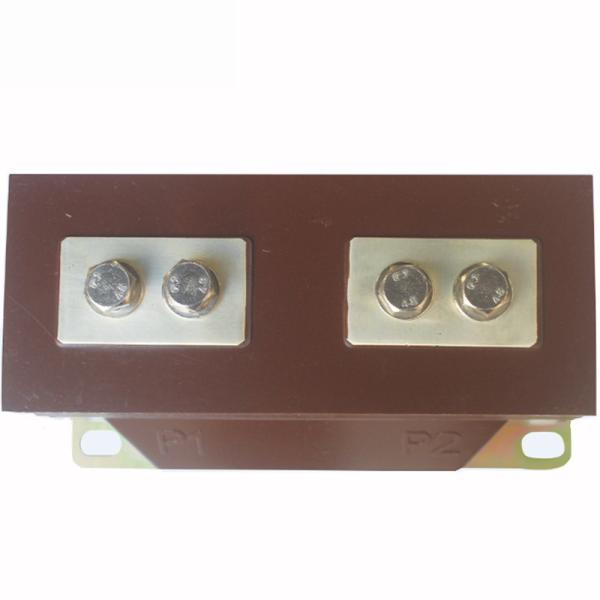

LZZBJ6-10Q Current Transformer Indoor Single-Phase epoxy resin casting type CT
LZZBJ6-10Q Current Transformer Indoor Single-Phase epoxy resin casting type CT
LZZBJ6-10Q Current Transformer Indoor Single-Phase epoxy resin casting type CT
LZZBJ6-10Q Current Transformer Indoor Single-Phase epoxy resin casting type CT
LZZBJ6-10Q Current Transformer Indoor Single-Phase epoxy resin casting type CT
LZZBJ6-10Q Current Transformer Indoor Single-Phase epoxy resin casting type CT
LZZBJ6-10Q Current Transformer Indoor Single-Phase epoxy resin casting type CT
LZZBJ6-10Q Current Transformer Indoor Single-Phase epoxy resin casting type CT
Specifications
Place of Origin :
Zhejiang, China
Brand Name :
Customized
Model Number :
LZZBJ6-10Q
Usage :
Current
Phase :
Single
Coil Structure :
TOROIDAL
Coil Number :
AUTOTRANSFORMER
Color :
Brown
Product name :
Indoor Single Phase Epoxy Resin Casting Type Cureent Transformer
Material :
Copper
Frequency :
50Hz/60Hz
Keyword :
Current Transformer
Temperature :
-5℃~+40℃
Application :
Metering Protection
Specifications :
5/5-500/5
Secondary current :
5A/1A
Certification :
CE
Packaging Details :
Standard Export Packing
Port :
Ningbo, Shanghai
Supply Ability :
5000 Piece/Pieces per Month
Price :
$83.00 - $85.00/pieces
Description

LZZBJ6-10Q Current Transformer Indoor Single-Phase epoxy resin casting type CT

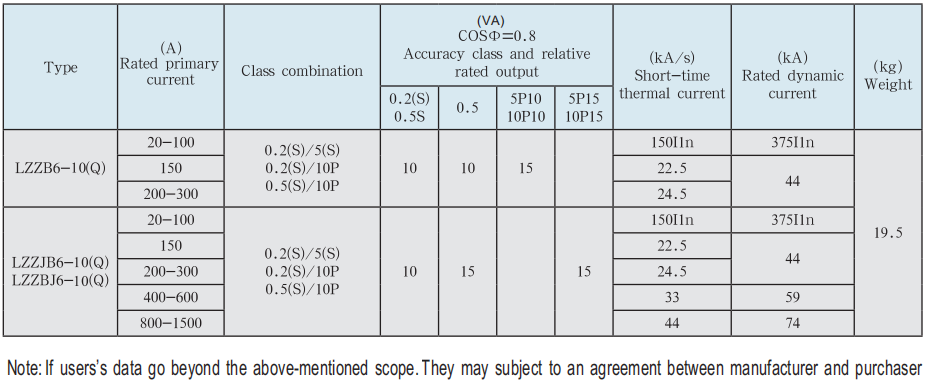

Technical data

The current transformers are in accordance
with GB20840.2 and IEC61869-2 standards
Rated insulation level: 12/42/75kV
Rated frequency: 50Hz or 60Hz
Rated secondary current: 5A or 1A
Ambient temperature: -5 ℃~+ 40 ℃
LZZBJ6-10Q Current Transformer Indoor Single-Phase epoxy resin casting type CT LZZBJ6-10Q Current Transformer Indoor Single-Phase epoxy resin casting type CT LZZBJ6-10Q Current Transformer Indoor Single-Phase epoxy resin casting type CT LZZBJ6-10Q Current Transformer Indoor Single-Phase epoxy resin casting type CT LZZBJ6-10Q Current Transformer Indoor Single-Phase epoxy resin casting type CT LZZBJ6-10Q Current Transformer Indoor Single-Phase epoxy resin casting type CT
