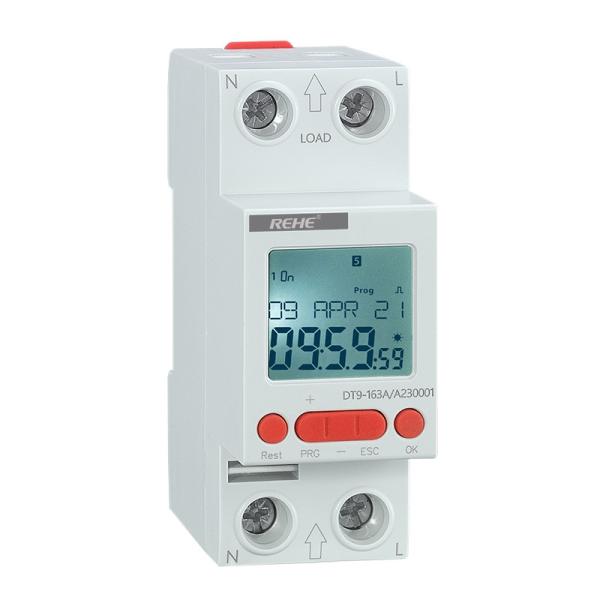

DT9-163 2-MODULE Programmable Switch AC/DC12V-240V AC 230V 50-60Hz 63A/AC1
DT9-163 2-MODULE Programmable Switch AC/DC12V-240V AC 230V 50-60Hz 63A/AC1
Specifications
Place of Origin :
Zhejiang, China
Brand Name :
SUCHEN
Model Number :
DT9-163
Theory :
Time Relay
Contact Load :
Low Power
Supply voltage :
AC/DC 12-240V or AC 230V
Supply voltage tolerance :
-15%; +10%
Back-up supply :
Yes
Summer/winter time :
Automatic
Current rating :
63A/AC1
Switching voltage :
250V AC1/24V DC
Power back-up :
Up to 3 years
Accuracy :
Max.±1s/day at 23℃ (73.4℉)
Data readout :
LCD display, with back light
Electric strength :
4 kV (supply-output)
Packaging Details :
1.Strong Strandard Export Package,Meet The Long-Distance Transportation
Port :
Ningbo or Shanghai
Supply Ability :
5000 Piece/Pieces per Week
MOQ :
10 pieces
Price :
$13.50 - $15.00/pieces
Description

DT9-163 2-MODULE Programmable Switch AC/DC12V-240V AC 230V 50-60Hz 63A/AC1

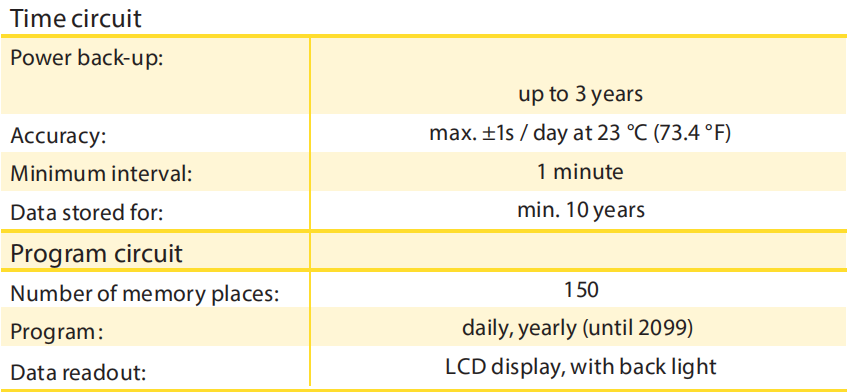

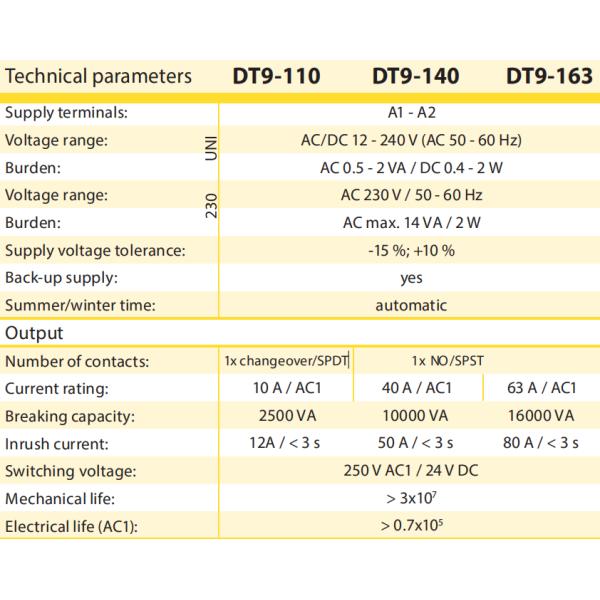

Technical parameters

DT9-163 2-MODULE Programmable Switch AC/DC12V-240V AC 230V 50-60Hz 63A/AC1 DT9-163 2-MODULE Programmable Switch AC/DC12V-240V AC 230V 50-60Hz 63A/AC1 DT9-163 2-MODULE Programmable Switch AC/DC12V-240V AC 230V 50-60Hz 63A/AC1

♦ This time switch clock DT9 is used to control various appliances in real time; daily, weekly, monthly and yearly mode.

♦ Switching: According the program (AUTO)/constantly manually, manually to next program change/random (CUBE).

♦ Holiday program option to choose an interval when the device doesn't switch according to the standard program, but will be block during that time.

♦ Automatic conversion summer/winter time.

♦ Sealable cover of front panel, easy controlling via 4 buttons.

♦ 100 memory places, clear LCD display, min. invertal 1s.

♦ Voltage range: AC 230V or AC/DC 12-240V.

♦ Cyclic output.

♦ Pulse output.

♦ DT9-163: One channel version, 2-MODULE, DIN rail mounting, clamp terminals.

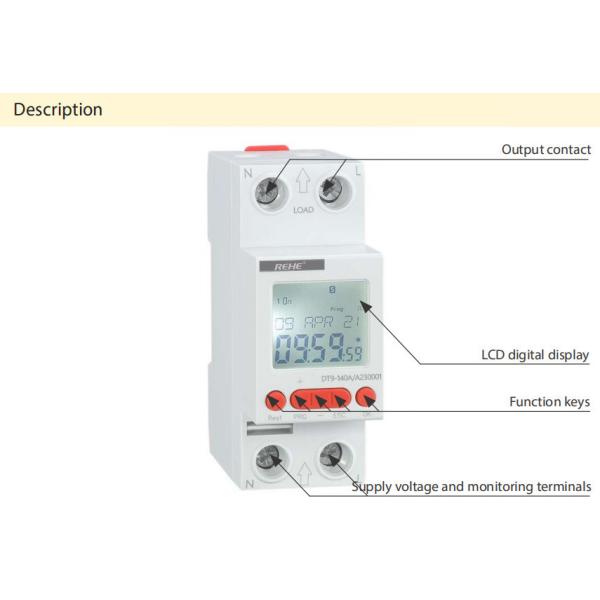

Description

DT9-163 2-MODULE Programmable Switch AC/DC12V-240V AC 230V 50-60Hz 63A/AC1 DT9-163 2-MODULE Programmable Switch AC/DC12V-240V AC 230V 50-60Hz 63A/AC1

Connection

DT9-163 2-MODULE Programmable Switch AC/DC12V-240V AC 230V 50-60Hz 63A/AC1

Symbol

DT9-163 2-MODULE Programmable Switch AC/DC12V-240V AC 230V 50-60Hz 63A/AC1

Model Supply voltage Switching voltage Unit Price
DT9-163

AC/DC 12-240V or

AC 230V

 250V AC1/24V DC 1PC $13.11

DT9-163 2-MODULE Programmable Switch AC/DC12V-240V AC 230V 50-60Hz 63A/AC1 DT9-163 2-MODULE Programmable Switch AC/DC12V-240V AC 230V 50-60Hz 63A/AC1 DT9-163 2-MODULE Programmable Switch AC/DC12V-240V AC 230V 50-60Hz 63A/AC1 DT9-163 2-MODULE Programmable Switch AC/DC12V-240V AC 230V 50-60Hz 63A/AC1
