Very popular energy meter with LCD backlight (5+1) display
Very popular energy meter with LCD backlight (5+1) display
Very popular energy meter with LCD backlight (5+1) display
Very popular energy meter with LCD backlight (5+1) display
Very popular energy meter with LCD backlight (5+1) display
Very popular energy meter with LCD backlight (5+1) display
Very popular energy meter with LCD backlight (5+1) display
Very popular energy meter with LCD backlight (5+1) display
Very popular energy meter with LCD backlight (5+1) display
Very popular energy meter with LCD backlight (5+1) display
Specifications
Place of Origin :
Zhejiang, China
Brand Name :
customized
Model Number :
SC18L
Display Type :
Digital Only
Phase :
Single Phase
Measuring Energy Range :
5(32)A
Accuracy Class :
Class 1.0
Output Voltage :
220V
Operating Temperature :
-20℃~+70℃
Dimensions :
116x17.5x65mm
Color :
White
Rated Voltage :
220V 230V
Frequency :
50HZ 60HZ
Accuracy :
Class 1.0
Warranty :
18 Months
Material :
Flame retardant ABS plastic material
Display Mode :
LCD backlight (5+1)display
Packaging Details :
Packaging Detail:240pcs/carton
Gross Weight:25KGS/CTN
Inner Color box+Master Carton
Port :
ningbo shanghai
Supply Ability :
100000 Piece/Pieces per Month
MOQ :
10 pieces
Price :
$8.88 - $11.27/pieces
Description
Technical parameter
Model number Accuracy Rated voltage Rated current Installation method Wiring mode
RH18L Class 1.0

220V

230V

5(20)A 5(25)A

5(30)A 5(32)A

 Din-Rail

Bottom in and top out

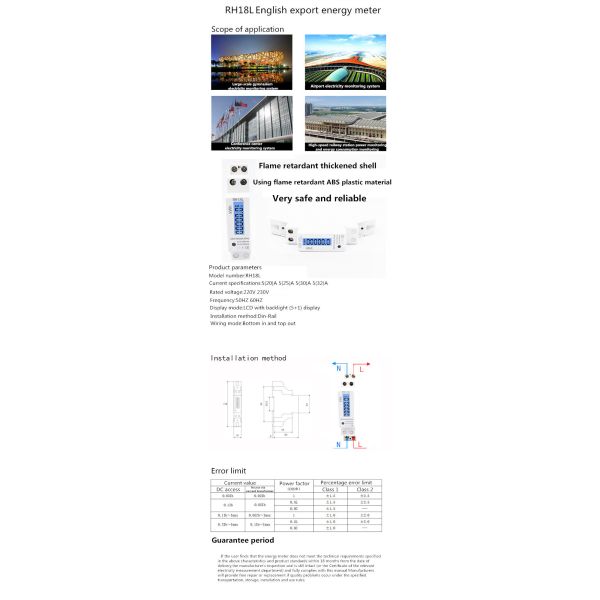

Mount dimension

Very popular energy meter with LCD backlight (5+1) display

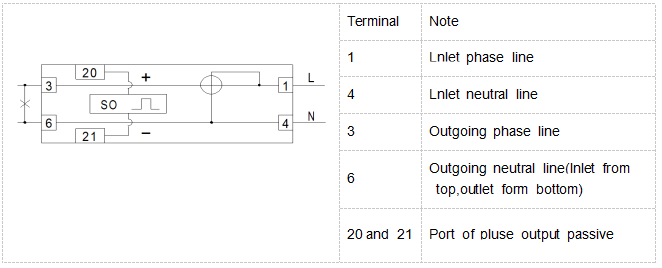

Wiring diagram

Type S

Very popular energy meter with LCD backlight (5+1) display Very popular energy meter with LCD backlight (5+1) display Very popular energy meter with LCD backlight (5+1) display Very popular energy meter with LCD backlight (5+1) display Very popular energy meter with LCD backlight (5+1) display Very popular energy meter with LCD backlight (5+1) display
