High Precision CNC Turret Punching Press 27KW 32 Stations Turret for Metal Plate
High Precision CNC Turret Punching Press 27KW 32 Stations Turret for Metal Plate
High Precision CNC Turret Punching Press 27KW 32 Stations Turret for Metal Plate
High Precision CNC Turret Punching Press 27KW 32 Stations Turret for Metal Plate
High Precision CNC Turret Punching Press 27KW 32 Stations Turret for Metal Plate
High Precision CNC Turret Punching Press 27KW 32 Stations Turret for Metal Plate
Specifications
Brand Name :
D.K.HISTRON
Certification :
CE,ISO9001
Place of Origin :
China
MOQ :
1 Set
Payment Terms :
T/T
Delivery Time :
60days
Packaging Details :
Suitable for long distance transport
Model Number :
HC-40
Price :
depends on model
Supply Ability :
20 sets/month
Keyword :
Automatic Punching Machine
Punching force :
(30) KN(T)
Function :
Sheet metal punching
Max Sheet Weight :
200kg
Machinetype :
CNC
Turret Speed :
40rpm
Condition :
New
Warranty :
1 year
Maximum Thickness :
6.35mm
Repeatability :
±0.03mm
Type :
Punching Machine
Material :
Anodized Aluminum, Stainless Steel
Description
High-Precision Cutting CNC Turret Punching Press with 27KW Motor Power and 32 Stations Turret for Metal Plate
Highlights at a glance
  • High-Precision Cutting: Full Servo Drive ensures smooth operation for precise sheet metal work.
  • Robust Performance: 27KW Motor Power handles heavy-duty sheet metal tasks efficiently.

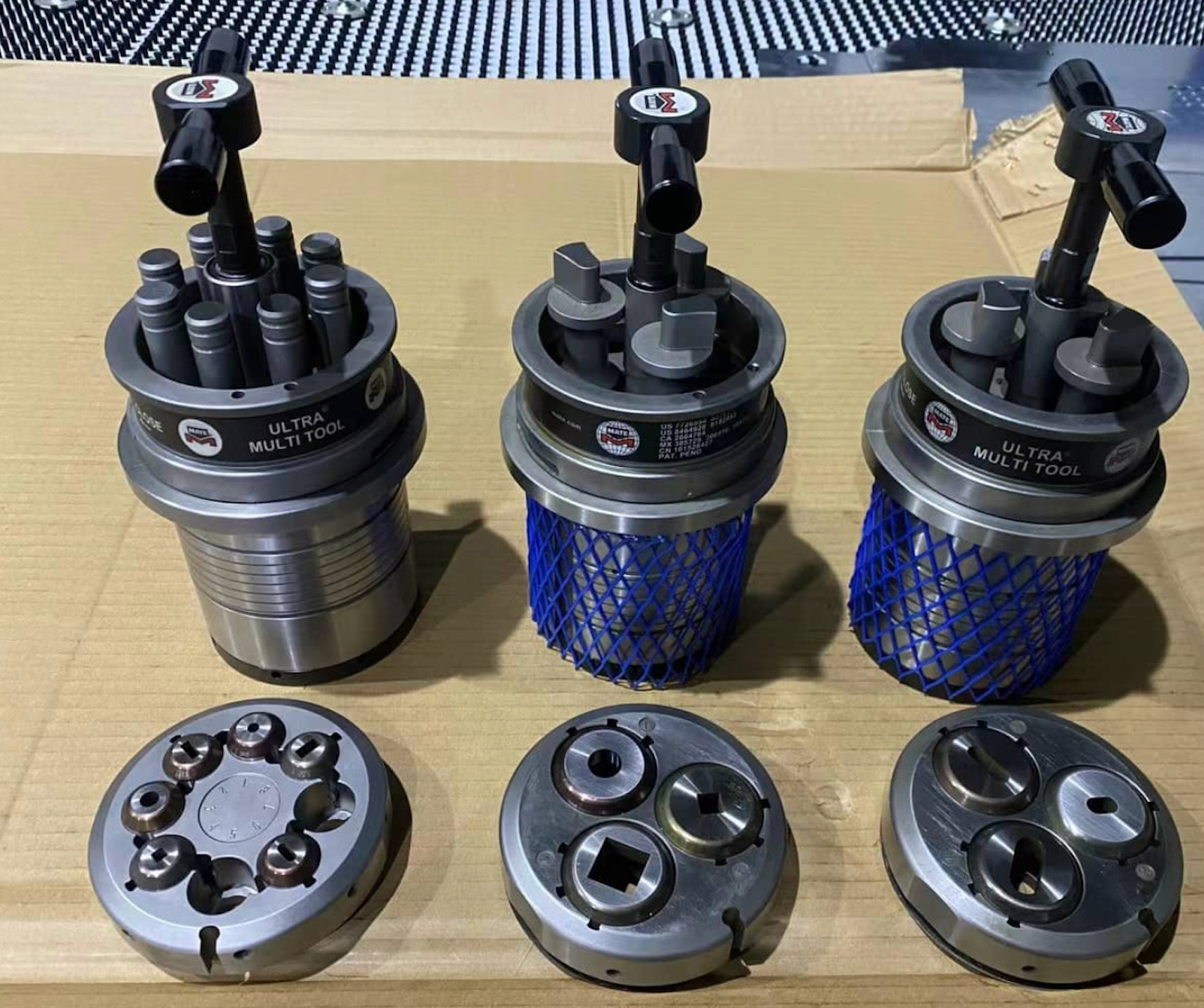

  • Versatile Tooling: 32 Stations Turret offers flexible tooling options for diverse production needs.
  • Energy Efficiency: Servo Direct Drive transmission provides energy-saving performance.

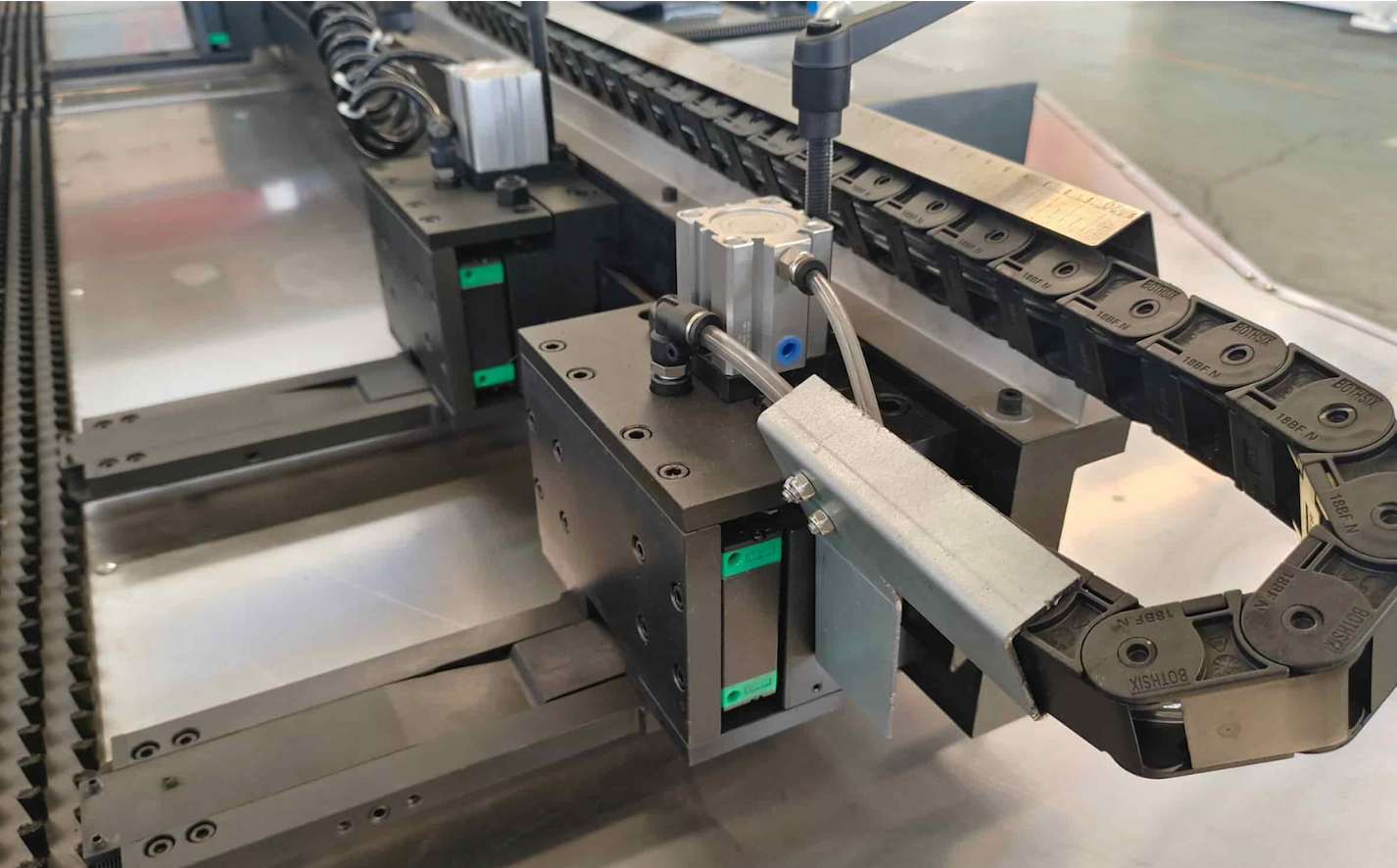

  • Durability: Heavy-duty machine design with NSK guide rails and an automatic lubrication system ensures longevity.
Automatic CNC Turret Punch Press Hole Punching Machine for Sheet Metal

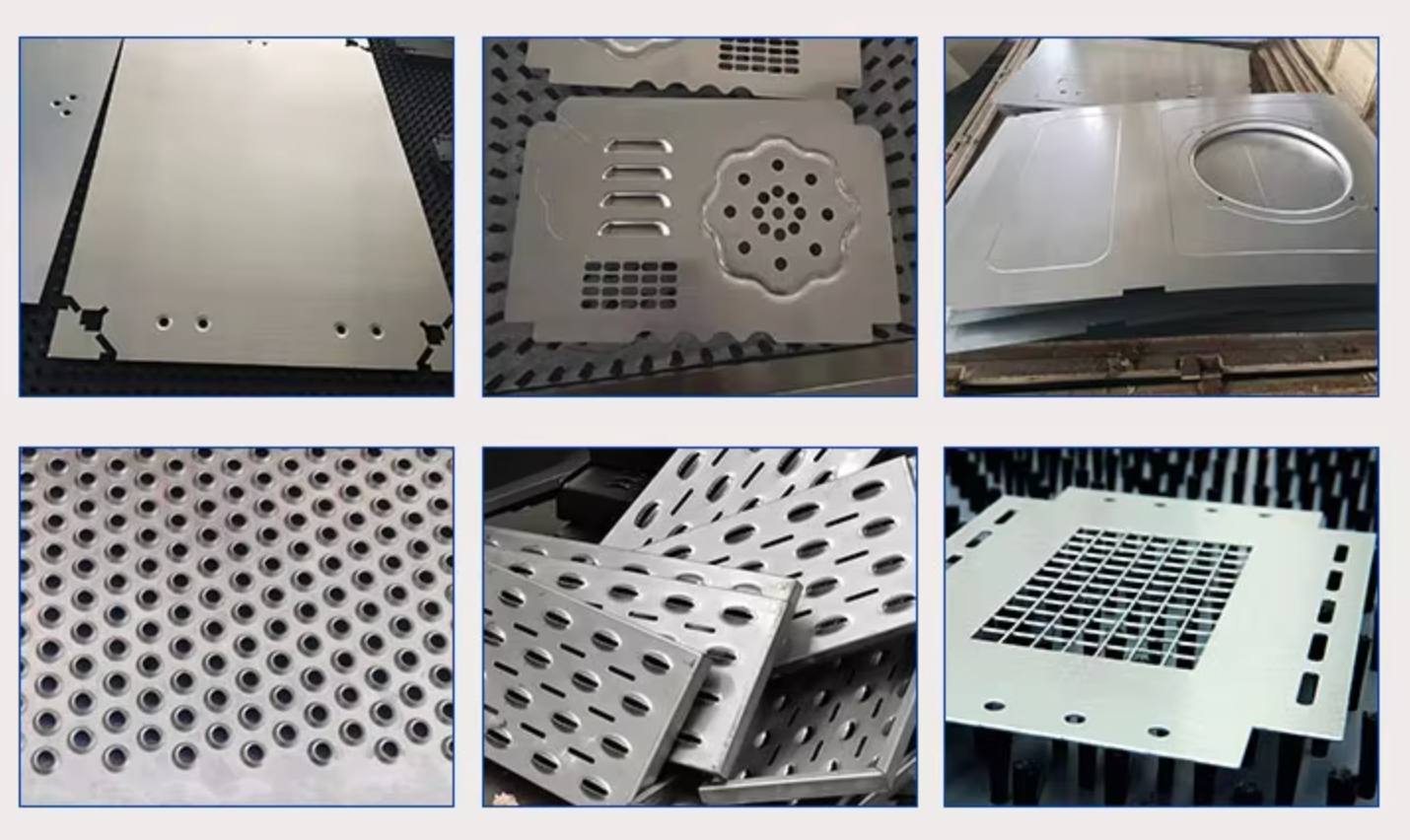

CNC turret punching machine is mechatronics automation equipment, it's widely used in the instruments and meters, chassis cabinets processing, electric control cabinet panels, battery plate, building decorative materials, auto parts, silencing plate, lamps, kitchen equipment, air conditioners and other sheet metal processing industries.

Technical Parameters HC-300/HC-400
Punching force KN 300/400
Frame structure "O" type closed frame
Max. machined plate size mm 5000x1250 5000x1500 5000x2000
Stamping stroke mm 40 40 40
Max. diameter of one punch mm 88.9 88.9 88.9
Max. punching frequency hpm 1800 1800 1800
Max. processed sheet thickness mm 6.35 6.35 6.35
Workstation piece 28/32 28/32 28/32
Hole spacing accuracy mm ±0.10 ±0.10 ±0.10
Max. punching frequency (1mm pitch, 6mm stroke) hpm 800 800 800
Max. punching frequency (25.4mm pitch, 6mm stroke) hpm 400 400 400
Max. speed of sheet movement m/min 106 106 106
Number of control axes piece 5 5 5
Turret speed r/min 30 30 30
Maximum mass of workpiece kg 156 156 156
Air supply pressure Mpa 0.6 0.6 0.6
Overall dimensions(LXWXH) mm 5200x5200x2280 5500x5200x2280 6400x5200x2280
High Precision CNC Turret Punching Press 27KW 32 Stations Turret for Metal Plate
High Precision CNC Turret Punching Press 27KW 32 Stations Turret for Metal Plate High Precision CNC Turret Punching Press 27KW 32 Stations Turret for Metal Plate High Precision CNC Turret Punching Press 27KW 32 Stations Turret for Metal Plate

High Precision CNC Turret Punching Press 27KW 32 Stations Turret for Metal Plate

High Precision CNC Turret Punching Press 27KW 32 Stations Turret for Metal Plate

FAQ:
  1. What is the delivery time?

30-50 working day, based on factory’s production order conditions.

  1. How to installation machine?

We supply overseas service, engineer can go to your place guide installation and debugging.

  1. What size machine suit for us?

We design machine following your request, usually based on your workpiece size, weight and efficiency.

  1. How to control the quality?

One year warranty,and 10 teams QC to check every part from drawing to machine finished.

  1. What can you buy from us?

CNC Turret Punch Press,CNC bending machine,Fiber Laser Cutting Machine,Bending Automation,Flexible Manufacturing System,Panel bender and sheet plate automatic production lines.

Our service:
  • Machine guarantee one year except damage by human wrong operation caused.
  • Provide installation drawings, pit design drawings, operation manuals, electrical manuals, maintenance manuals, electrical wiring diagrams, certificates and packing lists...
  • We can go to your factory to guiding installation and train your stuff.
