High Precision CNC Panel Bender For Metal Door Sheet Metal Fabrication
High Precision CNC Panel Bender For Metal Door Sheet Metal Fabrication
High Precision CNC Panel Bender For Metal Door Sheet Metal Fabrication
High Precision CNC Panel Bender For Metal Door Sheet Metal Fabrication
High Precision CNC Panel Bender For Metal Door Sheet Metal Fabrication
High Precision CNC Panel Bender For Metal Door Sheet Metal Fabrication
High Precision CNC Panel Bender For Metal Door Sheet Metal Fabrication
High Precision CNC Panel Bender For Metal Door Sheet Metal Fabrication
Specifications
Brand Name :
D.K.HISTRON
Model Number :
HC-F1200
Certification :
CE
Place of Origin :
CHINA
MOQ :
1SET
Price :
15000-30000USD
Payment Terms :
T/T
Supply Ability :
26sets/month
Delivery Time :
60 days
Packaging Details :
suitable for long time transport
Productname :
Flanging Machine
Controlsystem :
CNC Control
Safetyfeatures :
Emergency Stop, Safety Guards
Weight :
Approximately 3500kg
Materialcompatibility :
Steel, Aluminum, Copper
Powersupply :
By customer's requirements
Motortype :
Servo Motor
Flexibility :
High
Precision :
±0.1mm
Application :
Sheet Metal Fabrication
Description
HC-F2000 Intelligent Flexible Bending Center
High productivity thin sheets intelligent flexible bending center for sheet metal panel bending with automatic operation capabilities.
Product Description
The HC-F2000 features customizable bending height capability, allowing specification beyond the standard 70mm. This flexibility accommodates special applications requiring deeper bends, taller flanges, or unusual part geometries. Custom height versions maintain all core features including suction cup feeding, self-developed control system, and precision bending performance.
Product Advantages
  • Height customization eliminates limitations for special applications
  • Standard machine performance maintained despite modifications
  • Suction cup feeding protects surface quality regardless of height
  • Precision control ensures accuracy on tall bends
  • Quick changeover maintains productivity
  • D.K. Histron engineering ensures reliability of custom configurations
Technical Specifications
Model HC-F1200 HC-F2000
Feeding structure Sucked type Sucked type
Minimum internal dimensions for quadrilateral forming 70mm x 200mm 100mm x 200mm
Bending height 70mm (customizable) 70mm (customizable)
Average power Approximately 1.5KW Approximately 1.8KW
User operating environment Operation system above Win7 Operation system above Win7
Maximum bending thickness Cold plate 1.0mm
304 stainless steel 0.5mm		 Cold plate 1.0mm
304 stainless steel 0.5mm
Number of axles 7 or 16 7 or 16
Applications
Custom height versions serve specialized applications including deep-drawn components, tall-flange enclosures, architectural features requiring extended bends, medical equipment with unusual geometries, and custom fabrication projects where standard height is insufficient.
High Precision CNC Panel Bender For Metal Door Sheet Metal Fabrication

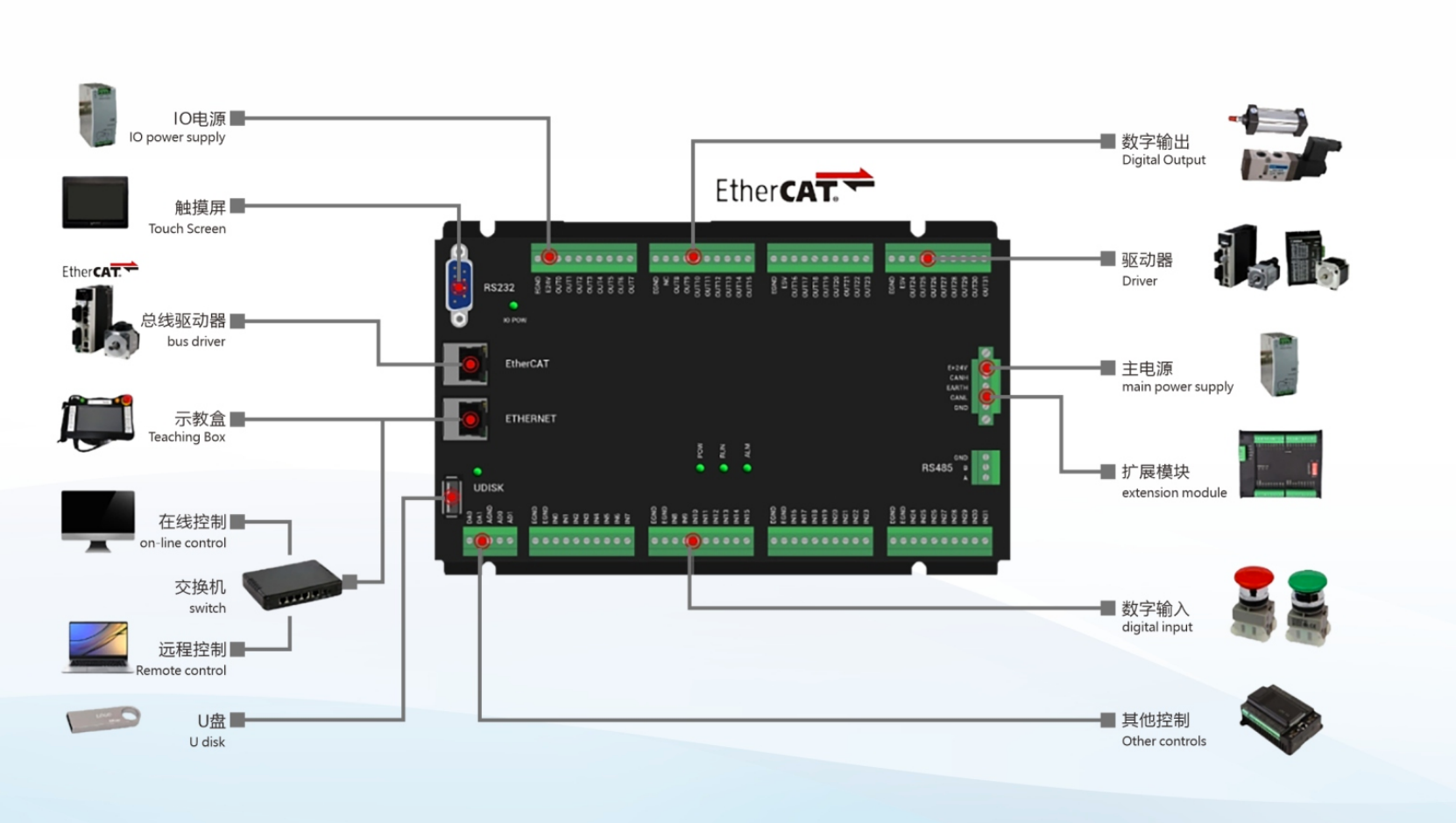

Control System
The bending center control system employs a top-level computer numerical control (CNC) system integrated with motion control cards. The CNC system features an intuitive human-machine interface and supports graphical programming. With exceptional position calculation capabilities, it significantly enhances production efficiency and precision in automated manufacturing. The motion control cards support 24-axis operation, with an expandable capacity up to 64 axes, and utilize EtherCAT bus control for high-precision motion control.
High Precision CNC Panel Bender For Metal Door Sheet Metal Fabrication

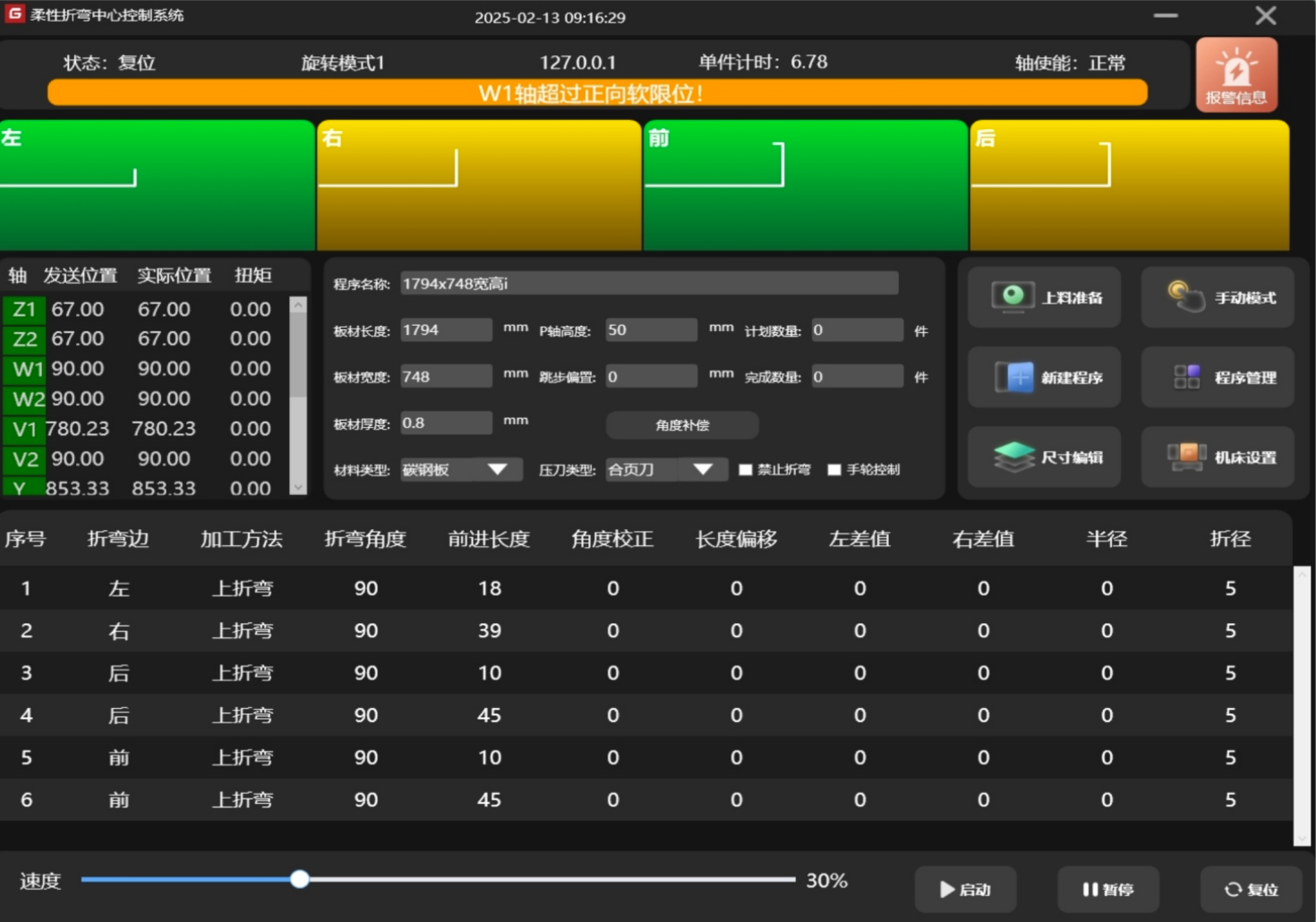

Operation Interface
The interface is simple, easy to learn, with good human-computer interaction.
High Precision CNC Panel Bender For Metal Door Sheet Metal Fabrication

High Precision CNC Panel Bender For Metal Door Sheet Metal Fabrication

High Precision CNC Panel Bender For Metal Door Sheet Metal Fabrication

Frequently Asked Questions
  • Can you arrange samples for me?
    Of course, we provide free samples according to customer requirements.
  • What is the warranty period for the machine?
    The warranty period for the machine is one year. Lifetime maintenance and upgrade services are provided after the warranty period.
  • Are all the machines standard?
    No, customization is available. We can manufacture non-standard machines according to customer requirements.
  • What products can your machines produce?

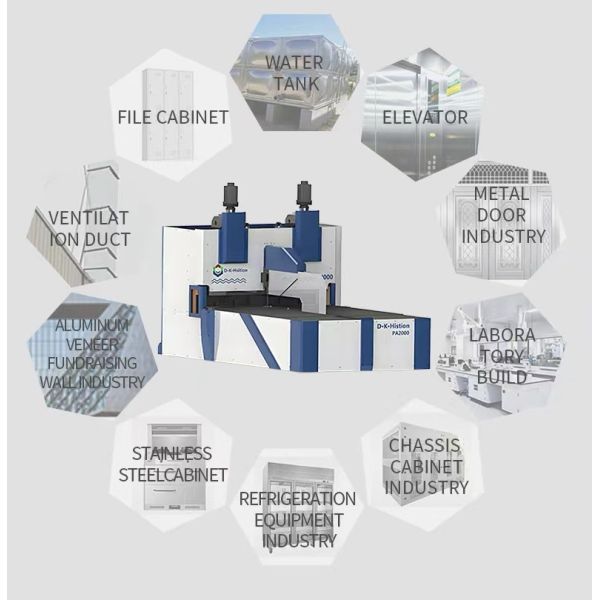

    Applications include: File cabinetry, aluminum veneer wall industry, stainless steel kitchenware industry, refrigeration equipment industry, chassis and cabinet industry, laboratory construction industry, metal door industry, and more.
  • What types of sheet materials can your machine bend?
    Typically, carbon sheet, aluminum sheet, stainless sheet, and galvanized sheet are available.
