Fully Automated CNC Bending Center with High Precision Bending and Up to 180 Degrees Bending Angle
Fully Automated CNC Bending Center with High Precision Bending and Up to 180 Degrees Bending Angle
Fully Automated CNC Bending Center with High Precision Bending and Up to 180 Degrees Bending Angle
Fully Automated CNC Bending Center with High Precision Bending and Up to 180 Degrees Bending Angle
Fully Automated CNC Bending Center with High Precision Bending and Up to 180 Degrees Bending Angle
Fully Automated CNC Bending Center with High Precision Bending and Up to 180 Degrees Bending Angle
Fully Automated CNC Bending Center with High Precision Bending and Up to 180 Degrees Bending Angle
Fully Automated CNC Bending Center with High Precision Bending and Up to 180 Degrees Bending Angle
Specifications
Brand Name :
D.K.HISTRON
Model Number :
HC-2500
Certification :
CE,ISO9001
Place of Origin :
CHINA
MOQ :
1SET
Price :
12000-200000USD
Payment Terms :
T/T
Supply Ability :
20sets/month
Delivery Time :
60 days
Packaging Details :
wodden or polybags
Productname :
Aluminum Veneer Wall Industry FLEXIBLE BENDING CENTER
Controlsystem :
CNC (Computer Numerical Control)
Type :
Bending Machine
Maxbendingangle :
Up to 180 degrees
Precision :
High precision bending
Automationlevel :
Fully automated
Description
Automatic CNC Bending Center
Up to 180 degrees bending angle capable of handling arc bending, step bending, and hemming with one tool set metal folding machine.
Product Overview
The Flexible Bending Center specializes in solving complex sheet metal shapes bending challenges encountered in metal forming. It revolutionizes traditional manual tool changing processes and achieves industrial production automatically and intelligently.
Key Performance Features
  • Bending speeds as low as 0.2 seconds per cut
  • Single-shot workpiece capability
  • Automatic up and down bending according to process requirements
  • Capable of arc bending, corner bending, and various angle combinations with one tool set
Technical Parameters
Model HC-2500 HC-2500P
Feeding structure Pressure arm type Pressure arm type
Minimum internal dimensions for quadrilateral forming 180mm x 280mm 180mm x 280mm
Bending height 170mm (customizable) 170mm (customizable)
Average power About 2.9KW About 3.5KW
User operating environment Operation system above Win7 Operation system above Win7
Maximum bending thickness Cold plate 1.5mm
304 stainless steel 1.0mm		 Cold plate 2.0mm
304 stainless steel 1.5mm
Number of axles 13 13
Alternative Names
Also known as: Metal Sheet CNC Panel Bender, Automatic Sheet Bender, Automatic Panel Bender, Panel Bender Center, Sheet Metal Bender Center, Flexible Bending Center, Multi-sided Bending Center, Automatic Panel Bending Machine, Sheet Folding Intelligent Metal Bending, Panel Bending CNC Machine, Panel Bender Machine.
Industrial Applications
This flexible bending center serves various industries including precision electronics manufacturing for brackets and enclosures, medical equipment production for sterile-grade components, commercial kitchen fabrication for hygienic surfaces, laboratory furniture manufacturing, and decorative architectural elements where surface quality is paramount.
Fully Automated CNC Bending Center with High Precision Bending and Up to 180 Degrees Bending Angle
Advanced Control System
The bending center employs a top-level computer numerical control (CNC) system integrated with motion control cards. Featuring an intuitive human-machine interface with graphical programming support, the system delivers exceptional position calculation capabilities that significantly enhance production efficiency and precision.
  • Motion control cards support 24-axis operation
  • Expandable capacity up to 64 axes
  • EtherCAT bus control for high-precision motion control
Fully Automated CNC Bending Center with High Precision Bending and Up to 180 Degrees Bending Angle
User-Friendly Operation Interface
The interface is designed for simplicity, featuring excellent human-computer interaction that reduces training time and operational complexity.
Fully Automated CNC Bending Center with High Precision Bending and Up to 180 Degrees Bending Angle

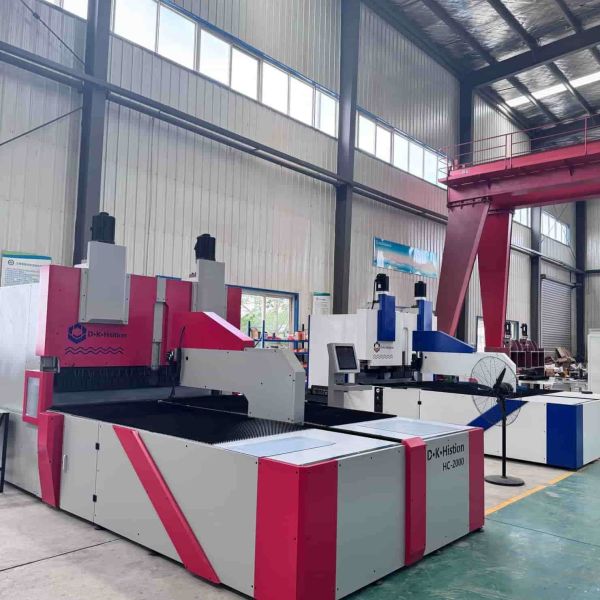

Machine Views
Fully Automated CNC Bending Center with High Precision Bending and Up to 180 Degrees Bending Angle Fully Automated CNC Bending Center with High Precision Bending and Up to 180 Degrees Bending Angle Fully Automated CNC Bending Center with High Precision Bending and Up to 180 Degrees Bending Angle Fully Automated CNC Bending Center with High Precision Bending and Up to 180 Degrees Bending Angle Fully Automated CNC Bending Center with High Precision Bending and Up to 180 Degrees Bending Angle
Frequently Asked Questions
Can you arrange samples for me?
Of course, we provide free samples according to customer requirements.
What is the warranty period for the machine?
The warranty period for the machine is one year. Lifetime maintenance and upgrade services are provided after the warranty period.
What is the MOQ of the machine?
The minimum order quantity is 1 set.
Are all the machines standard?
No, customization is available. We can manufacture non-standard machines according to customer requirements.
What products can your machines produce?
Applications include: File cabinetry, aluminum veneer wall industry, stainless steel kitchenware industry, refrigeration equipment industry, chassis and cabinet industry, laboratory construction industry, metal door industry and more.
What types of sheet materials can your machine bend?
Typically, carbon sheet, aluminum sheet, stainless sheet and galvanized sheet are available.
